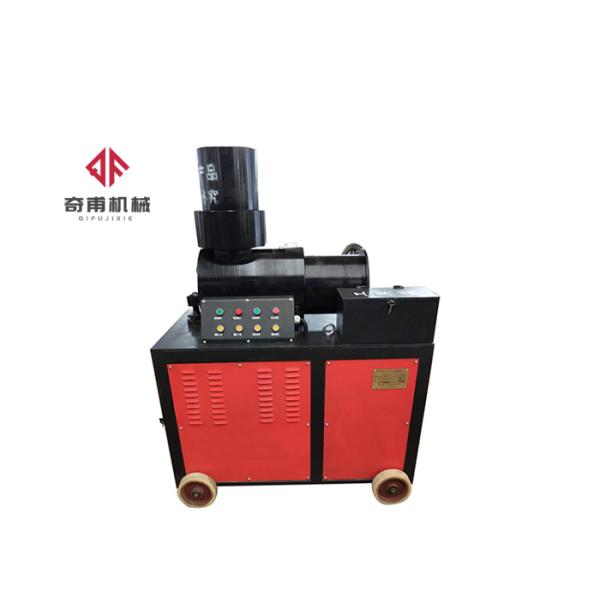

Automatic Rebar Upsetting Equipment Pressure Upsetting Machine

Description:
The automatic double-cylinder steel upsetting machine uses high pressure to make the head of the steel bar cold press and plastically deform
Increase the diameter and perform thread processing on the threads to make the effective cross-section at the threaded place larger than the base material of the steel bar to improve the quality of the joint. The joint pressure and tensile strength are higher than the base material.

This machine is suitable for the connection of steel bars in high-demand national key projects such as bridges and subways.

Technical features:

1. Open structure, simple operation, intuitive and convenient
2. With foot switch, workers can operate by hands and feet
3. The concentric tightening design has rigorous structure, long service life, good neutrality, and no head deviation
4. The head is round and plump, with high tensile strength
5. The chuck can be placed on the machine, workbench or ground, and can be moved forwards and backwards.

Features:

1. High production efficiency, 300-500 heads per level can be upset:
2. Equipment failure rate is small, non-fragile parts, low construction cost.
3. Environmental protection, safety, not affected by the environment and climate change.
4. Enlarge the cross-sectional area of the steel end by 15-20%, so that the bottom diameter of the processed thread is not less than the diameter of the base metal, and the tensile strength is fully exerted.
5. Simple operation, hydraulic electric control, no need for professional technical personnel training, 10 minutes start-up operation;

use
Professional steel cold heading machine. It is mainly used for the construction of steel bar rolling straight thread, and it is the key equipment to realize the connection of steel bar. It can process ribbed steel with a diameter of 16-32mm.

Features
The professional steel cold heading machine can complete the process from rib stripping to thread rolling at one time. The threaded full-tooth profile is processed with high dimensional accuracy and high mechanical strength. It can process straight thread and reverse thread.
The machine is easy to operate, compact and reliable, and has a unique automatic opening and closing mechanism.
Processing steel bars with a diameter range of 16-32mm.

structure
The professional steel bar cold heading machine is composed of frame, clamp, guide rail, slide plate, cycloidal pinwheel reducer, rib stripping rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit mechanism, cooling system, electrical control box, and control System and other components.
