High Strength And Rigidity Substation Steel Structures Customizable Galvanized Steel Frames
High Strength And Rigidity Substation Steel Structures Customizable Galvanized Steel Frames
Specifications
Product name :
Substation Steel Structure
Type :
Angular Tower Or Steel Pole Tower
Material :
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
Payment Terms :
TT or L/C
Delivery Time :
As agreed upon
Galvanization Standard :
EN ISO 1461,ASTM/A123 Or Equivalent
Lifetime :
50 Years
Trade Terms :
EXW,FOB,FCA,CFR,CIF,DAP Etc
Place of Origin :
China
Brand Name :
Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification :
CE,ISO
MOQ :
1ton
Price :
Need to inquiry
Packaging Details :
Wooden case,Wooden crate,Bundle
Supply Ability :
100,000 tons per year
Model Number :
Substation Steel Structures
Description

Customizable Hot-Dip Galvanized Substation Steel Structure with High Strength and Rigidity

Substation Steel Structure

We don't make "generic" models, only "customized" ones. Every customized substation is tailored to your specific needs, providing a comprehensive solution for all scenarios.

Products Description

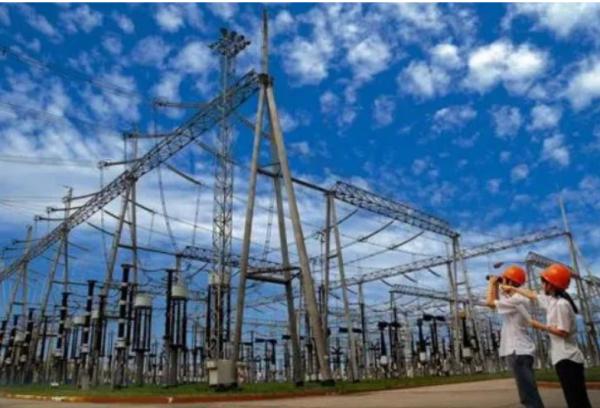

Customized Substation Steel Structure is a steel structure system designed for substations to support and protect substation equipment such as transformers, circuit breakers and switchgear. These structures are made of hot-dip galvanized steel to improve corrosion resistance and extend service life. According to the specific needs of customers, the size, shape and load-bearing capacity of product can be adjusted to meet different engineering requirements.

Advantages Compared To Traditional Concrete Frames
No. Comparison Dimensions Steel Substation Frame Concrete Substation Frame
1 Structural Performance High strength, high rigidity, strong disaster resistance sufficient rigidity but poor toughness, weak earthquake/typhoon resistance
2 Construction Cycle Short (1/3-1/2) Long (requires on-site pouring and curing)
3 Foundation Cost Low (lightweight, low foundation requirements) High (heavy weight, requires heavy foundation)
4 Flexibility Customizable, expandable, and transportable Fixed form, cannot be modified, difficult to transport
5 Maintenance Cost Low (good corrosion resistance) High (prone to cracking and rusting, requires frequent repairs)
6 Environmental Protection Recyclable, low emissions high construction waste, high carbon emissions
Products Parameter
Product name Substation Steel Structure anti-seismic magnitude eight
Application Substation stringing support and pillar materials Steel pipe, round steel, steel plate, angle steel
Design wind speed 10M/S-34M/S Icebound No ice,10MM,15MM
height Can be adjusted Suitable temperature -25°C~+45°C
Anti corrosion treatment Hot galvanizing Durable time fifty years
