Anti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold Area
Anti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold Area
Anti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold Area
Anti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold Area
Specifications
Place of Origin :
China
Brand Name :
Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification :
CE,ISO
MOQ :
1ton
Price :
Need to inquiry
Packaging Details :
Wooden case,Wooden crate,Bundle
Delivery Time :
As agreed upon
Payment Terms :
TT or L/C
Supply Ability :
100,000 tons per year
Model Number :
Transmission Line Tower
Product name :
Transmission Line Tower
Type :
Angular tower or steel pole tower
Material :
A36 / S235JR / Ст3пс、A572 Gr.50 / S355JR / 09Г2С、A572 Gr.65 / S420N / 15Г2СФ Or according to the standards provided by the customer
Payment terms :
TT or L/C
Delivery time :
As agreed upon
Galvanization standard :
EN ISO 1461,ASTM/A123 or equivalent
Lifetime :
50 years
Trade terms :
EXW,FOB,FCA,CFR,CIF,DAP etc.
Description

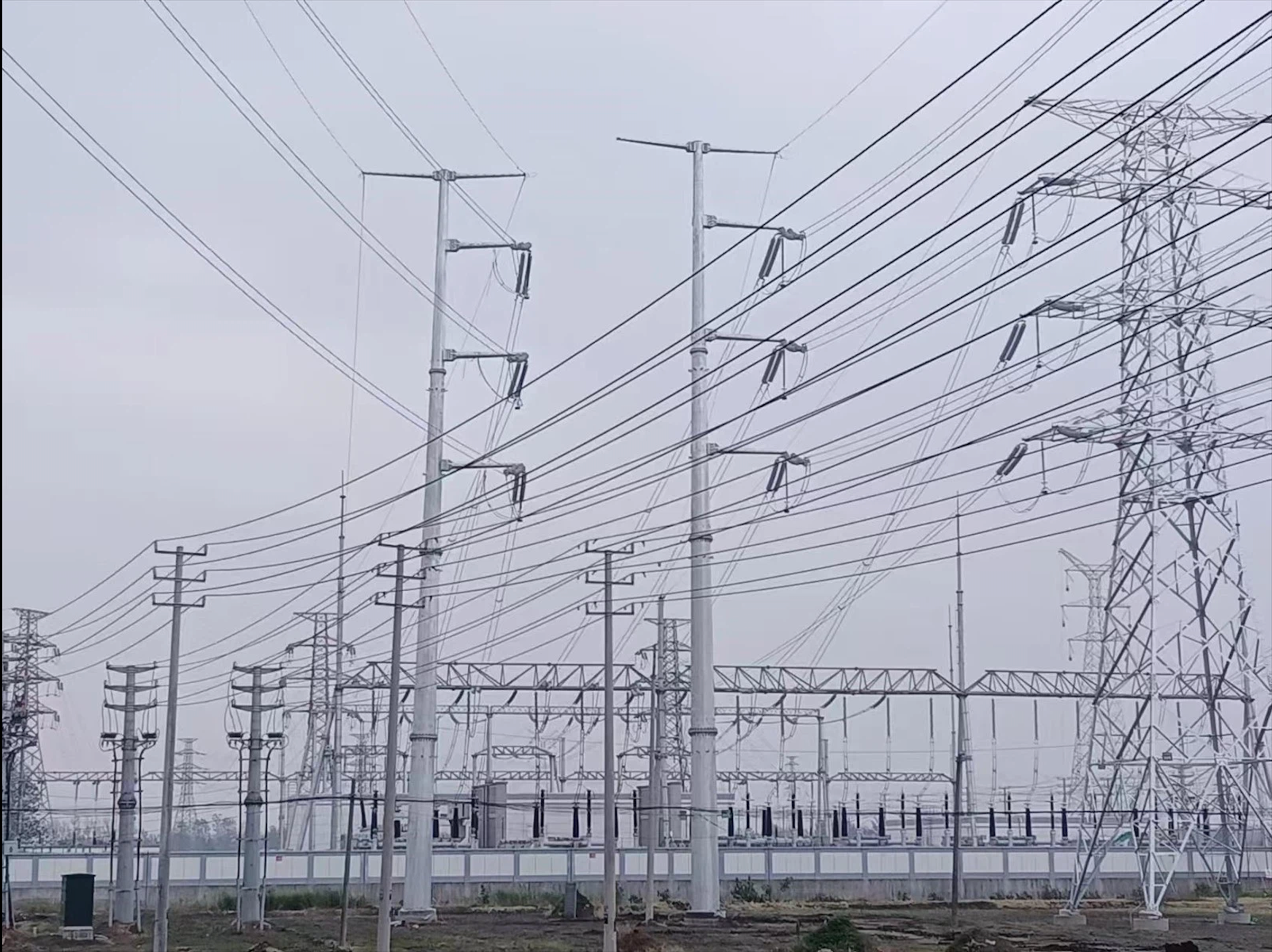

Cold Area Monopole Power Tower Constructed with Steel Tower Technology Ensuring Stable Power Transmission in Cold Regions

Cold Area Monopole Power Tower

Monopole power tower is a way of erecting a single-circuit transmission line supported by a single iron tower pole. Connection method: flange connection or plug-in connection; Advantages: Compared with multi-pole and multi-tube towers, monopole tower has simple structure, small space occupation, fast construction speed, convenient maintenance

Anti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold AreaAnti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold AreaAnti Corrosion Monopole Transmission Tower Single Circuit Power Line Tower For Cold Area

Maintenance management:
  1. Regular inspections. Regular inspections are required during operation, focusing on problems such as tower corrosion, loose connection parts, and foundation cracks.
  2. Anti-corrosion measures. Hot-dip galvanizing, spraying anti-rust paint and other anti-corrosion processes can effectively resist the corrosion risks caused by cold. Especially in areas close to water or humid areas, anti-corrosion protection should be strengthened.
  3. Deal with extreme weather. In winter, snow pressure and freezing may cause additional loads on the towers. It is necessary to monitor the snow conditions and clear the snow in time. During storms, high-altitude operations should be suspended to ensure the safety of construction and maintenance personnel.
  4. Technical upgrade and transformation As the service life of the line increases, reinforcement or replacement of components may be required. The use of new weather-resistant materials and structural optimization design can improve the overall performance of the tower and meet future power transmission needs.

For monopole power towers in cold areas, more attention should be paid to tower design, material selection, operation management and maintenance.

We have experience in supplying transmission towers in cold areas, and can better meet your needs for monpole transmission towers in cold areas.
