High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
Specifications
Grade :
Carbon Steel, Stainless Steel
Reel Weight :
500kg-4tons
Tolerance :
1%
Payment Term :
EXW,Fob,CFR,CIF
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
MOQ :
Usually One Container, May Be Negotiated by Both
Transport Package :
Standard Marine Packing
Specification :
1.0mm-120mm
Trademark :
XZL
Origin :
China
HS Code :
7312100000
Supply Ability :
200000tons/Year
Certification :
ISO, CCC, CE
Surface :
Spiral
Technique :
Normalizing, Quenching
Application :
Rope, Packaging, Netting, Manufacturing, Fencing, Construction
Alloy or Not :
Non-alloy
Standard :
BS, JIS, GB, ASTM, DIN, AISI
Samples :
US$ 1/kg 1 kg(Min.Order) | Request Sample
Customization :
Available | Customized Request
Place of Origin :
China
Price :
Negotiable
Packaging Details :
Standard Marine Packing
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment,
MOQ :
10ton
Description
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded

High Tensile Steel Strand 1860 MPa Prestressed Steel Strand 3 Wire 7 Wire Cable Wire Stranded
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
Product Name PC Strand
Main executive standards GB/T5224,ASTMA416,BS5896,JIS3536,ISO6934,EN10138 or as per the technology agreement decided
by both sides after negotiation

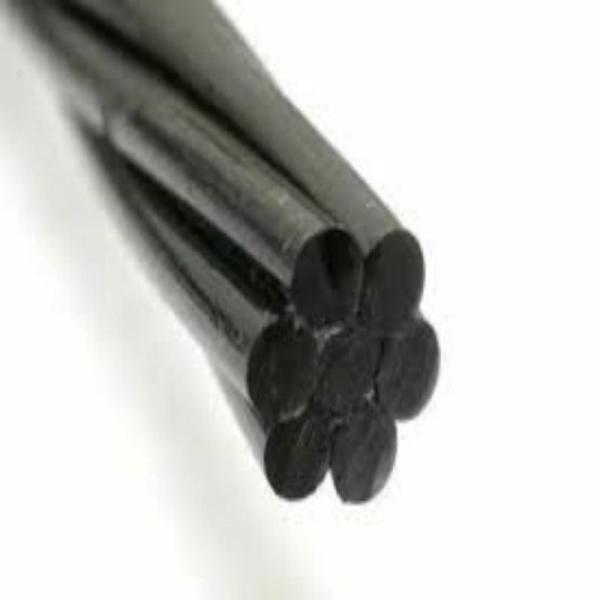

Specification 1x7 wire,1x2 wire,1x3 wire,1x19 wire
9.53mm,12.7mm,15.2mm,15.7mm,17.8mm,21.8mm
Tolerance 0.4-0.15

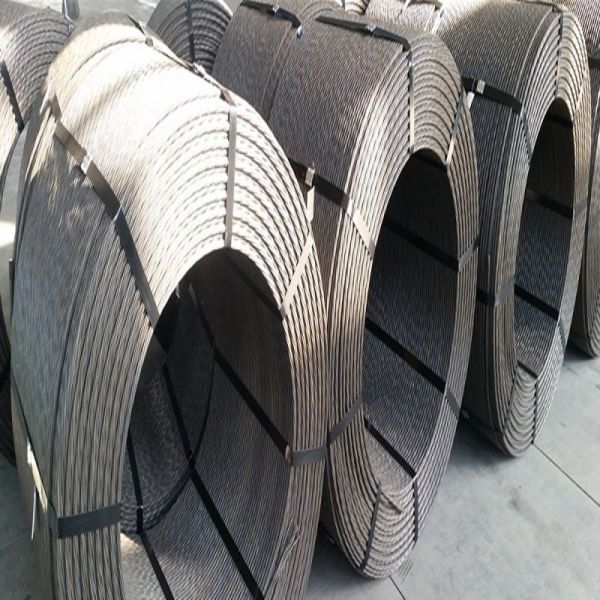

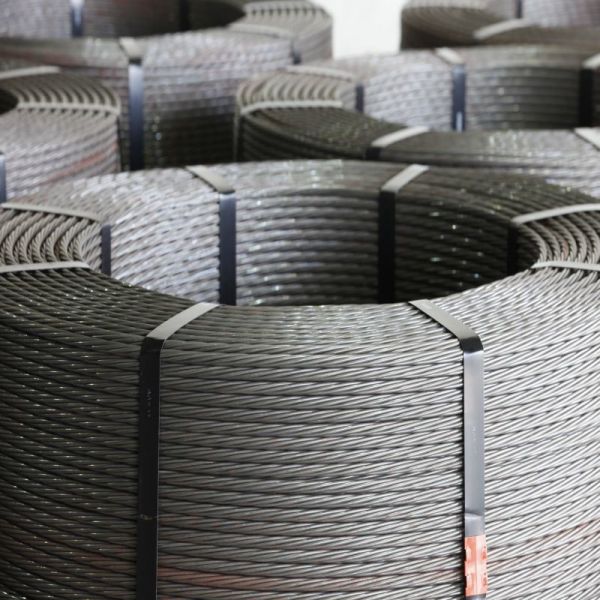

Product packaging nner diameter:760mm
Outer diameter:1400mm
Width of coil:760mm
Weight of coil:2.5-3.5 tons
Packaging steps Coils are wrapped by 8 steel strips →wrapped by waterproof cloth →wrapped by 8 steel strips (6+2)→
added with wood pallet
Application PC Strands are mainly used in prestressed concrete structure reinforcement,such as large-span bridges on
railway and highway,overhead crane beam,rock-soil anchoring project,multi-storey industrial buildings,
stadiums,coal mines,etc
Nominal Dia of Strand Number of Wires in Strands Nominal Dia of Coated Wires Weight of Strand Minimum Breaking Strength of Strand, LBS
Inch (mm) Inch (mm) Lb/1000ft (Kg/1000m) Utilities Grade High Strength Grade Extra-High Strength Grade
1/4 (6.35) 7 0.080 (2.03) 121 (180) - 4,750 6,650
9/32 (7.14) 7 0.093 (2.36) 164 (244) 4,600 6,400 8,950
5/16 (7.94) 7 0.104 (2.64) 205 (305) - 8,000 11,200
5/16 (7.94) 7 0.109 (2.77) 225 (335) 6,000 - -
3/8 (9.52) 7 0.120 (3.05) 273 (406) 11,500 10,800 15,400
7/16 (11.11) 7 0.145 (3.68) 399 (594) 18,000 14,500 20,800
1/2 (12.70) 7 0.165 (4.19) 517 (769) 25,000 18,800 26,900
1/2 (12.70) 19 0.100 (2.54) 504 (750) - 19,100 26,700
9/16 (14.29) 7 0.188 (4.78) 671 (999) - 24,500 35,000
9/16 (14.29) 19 0.113 (2.87) 637 (948) - 24,100 33,700
5/8 (15.88) 7 0.207 (5.26) 813 (1210) - 29,600 42,400
5/8 (15.88) 19 0.125 (3.18) 796 (1185) - 28,100 40,200
3/4 (19.05) 19 0.150 (3.81) 1,155 (1719) - 40,800 58,300
7/8 (22.22) 19 0.177 (4.50) 1,581 (2553) - 55,800 79,700
1 (25.40) 19 0.200 (5.08) 2,073 (3085) - 73,200 104,500
Diameter Number of wires &diameter Approx.Metallic Area Weight Minimum Breaking Load-kN
(mm) (mm) (sq.mm (kg/1000m Grade 1100 Grade 1300 Grade 1500
5 7x1.70 15.9 130 16.5 19.5 22.5
6 7x2.10 24.2 190 25.0 30.0 34.5
7 7x2.40 31.7 250 33.0 39.0 45.0
8 7x2.80 43.1 340 45.0 53.0 61.5
9 7x3.00 49.5 390 52.0 61.0 70.5
10 7x3.60 71.3 560 74.5 88.0 101.5
12 7x4.20 97.0 760 101.0 120.0 138.0
Diameter Number of wires &diameter Approx.Metallic Area Weight Minimum Breaking Load -Ibs
(Inches) (Inches) (sq.Inches) (Ilbs/1000ft) Grade 160 Grade 180 Grade 220
3/16" 7x0.065 0.02 79 3500 4000 4800
1/4" 7x0.083 0.04 129 5700 6400 7900
9/32" 7x0.095 0.05 169 7500 8500 10300
5/16" 7x0.109 0.07 223 9900 11100 13600
3/8" 7x0.120 0.08 270 12000 13500 16500
7/16" 7x0.144 0.11 389 17300 19500 23800
1/2" 7x0.165 0.15 511 22700 25500 31200
5/8" 7x0.207 0.24 813 35800 40200 49200
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire StrandedThe main uses of PC steel strands
PC steel strands are mainly used for the reinforcement of prestressed concrete structures, such as large-span railway and highway bridges, large bridges, silos, buildings, dams, floor slabs, foundations, large concrete containers, atomic reactor buildings, sports venues, airport hangers, prefabricated sections, crane beams, anchors, multi-layer industrial buildings, etc.
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire StrandedPC steel stands for "Prestressed Concrete Steel," which refers to high-strength steel wire or strands that are used in the construction of prestressed concrete structures.
In Prestressed concrete, the steel wire or strands are tensioned before the concrete is poured, creating compressive forces within the concrete that offset the tensile stresses that the structure may experience during use.

High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
We will test the goods before delivery, and also accept the quality inspection of a third party ppointed by the customer.
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
Our logistics department is always updated with the special packaging requirements for export consignments.
Our logistics has a good tracking system. You will be kept informed of the shipping status of your shipment until you pick it up.
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
Qingdao Xinzhonglian Steel Co., Ltd. is located in Qingdao,China. We are a manufacturer and exporter specialized in the research, production, retail, wholesale, packaging, after-sales of metal materials. We have been engaged in export trade for more than 20 years and have rich experience in this field.

The company adheres to the business philosophy of "service creates value, integrity creates brand", and the corporate spirit of "pioneering and enterprising, tenacious and hardworking, seeking truth and innovation, and win-win cooperation". Based on integrity and with the purpose of providing good professional services, we use our sincere and rigorous management and professional dedication to provide excellent services and high-quality products to our esteemed domestic and
foreign customers in terms of quality, price, and other aspects.

Our major products including Carbon Steel Plate, Carbon Steel Coil, Carbon Steel Pipe, Carbon Steel Bar, Stainless steel plate,Stainless steel coil , Stainless steel pipe, color coated coil, color tile, galvanized sheet, galvanized coil, Galvanized roofing, galvanized zinc,etc. Relying on various products, large inventory, high quality, low price, short delivery time and good after-sales service, and many other competitive advantages, our products are well sold in China and exported to many countries, such as South Korea, Japan, Russia, Germany, Britain, Austria, Czech Republic, Hungary, Netherlands, Slovenia, Bulgaria, Egypt, Saudi Arabia, Iran, Kuwait, UAE, Turkey, Israel, Syria, Lebanon, Jordan, Yemen, Cyprus, Philippines, Vietnam, and Malaysia...
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire StrandedQingdao Xinzhonglian Steel Co., Ltd. company always insist on the tenet and business spirit of "survive by quality, develop by reputation", and take quality as the foundation and honesty as the first. At the same time, Xinzhonglian Steel also adheres to the concept of a win-win situation, focusing on customers, and looks forward to becoming your reliable partner.
High Tensile Steel Strand 1860 MPa for Prestressed Concrete 3 Wire 7 Wire Cable Wire Stranded
