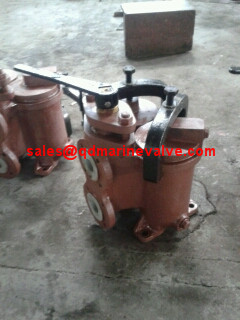

CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
Specifications
Place of Origin :
Qingdao
Brand Name :
CXD &OEM
Certification :
BV/ABS/CCS/GL/DNV
Model Number :
JIS F7224
MOQ :
1
Packaging Details :
exprot packing
Delivery Time :
1-15 days
Payment Terms :
T/T ,LC/
Description

JIS F 7224 Marine Duplex Oil Strainer

JIS F7224 Small Duplex Oil Stainer

Specifications

JIS F7224 Duplex Oil Strainers
1.JIS F 7203/7208/7209/7224/7121 Standard
2.Pressure:5K 10K
3.Material:FC200
4.Quick Reply

JIS F 7224 Marine Duplex Oil Strainer :

1.Standard: JIS F 7203/7208/7209/7224/7121

2.Pressure: 5K, 10K
3.Material: FC200.
4.Process: Sand casting

5.Full moulds.

6.Strict air pressure testing.

7.Complete in specifications

Marine Strainer Types:

1)Marine simplex oil strainers: JIS F 7209 standard.

2)Marine duplex oil strainers(H type): JIS F 7208 standard.

3)Marine small size duplex oil strainers: JIS F 7224 standard.

4)Marine can water filters: JIS F 7121 standard.

5)Marine mud Boxs: JIS F 7203 standard.

The specifications of the strainers:

1).Pressure: 5K 10K

2).Standard: JIS Standard(with the full moulds).

3).DN:20A-300A

4).Use: Shipyard.

5).Medium: Water, Oil. others.

CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224
CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224

JIS Marine Strainer Types:

1)Marine simplex oil strainers: JIS F 7209 standard.

2)Marine duplex oil strainers(H type): JIS F 7208 standard.

3)Marine small size duplex oil strainers: JIS F 7224 standard.

4)Marine can water filters: JIS F 7121 standard.

5)Marine mud Boxs: JIS F 7203 standard.

The specifications of the strainers:

JIS F 7208(H Type)

Size Unit Weight/kg Size Unit Weight/kg
20A 21.40 50A 52.10
25A 21.40 65A 86.50
32A 35.60 80A 122.00
40A 35.60 100A 197.00

JIS F 7224(U Type)

Size Unit Weight/kg Size Unit Weight/kg
20A 16.00 50A 74.10
25A 16.00 65A 115.00
32A 34.50 80A 172.00
40A 34.50 100A 243.40

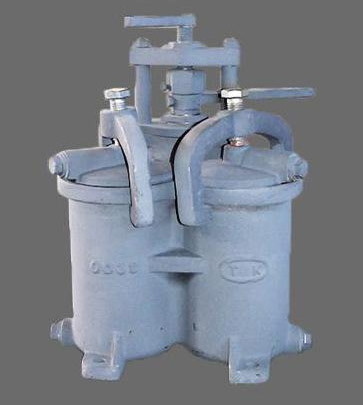

JIS F7224 C. I. Small Duplex Oil Stainer

CAST IRON JIS F7224 Small Duplex Oil Stainer JIS F7224

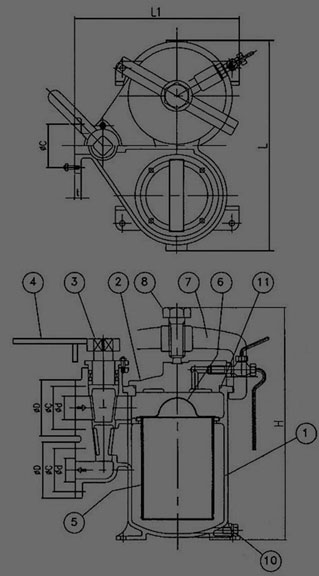

Demensions [Unit: mm]

Size Фd ФD ФC n-Th t L L1 H
5K 25A 25 78 75 4-M10 14 196 167 250
5K 32A 32 95 90 4-M12 16 246 211 295
5K 40A 40 120 95 4-M12 16 280 241 330

Material

No. Component Material
1 Body Cast Iron
2 Cover Cast Iron
3 Cock Plug Bronze
4 Handle Steel/Stainless Steel
5 Filter Cylinder Steel/Stainless Steel
6 Strainer Handle Steel
7 Cover Yoke Ductile Iron/Steel
8 Yoke Bolt Steel
9 Air Puger Cock Bronze
10 Drain Plug Brass
11 O-Ring Rubber

Test Pressure (MPa)

Rating JIS 5K
Hydrostatic press test (Shell) 0.58
Hydrostatic press test (Cock) 0.43
