5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306
Specifications
Place of Origin :
Qingdao
Brand Name :
CXD &OEM
Certification :
BV/ABS/CCS/GL/DNV
Model Number :
F7306
Payment Terms :
T/T ,LC/
Supply Aility :
1000
Minimum Oeder Quantity :
10
MOQ :
1
Price :
100
Packaging Details :
exprot packing
Delivery Time :
1-15 days
Description

Marine Cast Iron Angle Valve JIS F7306 5K

Marine Cast Iron Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7306-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Main Size List(mm):

IMPA Code

Size

L1

Flange diam. (D)

Pitch (C)

No of Bolt Hole

h

t

D2

H

Weight

750216

50

100

130

105

4

15

16

160

240

12.9

750217

65

115

155

130

4

15

18

180

255

18.2

750218

80

130

180

145

4

19

18

180

265

23.4

750219

100

150

200

165

8

19

20

224

310

33.7

750220

125

170

235

200

8

19

20

250

330

46.2

750221

150

190

265

230

8

19

22

280

380

63.4

750222

200

220

320

280

8

23

24

315

450

105

750223

250

275

385

345

12

23

26

355

540

176

750224

300

310

430

390

12

23

28

400

610

243

750225

350

360

480

435

12

25

30

500

690

335

750225

400

395

540

495

16

25

30

630

770

459

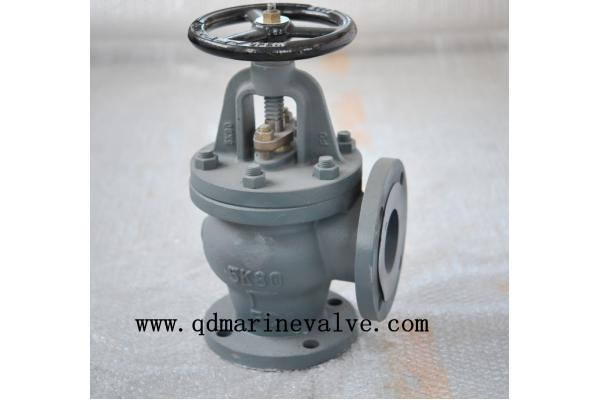

Photos show of Marine Cast Iron Angle Valve JIS F7306 5K:
5K Marine Cast iron angle valve JIS F7306
5K Marine Cast iron angle valve JIS F7306


Kind Remind:
If you are interested in this JIS Standard angle valve, please detail your requirements while you are sending your inquiry, the more, the better, so that we can give you the best recommendation.
Our service & cooperation:
1. Pre-sales service:
► Sales person, project manager, technology engineer, accountant staff
► Professional responsing-team: would be very fastly and exactly to send your offers
2. Online/sale service
►Super and solid quality
► quick delivery
► Standard export package or as your demand
3. After-sales service
► Repairing and maintenance if any problem occur in warranty
► Any feedback of valves can be told us, and we will try our best to support
4. Other cooperation service
►Technology knowledge share
► Factory building advising
►High quality, competitive price and quick delivery
We insist that quality is the lifeline and honesty is the foundation
