Automatic tank gauging system for petrol station management

• Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).
• SYW-A magnetostrictive probe installed in the tank, with magnetostrictive technology,can accurately measure the fuel level ,water level,ullage and multiple temperature.
• Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions

SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet

SYW-A Magnetostrictive Probe

The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

Probe Performance

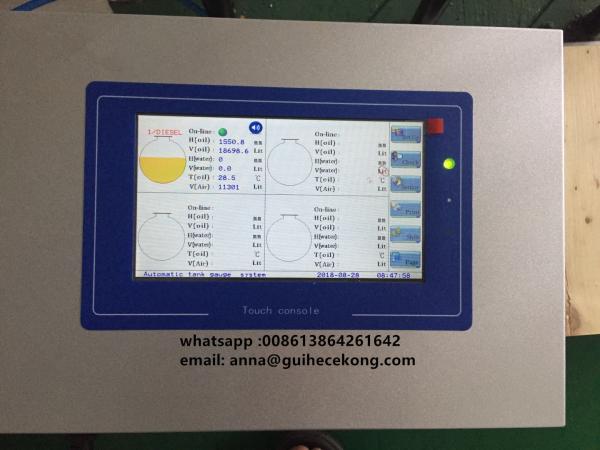

TCM-1 Touch Control Console

It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

It can display product level, water level, temperature, volume, ullage.

It enjoys a tank tilt compensation function.

It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

It features an audible and visual alarm function with front panel.

It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.

It enjoys a record function, all information are stored in memory for future queries

There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

It can calculate volume of product by multipoint,
