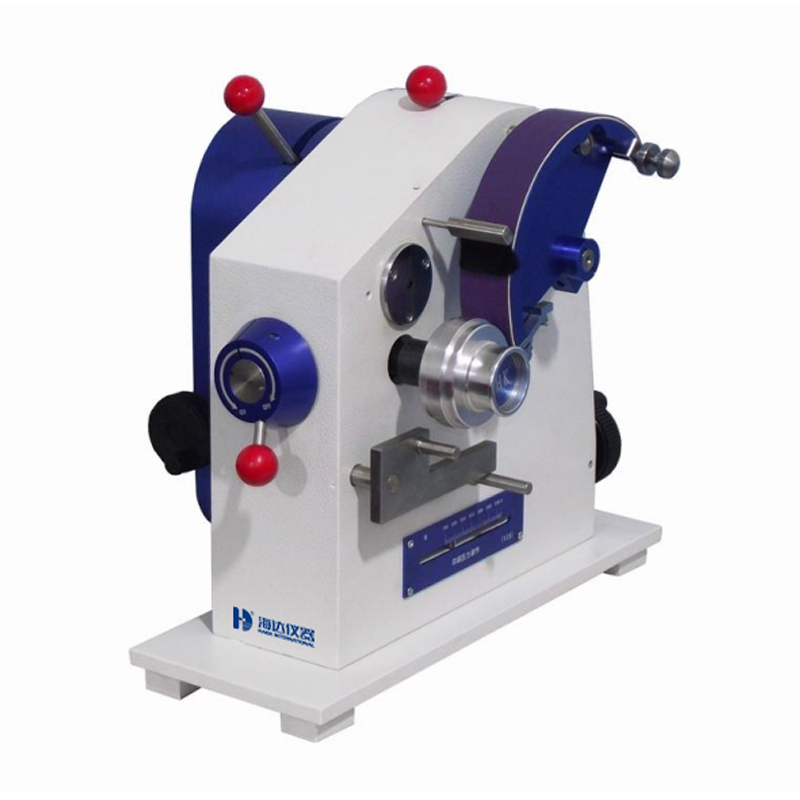

HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
Specifications
Type :
Ink Printing Test machine
Brand Name :
haida
Place of Origin :
GUA
Accuracy :
0.1s, 0.1s
customized support :
OEM, ODM
power :
220V±10%, 50Hz;90W
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Logo/graphic design :
Hot Stamping, SCREEN PRINTING
Test area :
10±0.05cm²
Measurement range :
(0.2~3.5)m/s
Pendulum elevation angle :
165°
Printing plate :
65mm*10mm, 65mm*20mm
Pendulum speed :
(20~125)cm/s
Printing pressure :
0~700N
MOQ :
1
Description
Product Description
HD Ink Printing Test Machine Printing Surface Strength Tester

5053-HD

Ink Absorbency Tester
A printing surface strength tester is a testing device used to measure the surface strength of paper, cardboard or other printed materials. It evaluates the durability and quality of a print by applying force or pressure to the surface of the printed material and measuring the force it can withstand before cracking or deforming.

DESIGN STANDATD GB/T 22365-2008, ISO 3782, ISO 3783,QB/T 1020
Specification
Item
Description
Test area
10±0.05cm²
Accuracy
0.1s
Measurement range
(0.2~3.5)m/s
Pendulum elevation angle
165°
Printing plate
Ø65mm*10mm, Ø65mm*20mm
Pendulum speed
(20～125)cm/s
Printing pressure
0~700N
Fan angle
155°
Radius
85mm
width: 35mm
Rubber pad specifications
320*35*1.5mm(L*W*H)
Paper pad specifications
305*35*1.5mm(L*W*H)
Dimension
420*260*355mm(L*W*H)
Company Profile
Our company is headquartered in Taichung. As a comprehensive manufacturer of precision detecting instruments, our company has contributed to the development of global industry for a long time. In order to better serve clients in mainland China, our company set up factories and offices in Dongguan in the early 21st century. Our products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, DIN, BS and other domestic and international standards. With advanced processing equipment and exquisite manufacturing technology, our company focuses on human resource development and maintenance and cultivates a strong R&D and manufacturing team, thus providing a strong guarantee for the manufacture of high-quality products. We have always insisted on the principle of "quality first, sincere service". According to customers' needs, we constantly challenge ourselves to be excellent and promote the development of our company. We wish to cooperate with customers all over the world based on mutual integrity. Company Services: Adhering to the business philosophy of "Quality comes from precision; Quality creates the future", all employees serve each client actively and conscientiously in order to meet full customer satisfaction.
HD Ink Printing Test Machine Printing Surface Strength Tester
HD Ink Printing Test Machine Printing Surface Strength Tester
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
HD Ink Printing Test Machine Printing Surface Strength Tester
FAQ
1. who are we?
We are based in Giangdong, China, start from 2007,sell to Domestic Market(50.00%),South Asia(17.00%),North America(11.00%),South America(5.00%),Southeast Asia(5.00%),Africa(3.00%),Eastern Europe(3.00%),Mid East(2.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Eastern Asia(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tensile Test Machine / Environmental Test Chamber / Paper & Package Test Machine / Furniture Test Machine

4. why should you buy from us not from other suppliers?
Haida, which specializes in precision test equipment and nominated many famous enterprise suppliers, is a gobal manufacturer. Our Company is a professional produce and export test equipment for more than 16 years.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
