Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Furniture Formaldehyde Content Testing Machine VOC Test Chamber
Specifications
Brand Name :
HAIDA
Model Number :
HD-F801-1
Certification :
ISO9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside
Inner volume :
(1.0±0.02)m³
Test temperature range :
(10—40)℃, accuracy:±0.5℃, Resolution 0.1℃, Adjustable
test humidity adjustable range :
(30—80)%, accuracy:±3%, Resolution 0.1%, Adjustable
Air exchange :
(0.1—2)m/s, accuracy:±0.05 m/s, Adjustable
Noise :
less than 60dB
Out dimension (W*D*H) :
1630 x 1200 x 1850mm
Description

VOC Test Chamber


Description:
VOC Test Chamber is used to test VOC (volatile organic compound) emission of various wood-based panel, composite wood flooring, carpet, carpet padding, and other interior decoration materials, also other building materials under constant temperature humidity.

Executive standard:
ISO 16000-9
EN 16516


Standard Parameters:

Model HD-F801-1
Inner dimension(W*D*H) (1±0.02)m3
External dimension(W*D*H) 1230*2150*2020mm(W*D*H)
Test temperature range (15- 40)℃ (deviation: ±0.5℃, Resolution 0.1℃) Adjustable
Humidity range (30- 80)% R.H. (accuracy:±3%, Resolution 0.1%) Adjustable
Background levels Formaldehyde≤0.006mg/m³
TVOC≤0.02 mg/m³
Single VOC≤0.002 mg/m³
Air Velocity 0.1- 2m/s, Adjustable
Air replacement rate 0.5/h
Loading factor 0.4~1.8(m2/m3)
Flowmeter Electronic air flow meter
Leakproofness 1KPa relative pressure, leakage rate＜10-3×1m³/min, import and export air differ＜1%

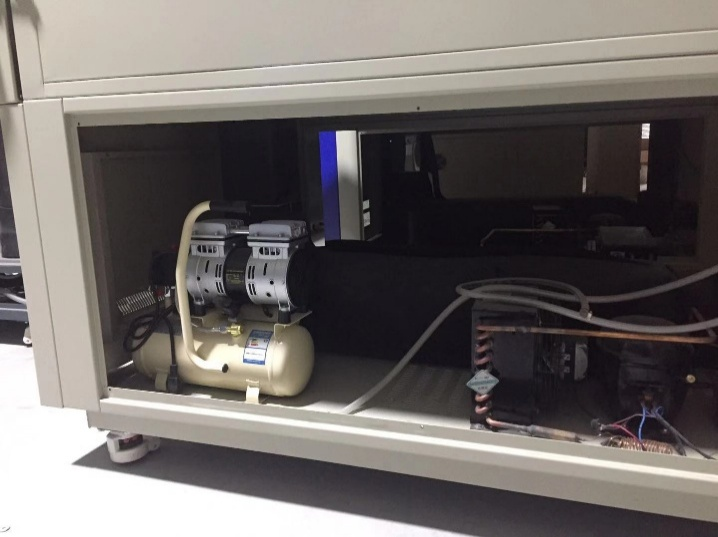

Cooling system Aspero refrigerating compressor
Air supply system Oil-free air compressor, cold dryer
Adiabaticity The inner walls and doors of chamber shall have effective thermal insulation
Material Chamber using Jacket structure design
Two layers of stainless steel inner compartment
The middle air layer
The inner compartment with mirror stainless steel
Don’t produce and absorb formaldehyde and VOC
Air collector Collector speed: 0.25L/min ~ 2.5L/min, accuracy:±5%
Collector time: 99 hours adjustable
Equipped with sampling tube, absorption bottle, gas sampler
Power Three-phase, AC380V,50Hz
Standard Test Chamber, sampling tube, absorption bottle

Furniture Formaldehyde Content Testing Machine VOC Test Chamber

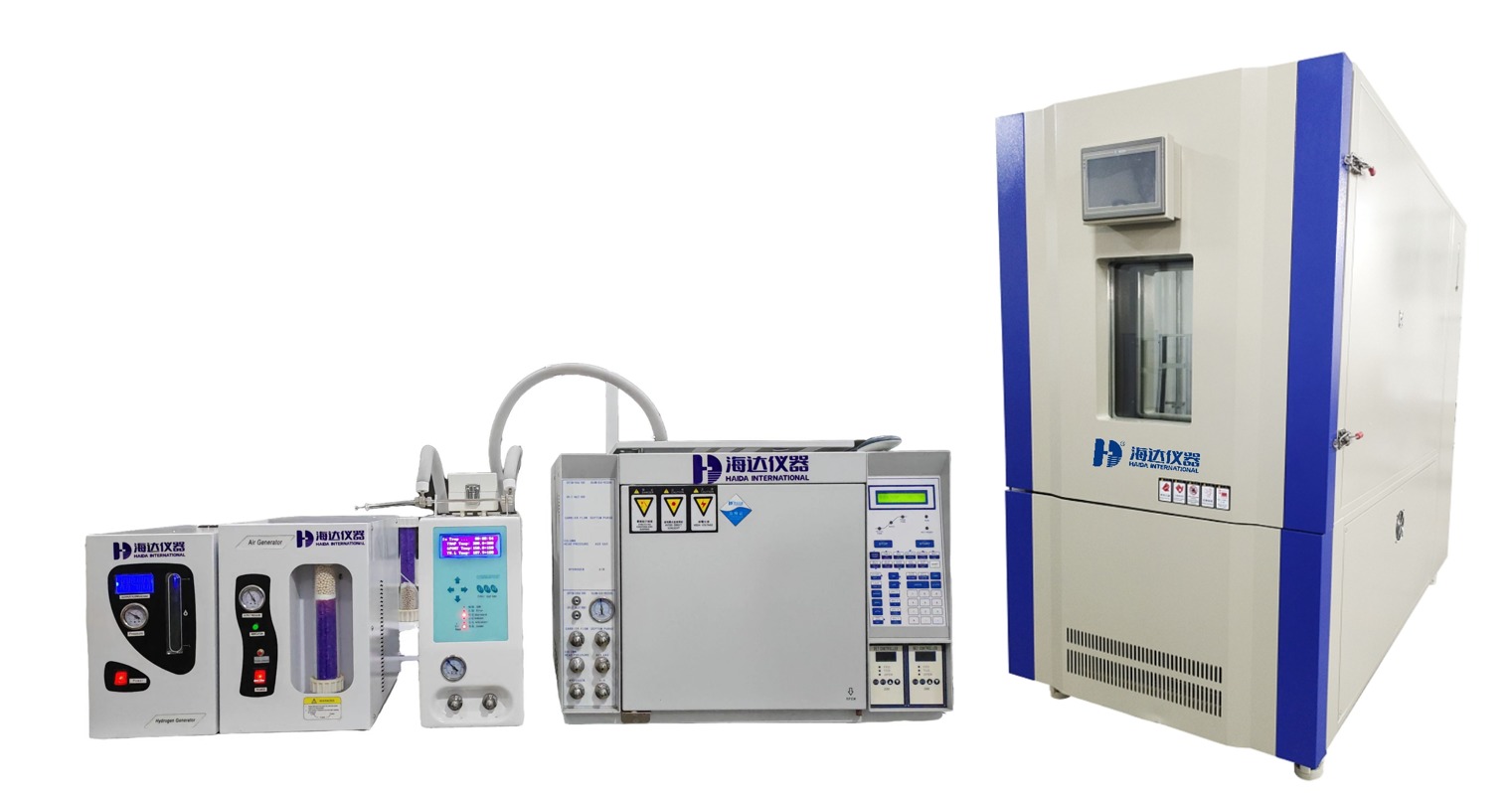

Configuration list:
1.Standard: computer, sampling tube, absorption bottle, gas sampler;
2.Optional: spectrophotometer, water bath, medicament, glass apparatus, standard solution, Balance.

About Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Furniture Formaldehyde Content Testing Machine VOC Test Chamber

Furniture Formaldehyde Content Testing Machine VOC Test Chamber

Furniture Formaldehyde Content Testing Machine VOC Test Chamber

Furniture Formaldehyde Content Testing Machine VOC Test Chamber

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
