HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
HD-LDR-II Thermal Conductivity Tester Laser Flash Method
Specifications
Brand Name :
HAIDA
Model Number :
HD-60082
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test range :
0.005-300W/(m*K)
Test mode A :
Room temperature
Test mode B :
RT~120℃ (Required other temp. Control device)
Probe diameter A :
7.5 mm
Probe diameter B :
15 mm
Resolution :
±3%
Repeatability error :
≤3%
Test time :
5~160 sec
Power :
AC 220V
External dimension(W*H*D) :
50*41*20 cm
Description

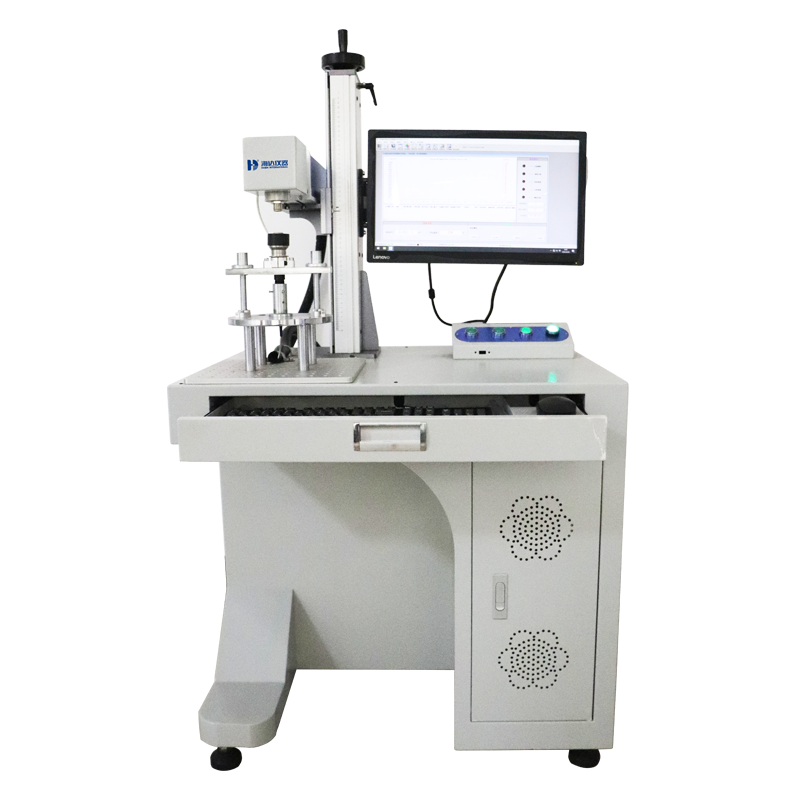

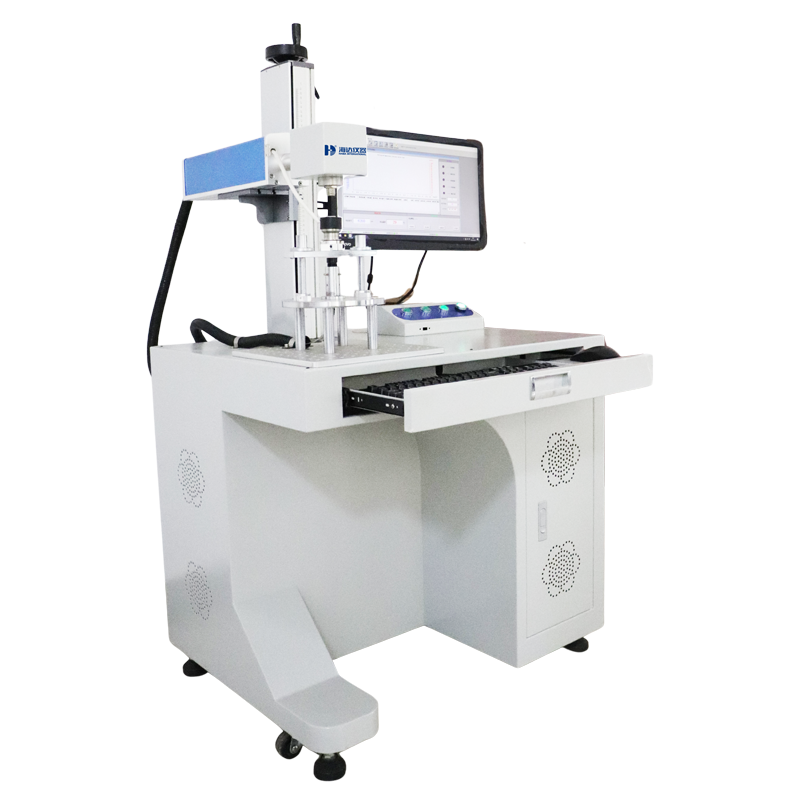

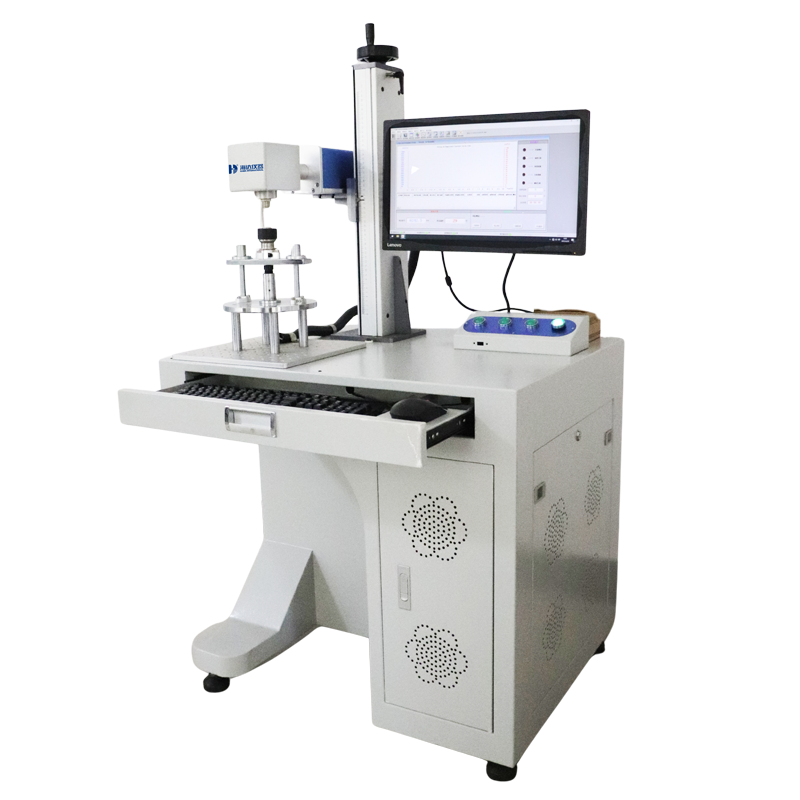

HD-LDR-II Thermal Conductivity Tester (Laser Flash Method)

Description:

This instrument is suitable for measuring the thermal diffusivity and thermal conductivity of high thermal conductivity solid materials, such as metals, graphite, etc., in accordance with the national standard GB/T 22588-2008 "Flash Method for Measuring Thermal Diffusivity or Thermal Conductivity" and ASTM E 1461--2001 "Flash Method for Determining Thermal Diffusivity Test Method". Test principle: Thin samples are irradiated by high-intensity short-time energy pulses. The front side of the sample absorbs the pulse energy to increase the back temperature. The back temperature change is recorded. The time required for the back temperature of the sample to rise to half of the maximum value after receiving the light pulse irradiation (also called the half-heating time) is used to quickly calculate its thermal diffusivity α and thermal conductivity l using a computer through a special mathematical model. Our company's transient laser method thermal conductivity tester is suitable for testing high thermal conductivity materials such as metals, graphite, graphene, silicon carbide, etc. It has the advantages of fast measurement speed and accurate measurement results. It has a high cost-effectiveness and meets the production, quality inspection, and research and development needs of related industries.

HD-LDR-II Thermal Conductivity Tester Laser Flash Method

Technical Parameters

tem
Parameters
Thermal conductivity measurement range
0.1~2000w/m.k, resolution: 0.1w/m.k
Sample size
Φ12×(0.1~5)mm, square=10x10mm, thickness 1~3mm
Laser source power
200W adjustable
Test accuracy
±3%
Repeatability
Deviation between two measurements <±3%
Testing results
The computer can simultaneously calculate multiple thermal parameters such as thermal diffusion coefficient (thermal
conductivity), specific heat capacity, etc.
Control mode

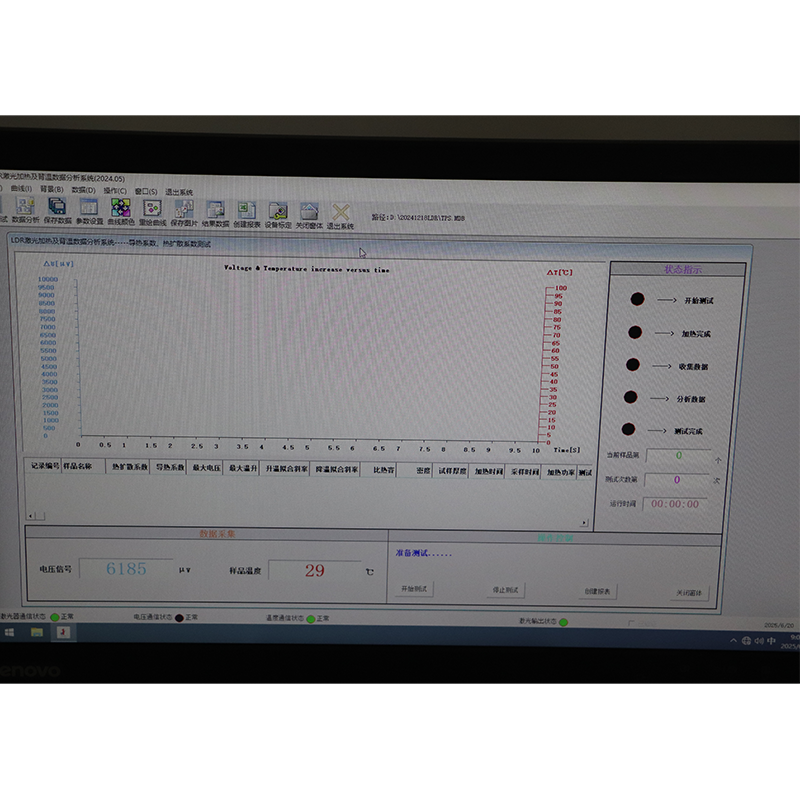

Can communicate with general computers, use fully automatic test software, quickly and accurately analyze the test process
parameters and output reports for samples
Power
1∮ AC 220V 50HZ 500W

ABOUT HAIDA

HD-LDR-II Thermal Conductivity Tester Laser Flash Method

HD-LDR-II Thermal Conductivity Tester Laser Flash Method

HD-LDR-II Thermal Conductivity Tester Laser Flash Method

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
