Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Haida DRE-III Thermal Conductivity Tester HotDisk Method
Specifications
Brand Name :
HAIDA
Model Number :
HD-60090
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test range :
0.005-300W/(m*K)
Test mode A :
Room temperature
Test mode B :
RT~120℃ (Required other temp. Control device)
Probe diameter A :
7.5 mm
Probe diameter B :
15 mm
Resolution :
±3%
Repeatability error :
≤3%
Test time :
5~160 sec
Power :
AC 220V
External dimension(W*H*D) :
50*41*20 cm
Description

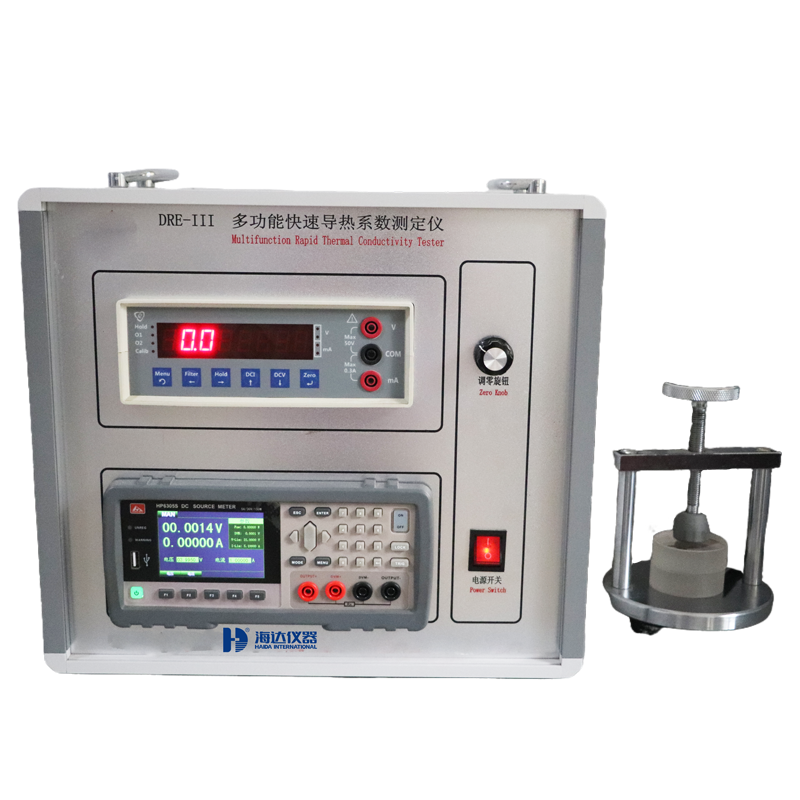

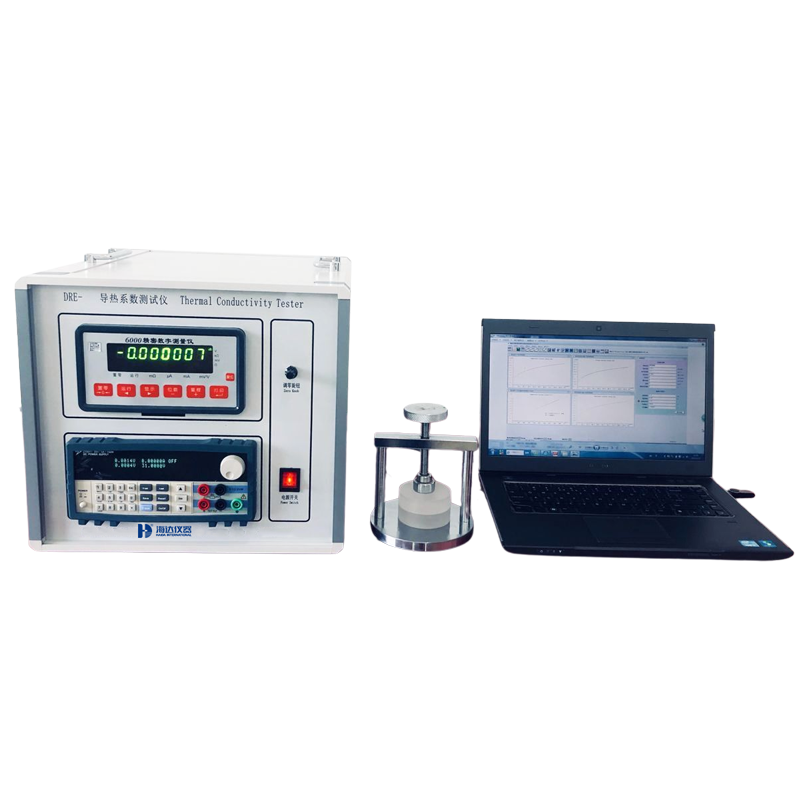

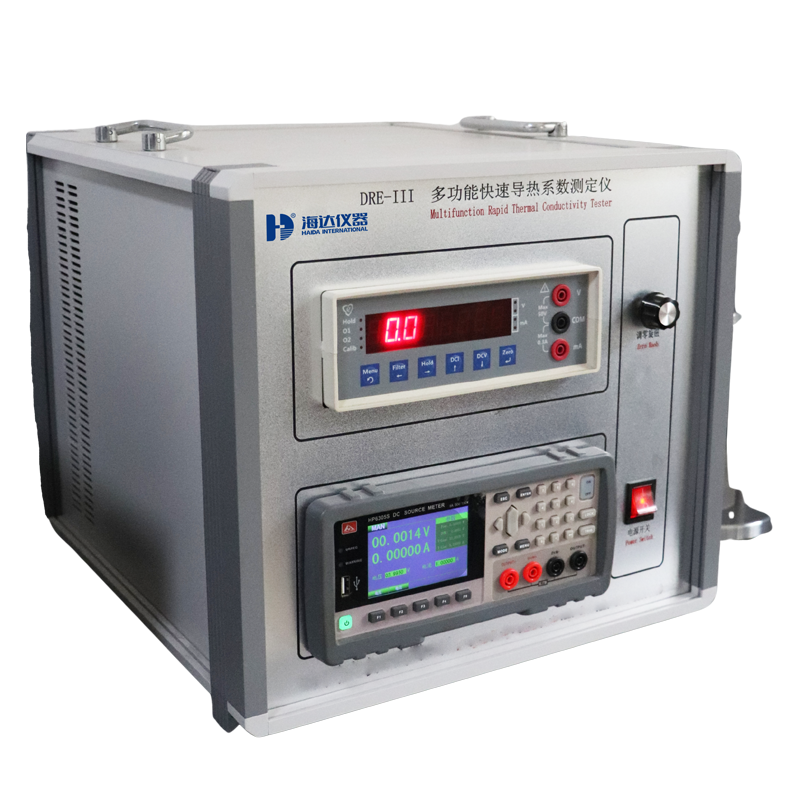

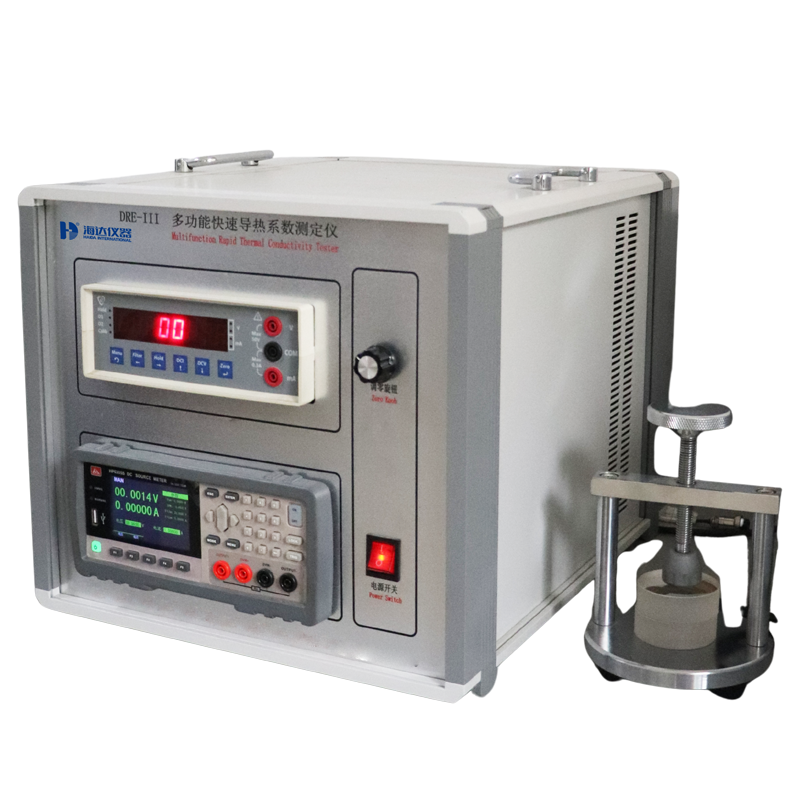

HD-DRE-III Thermal Conductivity Tester (Hot Disk Method)

Description:

This instrument adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe.

The advantages of this instrument are:

(1) Directly measure heat propagation, which can save a lot of time;

(2) It will not be affected by contact thermal resistance like the static method;

(3) No special sample preparation is required, and only a relatively flat sample surface is required for solid materials.

Different types of materials use different test schemes and calculation mathematical models, which have the advantages of fast measurement speed, wide application range and the ability to successfully avoid the influence of natural convection during the experiment. It has the advantages of a wide range of actual test materials, a wide range of thermal conductivity, simple sample processing and fast test speed. It is currently a more popular test method. Test materials: thermal conductivity, thermal diffusivity (thermal diffusion coefficient), specific heat, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, geotechnical, rock, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haida DRE-III Thermal Conductivity Tester HotDisk Method

Technical Parameters

Item
Parameters
Thermal conductivity range
0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient (thermal conductivity) range
0.1~100 m2/s
Heat storage coefficient range
0.1~30 w/(m2.k)
Specific heat capacity range
0.1~5 kJ/(kg.℃)
Thermal resistance range
0.5~0.000005 mm2.k/w
Temperature measurement accuracy
≤0.0001℃
Relative measurement error
≤3%
Repeatability error
≤3%
Test time
1~120 seconds
Sample test environment temperature range
Room temperature
(Various high and low temperature control bath (-40~250℃) or test states under vacuum can be selected according to customer
requirements)
Probe configuration
Standard configuration: Φ15mm (temperature resistance -40~150℃)
Various sample tests

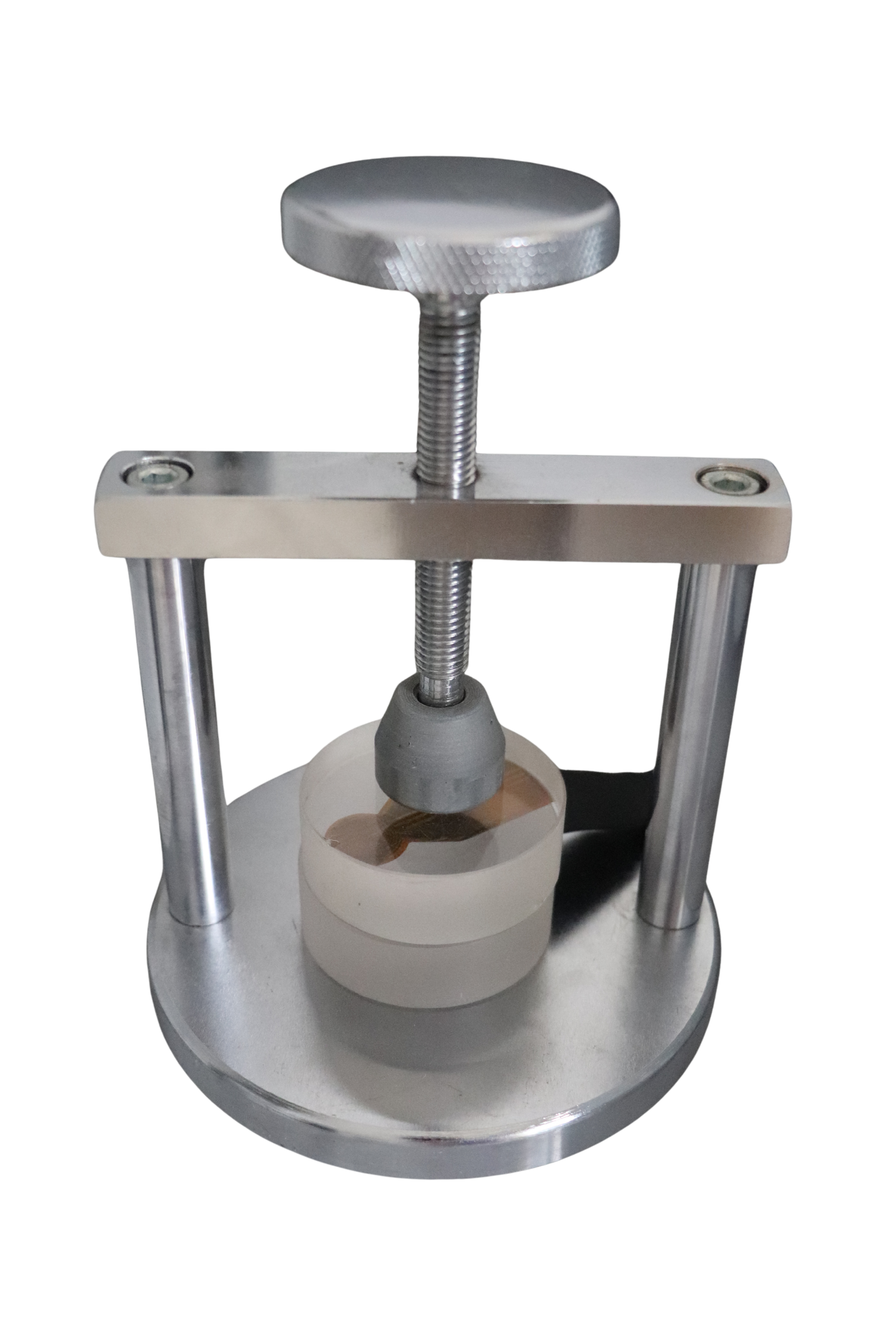

a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample
surface is required, and a special sample clamping device is provided.
b. No special requirements for powder, paste, or liquid substances, and a special sample test box is provided.
c. For thinner materials (thickness 0.01~1mm), special test plans and mathematical models are used for testing.
d. For high-conductivity materials (100~500W), special test plans and mathematical models are used for testing.
e. For thermal insulation materials (0.010~0.050W), special test plans and mathematical models are used for testing.
parameters and output reports for samples.
f. Equipped with a uniaxial anisotropic test mode.
Control mode
By computer & software
Power
AC 220V±10%, 50/60 Hz, 500W
