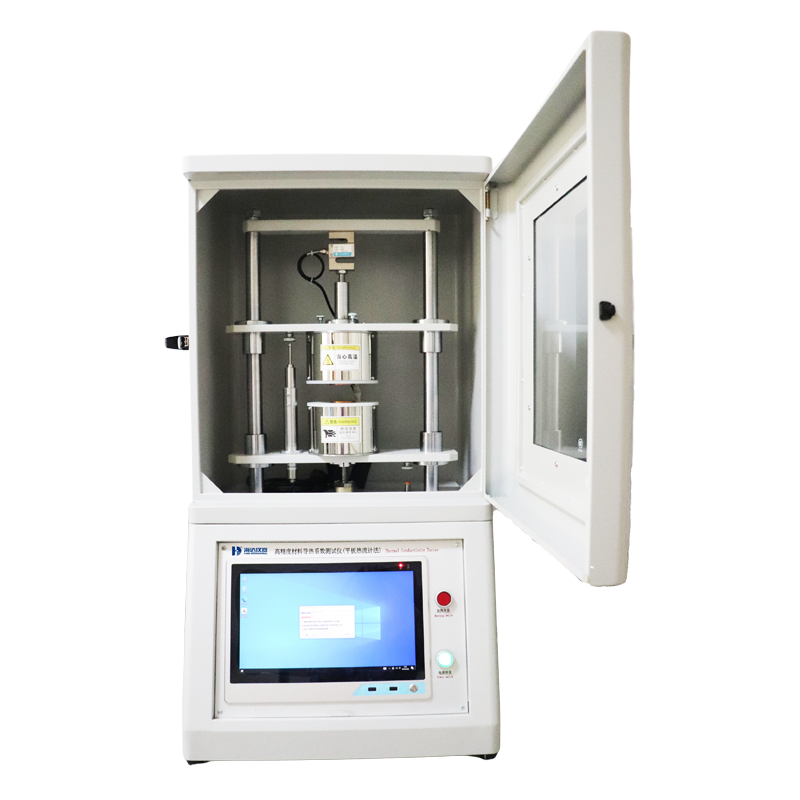

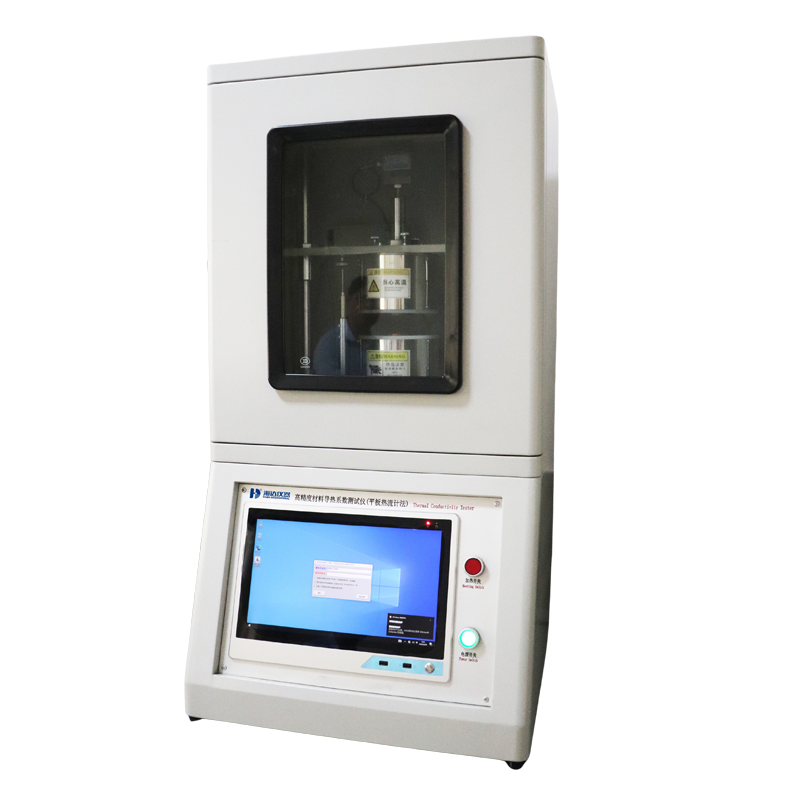

Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester
Specifications
Brand Name :
HAIDA
Model Number :
HD-60086
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test range :
0.005-300W/(m*K)
Test mode A :
Room temperature
Test mode B :
RT~120℃ (Required other temp. Control device)
Probe diameter A :
7.5 mm
Probe diameter B :
15 mm
Resolution :
±3%
Repeatability error :
≤3%
Test time :
5~160 sec
Power :
AC 220V
External dimension(W*H*D) :
50*41*20 cm
Description

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

Description:

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report. The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

Haida Thermal Conductivity Tester Flat Plate Thermofluidometer Method Surface Temperature Tester

Technical Parameters

Item
Parameters
Thermal conductivity range
0.0001 ~ 1W / mk, can be measured accurately to 0.1mw / mk
0.001 ~ 300W / mk. computer automatically switch range
Measuring accuracy
1%
Specimen size
50*50 ~ 150*150, 150*150 ~ 300*300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state
Can test solid material, powder material
Measuring time
15~20 min
Hot surface temperature range
RT~ 99.9 ℃ (standard configuration), RT ~ 299.9 ℃, RT ~ 499.9 ℃ optional
Hot surface temperature control
Plate heater, bi-directional SCR control, temperature control accuracy 0.1℃
Cold surface temperature range
0 ~ 99.9 ℃ (standard configuration), -10 ~ 99.9 ℃, according to user requirements to determine the lower temperature
Cold surface temperature control
Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable),
temperature control accuracy of 0.1 ℃
Specimen clamping pressure range
0 ~ 1000N, resolution 0.1N
Sample thickness range
Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter
Imported original heat flow meter
Data storage
Computerized automatic testing and storage printing and storage of experimental data
Machine dimension
(L*W*H)550*450*1500mm
Machine weight
Approx. 100KG
Water bath dimension
(L*W*H)300*350*530mm
Water bath weight
Approx. 35KG
Power
1∮ AC 220V 1KW
Standards
GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664
