HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments
Specifications
Brand Name :
HAIDA
Model Number :
5079-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Capacity :
500kg, imported load cell
Load resolution :
1/250,000
Load Precision :
Within ± 0.5%
Motor :
400W Panasonic servo motor
Test Speed :
0.1-500mm/min adjustable
Dimensions :
(L*W*H)790 x 610 x 1100mm
Weight :
Approx. 170 kg
Power :
1∮, 220V, 500W
Description

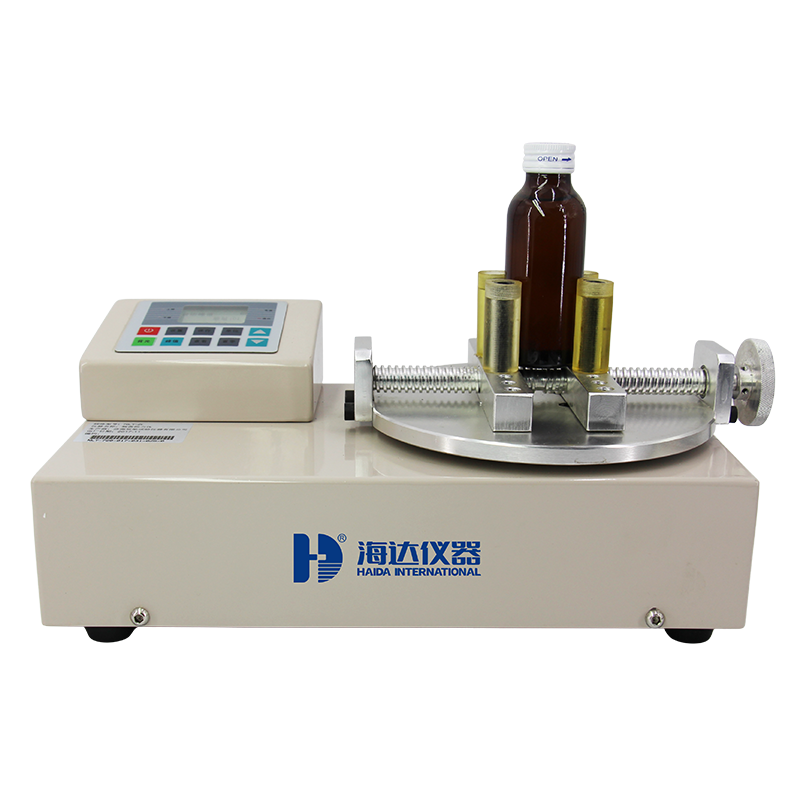

Bottle Capping Torque Tester

Main Feature:

1. Microcomputer control, LCD liquid crystal display;

2. The test data is continuously collected, and the peak value is automatically maintained;

3. Dual mode design of locking force and opening force;

4. The standard unit of test results does not require manual conversion;

5. Test times can be set, data deletion, statistics function;

6. Power-down memory of test parameters;

7. Automatic reset, intelligent fault prompt, overload protection;

8. Small size, convenient operation, reliable performance, fast test;

9. N.m, kg.cm, lb.in are converted mutually;

HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments

Product Specifications

Model 5079-HD
Measuring range 0～99ib.in
Resolution 0.001 Nm
Accuracy ±0.5%
Display mode Touch screen ; LCD display
Unit N.m; kg.cm; ib.in; N.cm
Clamping range Ф25mm～Ф170mm(Diameter)
Power supply 5V rechargeable battery / AC220V 50HZ power adapter
Data output method Micro printer, optional PC output
Save quantity 1～99
Machine size 330*200*200mm
Weight 15 KG
Design standard GB/T 17876,ASTM D 2063, ASTM D 3198, ASTM D 3474

ABOUT HAIDA

HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments

HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments

HD Bottle Capping Torque Tester High-Performance Paper Packaging Testing Instruments

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
