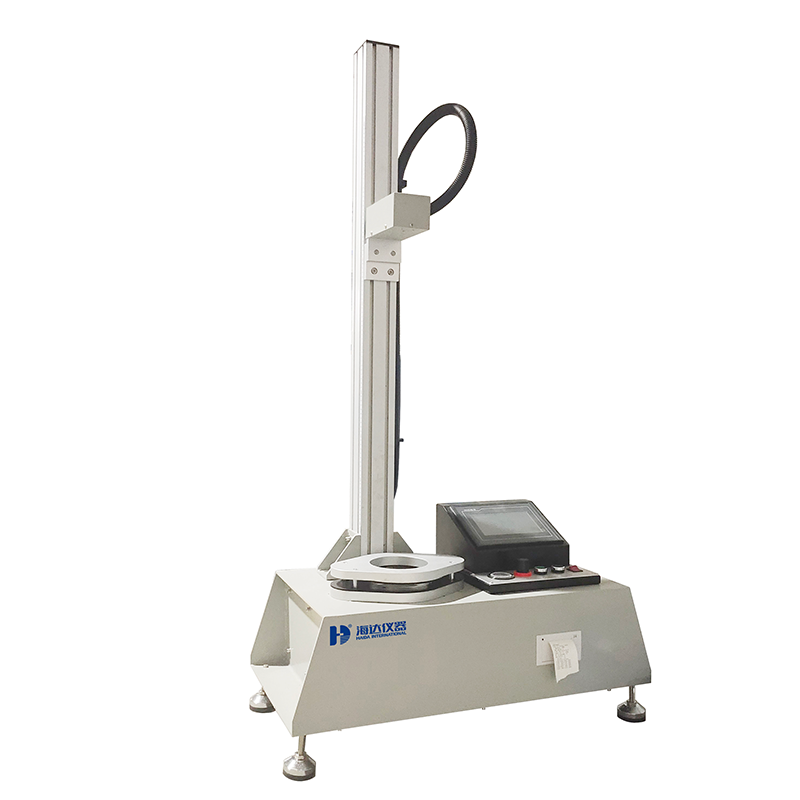

HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method
Specifications
Brand Name :
HAIDA
Model Number :
5085-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Capacity :
500kg, imported load cell
Load resolution :
1/250,000
Load Precision :
Within ± 0.5%
Motor :
400W Panasonic servo motor
Test Speed :
0.1-500mm/min adjustable
Dimensions :
(L*W*H)790 x 610 x 1100mm
Weight :
Approx. 170 kg
Power :
1∮, 220V, 500W
Description

Dart Impact Testing Machine

Description:

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method

Product Specifications

Model 5085-HD
Testing sample mass Method A: 50-2000g;
Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size ＞150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm,
Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm,
Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic

ABOUT HAIDA

HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method

HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method

HD Dart Impact Testing Machine Model Fall Dart Impact Testing Machine for Plastic Films and Slices with Accurate Testing Method

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
