Specifications
Test range :
0.005-300W/(m*K)
Test mode A :
Room temperature
Test mode B :
RT~120℃ (Required other temp. Control device)
Probe diameter A :
7.5 mm
Probe diameter B :
15 mm
Resolution :
±3%
Repeatability error :
≤3%
Test time :
5~160 sec
Power :
AC 220V
External dimension(W*H*D) :
50*41*20 cm
Brand Name :
HAIDA
Model Number :
HD-60087
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Description

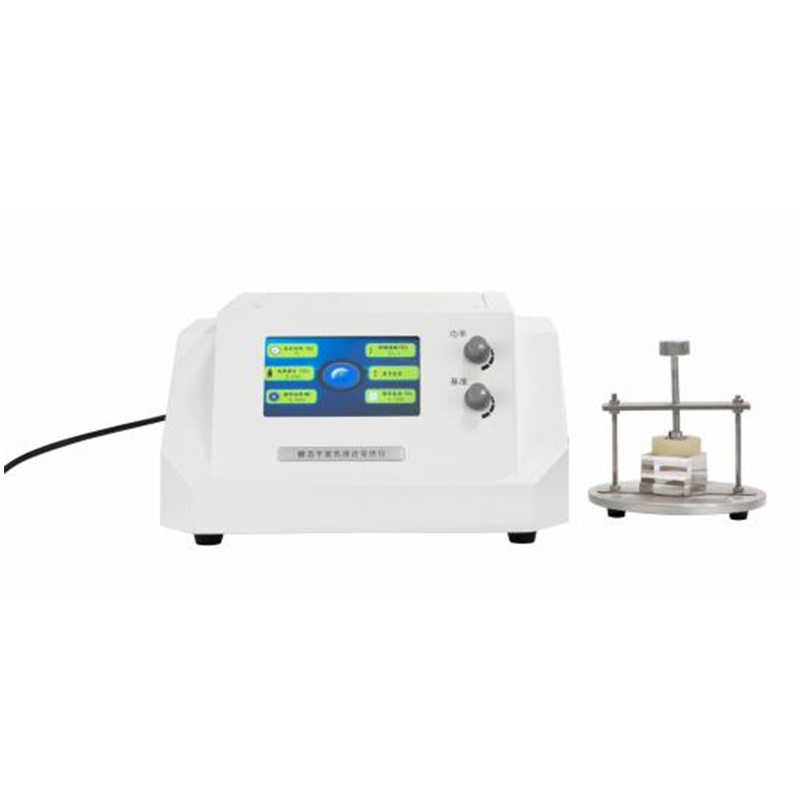

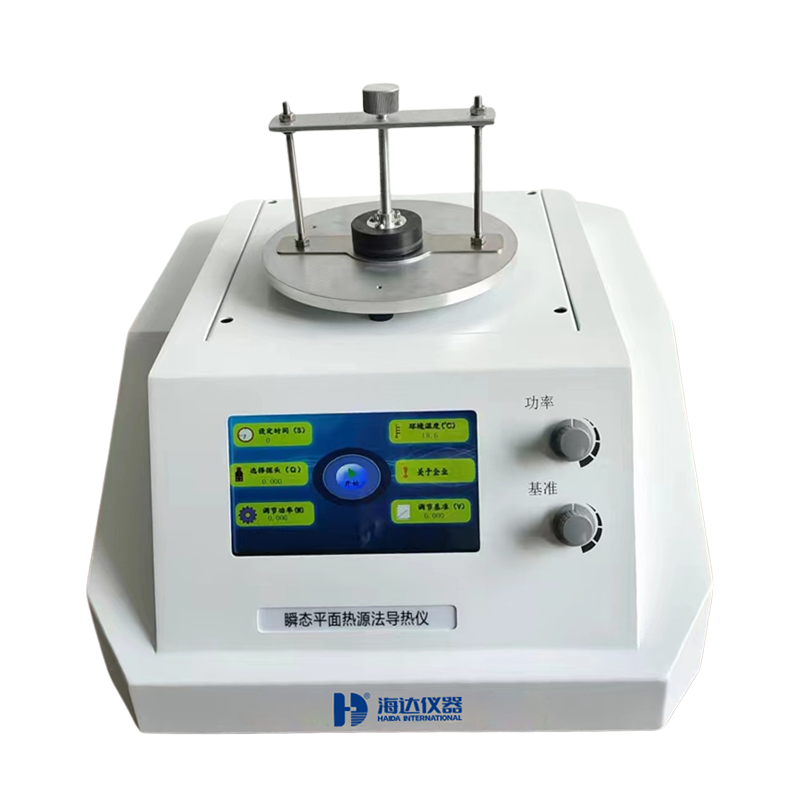

HD-DRL-S Thermal Conductivity Tester (TPS Method)

Description:

Thermal conductivity tester based on transient plane heat source technology (TPS). This product is independently developed by AVIC Dingli Instruments. It has stable test performance and strong data processing and analysis capabilities. It can be used to measure the thermal conductivity of various types of materials. Measurement material types: metal, ceramic, alloy, ore, polymer, composite material, paper, fabric, foam plastic (insulation material and board with flat surface), polyurethane, phenolic, urea formaldehyde, mineral wool (glass wool, rock wool, mineral wool), cement wall, glass reinforced composite board CRC, cement polystyrene board, sandwich concrete, glass fiber reinforced plastic panel composite board, paper honeycomb board, etc.

HD-DRL-S Thermal Conductivity Tester TPS Method

Technical Parameters

Item
Parameters
Thermal conductivity range
0.00001~300W/(m*K)
Measuring temperature range
RT~130℃

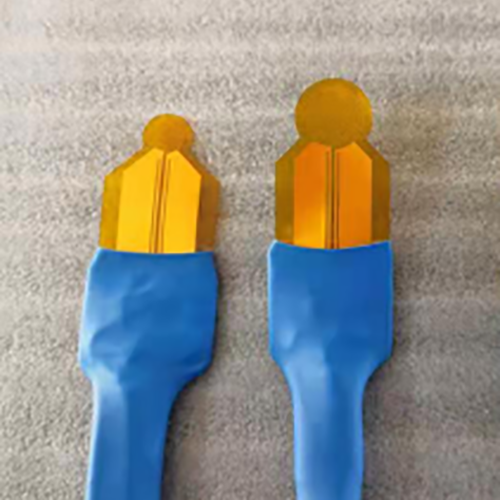

Probe diameter
Probe No. 1: φ7.5mm;
Probe No. 2: φ15mm
Measuring time
5~160 seconds
Sample temperature rise
﹤ 15℃
Sample size
Probe No. 1 sample: ≥7.5*7.5*3.75mm;
Probe No. 2 sample: ≥15*15*7.5mm

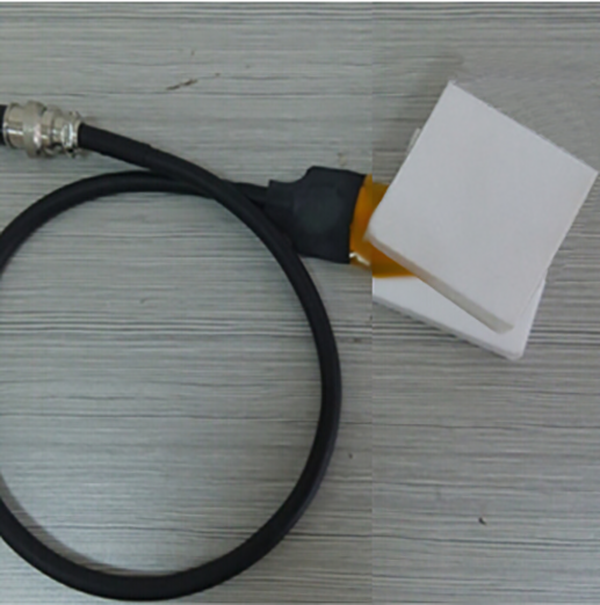

Note: Probe No. 1 measures thinner low-conductivity materials. If the surface of the sample to be measured is smooth and sticky,
the sample can be stacked
Test sample power P
Probe No. 1 power: 0

<1w;

Probe No. 2 power: 0

Accuracy of measurement results
±3%
Control mode
Computer and software, software can export PDF Report, can export EXECL data
Protection system
Circuit with overload protection prompt

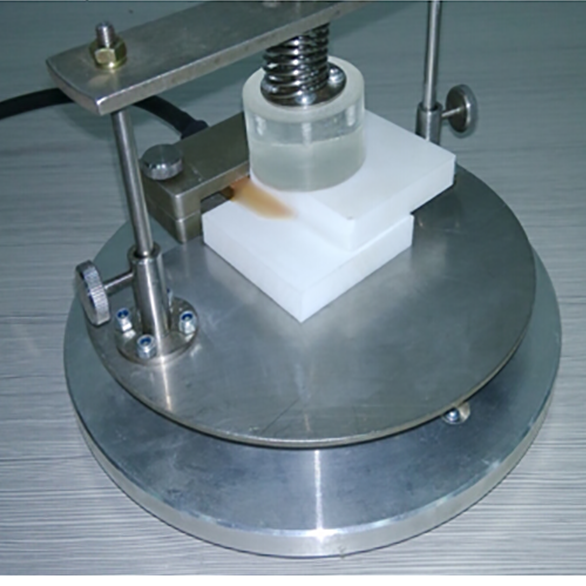

Sample testing clamps

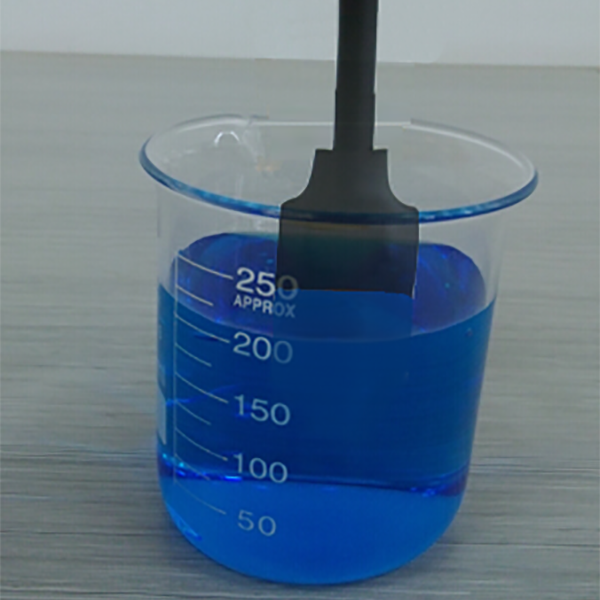

Powder sample test container, liquid sample test cup, solid sample test fixture for optional
Power
AC 220V±10%, 50/60 Hz, 500W
