Specifications
Brand Name :
HAIDA
Model Number :
5081-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Capacity :
500kg, imported load cell
Load resolution :
1/250,000
Load Precision :
Within ± 0.5%
Motor :
400W Panasonic servo motor
Test Speed :
0.1-500mm/min adjustable
Dimensions :
(L*W*H)790 x 610 x 1100mm
Weight :
Approx. 170 kg
Power :
1∮, 220V, 500W
Description

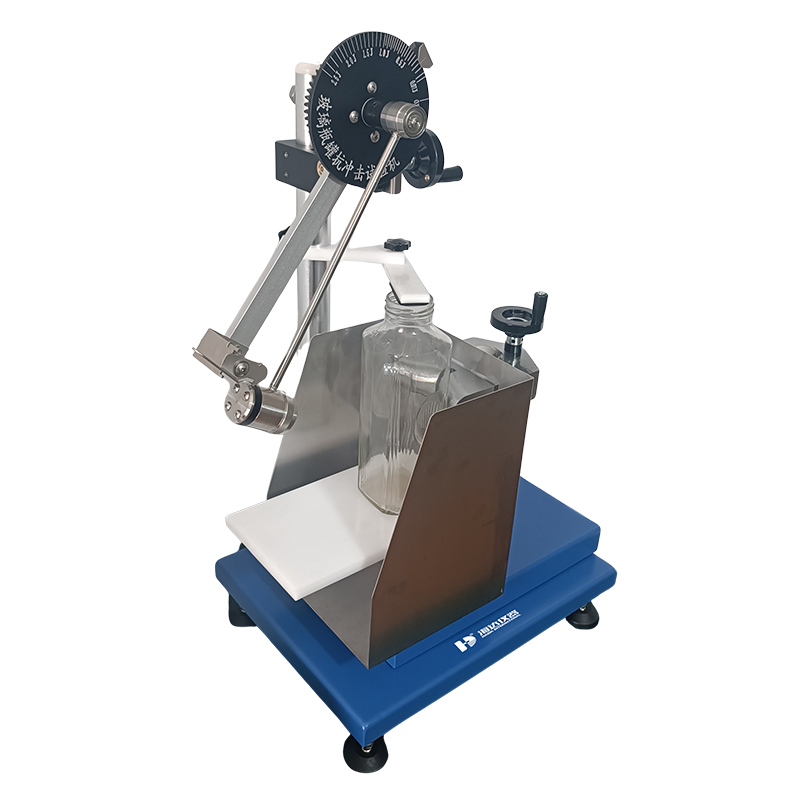

Glass Bottle Impact Tester

Description:

According to the principle of energy conversion, the impact energy of the pendulum on the glass bottle is determined by the potential energy of the pendulum. When the angle of the pendulum is a certain value, the potential energy of the pendulum is also a certain value, and the impact energy of the pendulum on the glass bottle is also a certain value.

Test Philosophy

1. Passing test

Place the specimen on the support table, close to the rear support. Adjust the support table up and down, adjust the strike part to the part to be tested, and then adjust the support table horizontally, so that the pendulum is in a free static state and the striking object is slightly touching the surface of the specimen. Repeatedly strike the bottle with the specified impact energy at three points about 120o apart around the bottle to check whether the bottle is damaged.

2. Incremental test

After passing the sex test, with the specified impact energy to repeat the blow around the bottle at a distance of about 120o three points, and then increase the impact energy to repeat the test, until the bottle is destroyed.

HD Glass Bottle Impact Tester Professional Glass Bottle Impact Tester for Paper Packaging Testing Instruments

Product Specifications

Model 5081-HD
Sample diameter range φ20~160mm
Sample bottle height 20~180mm
Impact energy 0~3N·m
Dimension (L×W×H) 500*350*700mm
Weight 28Kg
