ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Haida
Model Number :
HD-A521
Packaging Details :
Each set is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Supply Ability :
50 Set/Sets per Month
Price :
$1,500.00 - $3,500.00/sets
Warranty :
1 Year
Customized support :
OEM, ODM
Power :
Electronic
Standards :
ASTM, ISTA
Guarantee :
1 year
Test Space :
100*120mm
Maximum test load :
100kg
Simulation speed :
25-40km/h
Work table size :
1000x 1200mm
Outside dimension :
1255x 1070x 660mm
Weight :
125kg
Port :
Shenzhen , HongKong , Guangzhou
Description
Vibration Table Simulator Machine Vibration Test Equipment
Product Description
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
Vibration Test Machine
The carton vibration table is based on American and European transportation standards, and is improved and manufactured with reference to similar equipment in the United States. The eccentric shaft is used to generate an elliptical motion trajectory during rotation to simulate the vibration and collision of goods during the transportation of cars or ships. Fix the test platform on the eccentric bearing. When the eccentric bearing rotates, the entire plane of the test platform will move up and down in an elliptical shape. Adjusting the rotating speed of the eccentric shaft is equivalent to adjusting the speed of a car or ship.
Specification
Max. Test Load
100 Kg
Frequency Range
60-300 rpm
Amplitude Range
25.4 mm (1 inch)
Vibration Mode
Roundtrip
Simulation Speed
25~40 km/h
Woke Table Size
1000×1200 mm
Outside Dimension (L×W×H)
1255×1070×660 mm
Power Capacity
1 HP
Weight
125 Kg
Environmental Conditions
Temperature: 5~40°c;
Related Humidity: <85%
Speed Mode
DC converter or AC Frequency Control
Power
220V, 50 Hz
Why We Need Vibration Testing?
The purpose of the vibration test is to do a series of controllable vibration simulations in the experiment to test whether the
product can withstand the test of transportation or vibration environment factors during the life cycle, and to determine the
required standards for product design and function. According to statistics, a 3% increase in design standards will increase
recycling by 20% and reduce unnecessary expenditures by 18%. Vibration simulation has different methods for different purposes,
such as resonance search, resonance dwell, cycle scanning, random vibration and stress screening.

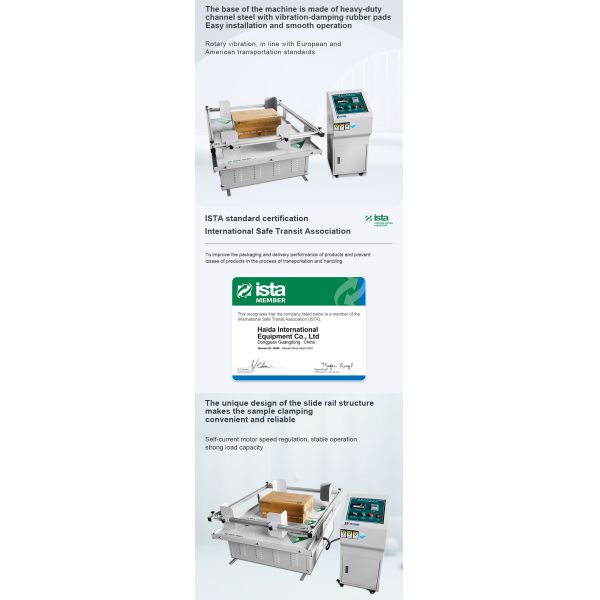

Features of carton vibration test table:
1.Digital meter displays vibration frequency
2.Synchronous noise suppression belt drive, extremely low noise
3.The sample clamping adopts the guide rail type, which is convenient and safe to operate
4.The base of the machine is made of heavy-duty channel steel with damping rubber pads, which is easy to install and run smoothly
without installing anchor screws.
5.DC motor speed regulation, stable operation, strong load capacity
6.Rotary vibration (commonly known as horse racing type), in line with European and American transportation standards.
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine

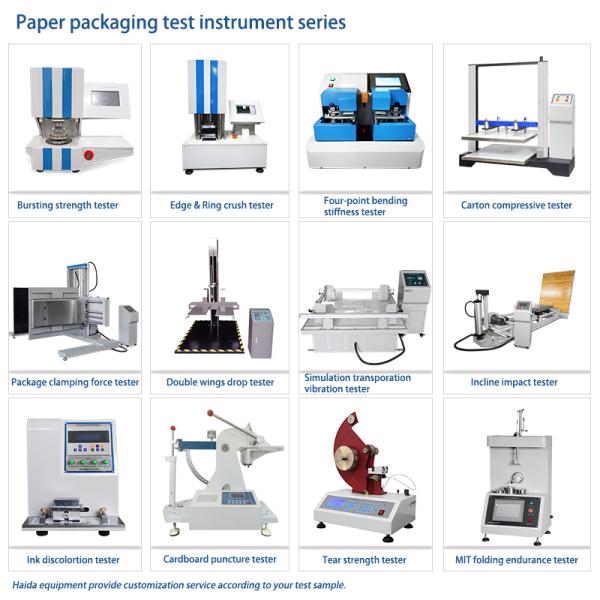

Paper&Package Tester
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
Company Profile
ASTM 40km/h Vibration Test Equipment Vibration Table Simulator Machine
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from
our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can
provide video-con

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click " CONTACT SUPPLIER "
Thanks for your time and attention!
