Specifications
power :
0-20r/min
product name :
furniture testing equipment
Test force :
1000N
Power :
AC380V , 5kW
Design standard :
ASTM F1566-2009, EN1957,GB/T 26706-2011,QB/T 1952.2-2011
Controller :
PLC+ Color touch screen+ Output the test data
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HAIDA
Certification :
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number :
HD-F764
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time :
20 days after order confirmed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Description
Comprehensive Mattress Rollator Fatigue Testing Machine
Multifunctional Mattress Durability Test Equipment
OEM PLC Color Touch Screen Furniture Testing Machines, Mattress Rollator Integrated Tester

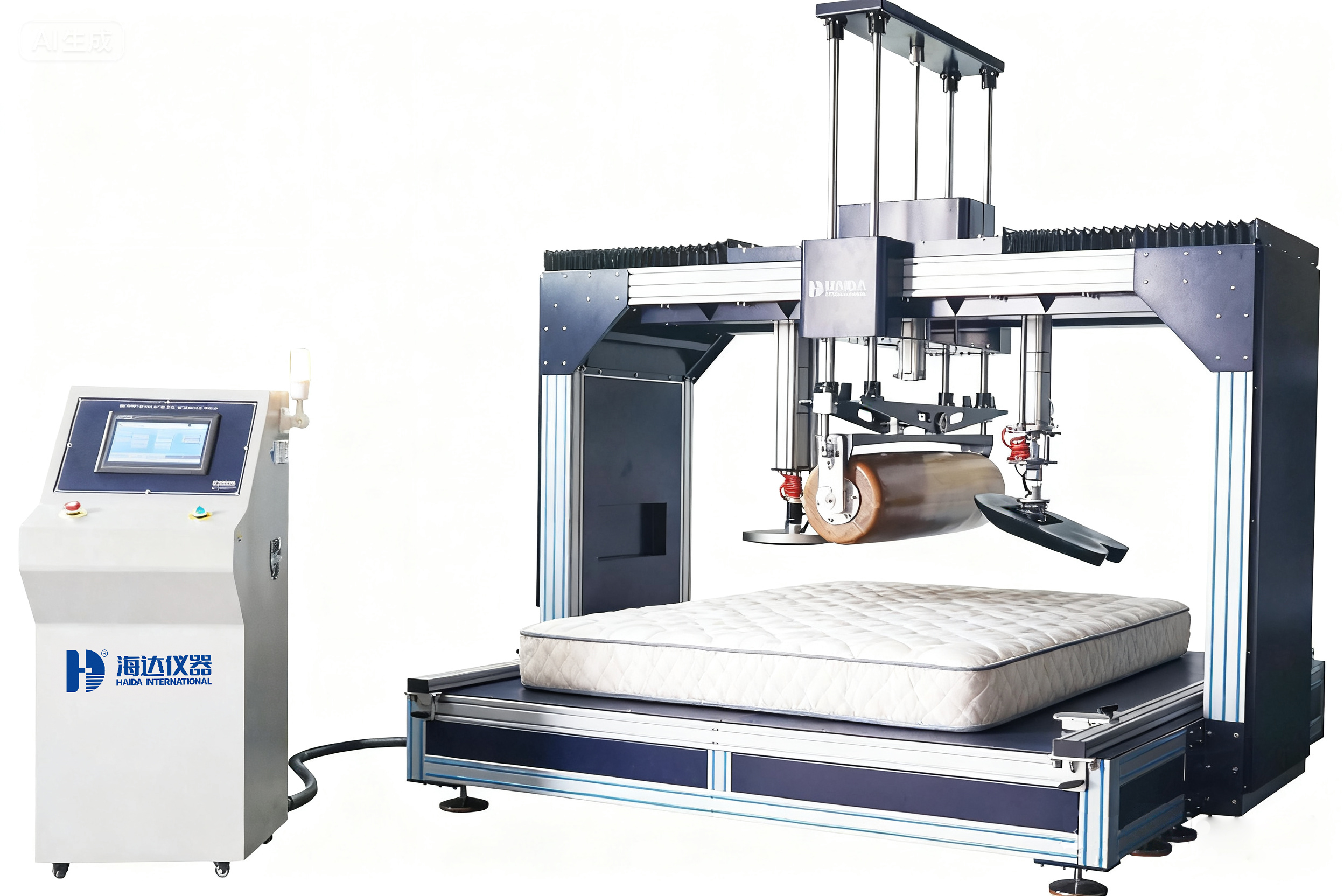

HD-F764 Mattress Rollator Integrated Tester
Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.)
Main Technical Parameters
Parameter Specification
Max mattress size 2.2M × 2M
Controller PLC + Color touch screen + Output the test data
Hexagonal wood barrel 109kg, Length 36±3in (915±75mm), Diameter of roller (flat to flat) 17±1in(430±25mm)
Cylinder wood barrel 140kg, length 1000mm, Diameter 300mm
Test stroke ASTM 1566, No less than 70% of the width of mattress, or 38 in (965mm), whichever is smaller. EN 1957 250mm on either side of the longitudinal centre line
Test speed 0-20r/min
Transmission device High servo system
Height loss test High servo measure system
Mattress edge test Test times: 5000 Stop time: 3S Test force: 1000N
Power 3∮, AC380V, 5kW
Design standard ASTM F1566-2009, EN1957, GB/T 26706-2011, QB/T 1952.2-2011
Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment
Product Components
  • 1. Stroke limiter
  • 2. Roller
  • 3. Mattress edge pressure controller
  • 4. Mattress side pressure test
  • 5. Sample carrier
  • 6. Foot
  • 7. Sample
  • 8. Hardness test indenter
  • 9. Touch screen controller
Three Testing Functions
Rolling Test
Roll back and forth on the mattress under test to simulate human movements
Softness Test
The mattress is repeatedly impacted with a specific loading block
Side Pressure Test
Mattress fatigue test
Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment
Company Introduction
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 20 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment
Quality Control
Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment
