Specifications
Model NO. :
GP-01
Carbon Content :
High-Carbon
Grade :
Industrial Grade
Forming Way :
Molded Graphite
Crystal Morphology :
Flake Graphite
Composition :
99% Carbon
Transport Package :
by Carton Box
Specification :
0.05-5mm for thickness
Trademark :
DC
Origin :
China
HS Code :
2701110090
Supply Ability :
2000 Square Meters
Customization :
Available
Type :
Graphite Sheets
Electric Conductive :
High
Place of Origin :
China
Delivery Time :
Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Description

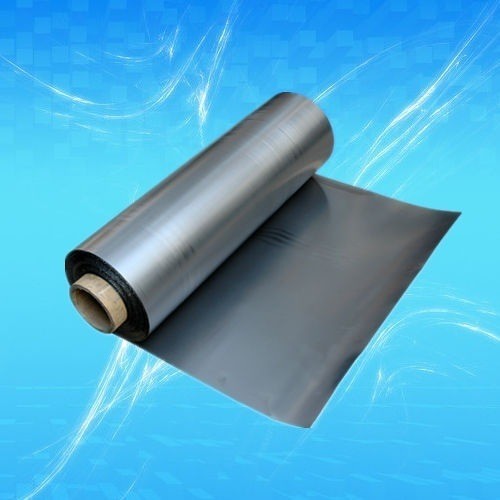

High Thermal Conductivity Expanded Flexible Sealing Graphite Paper:
The Description of graphite paper:
The graphite paper we produced can be widely used in the electric power petroleum, instrument, machinery, etc. It is the basic material to make all kinds of graphite composite boards, graphite strip, padding, and the sealing gasket.
Flexible graphite paper:
Flexible graphite paper is compressed by natural flake graphite, the density is 1.0-1.3g/cm3, the thickness is 0.3-1.5mm. it can not be cruled if the thickness is over 1.2. we also named it as graphite composite board in this condition.

Specification:
Thickness Density Sulphur Carbon Chlorine Tensile Strength
mm g/cm3 ppm % ppm MPA
0.13 0.7-1.5 800-500 99.3 40 ≥4.0
500-200 99.4 30 ≥4.5
≤200 99.5 20 ≥5.0
0.2-0.5 0.7-1.1 800-500 99.3 40 ≥4.0
500-200 99.4 30 ≥4.5
≤200 99.5 20 ≥5.0
0.5-1.0 0.7-1.1 800-500 99.3 40 ≥4.0
500-200 99.4 30 ≥4.5
≤200 99.5 20 ≥5.0

Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry

We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
