Specifications
Rated PV Voltage :
600 V
Brand Name :
DEYE
Start-up Voltage :
180 V
Place of Origin :
CHINA
Price :
100$/KW (KWH)
Max Input Current :
36A + 36A + 36A
Delivery Time :
45-90 workdays
Model Number :
30KW/50KWH ESS BOS-G Pro 50 SUN-30K-SG02HP3-EU-AM3/BOS-G-Pack5.1 /BOS-G-PDU-2/3U-HRACK
MOQ :
1unit
Payment Terms :
T/T
Max Short-Circuit Current :
54A + 54A + 54A
Description

DEYE 30KW/50KWH ESS BOS-G Pro 50 SUN-30K-SG02HP3-EU-AM3/BOS-G-Pack5.1 /BOS-G-PDU-2/3U-HRACK

Product Description

The DEYE 30KW / 50KWH ESS BOS-G Pro is a high-voltage three-phase hybrid solar energy storage system designed for commercial and industrial applications. It combines a 30KW hybrid inverter with a modular lithium iron phosphate (LiFePO4) battery storage system, delivering efficient energy conversion, intelligent management, and reliable backup power.

The system supports advanced PV input configurations, high-voltage battery integration (160–700V), and scalable rack-mounted battery modules, making it suitable for grid-tied, off-grid, and hybrid energy storage projects.

Product System Composition

  • Hybrid Inverter: SUN-30K-SG02HP3-EU-AM3
  • Battery System: BOS-G Pro 5.12kWh LiFePO4 Modules
  • Battery Pack Options: BOS-G25 / G40 / G60 / G80 Pro
  • Battery Cluster Control Box (HV Rack System)
  • 19-inch Rack Installation System
  • Optional Wi-Fi / GPRS / 4G Monitoring System

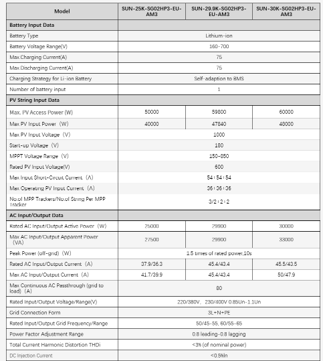

Hybrid Inverter Specifications (SUN-30K-SG02HP3-EU-AM3)

PV Input Data

Item Specification
Max PV Input Power 48,000 W
Max PV Access Power 60,000 W
Max PV Input Voltage 1000 V
MPPT Voltage Range 150–850 V
Start-up Voltage 180 V
Rated PV Voltage 600 V
MPPT Trackers 3
Strings per Tracker 2+2+2
Max Input Current 36A + 36A + 36A
Max Short-Circuit Current 54A + 54A + 54A

AC Output Data

Item Specification
Rated Power 30 kW
Max Apparent Power 33 kVA
Peak Power 1.5× rated power (10s)
Grid Voltage 220/380V, 230/400V
Frequency Range 50Hz (45–55Hz) / 60Hz (55–65Hz)
Max Continuous Current 80A
Efficiency Up to 98.5%

Battery Input Data

Item Specification
Battery Type Lithium-ion (LiFePO₄ compatible)
Voltage Range 160–700V
Max Charge Current 75A
Max Discharge Current 75A
BMS Communication Self-adaptive

Protection & Features

  • DC Reverse Polarity Protection
  • Overcurrent / Overvoltage / Short Circuit Protection
  • Arc Fault Protection (optional)
  • Anti-islanding Protection
  • Surge Protection Type II (AC/DC)
  • Intelligent Air Cooling
  • IP65 Protection Rating
  • Efficiency up to 98.5%
  • RS485 / CAN / RS232 Communication
  • Wi-Fi / 4G / LAN Monitoring (optional)

BOS-G Pro Battery System Specifications

Battery Module (5.12kWh)

Item Specification
Chemistry LiFePO₄
Module Energy 5.12 kWh
Nominal Voltage 51.2V
Capacity 100Ah
Cycle Life ≥6000 cycles
Communication CAN2.0 / RS485
IP Rating IP20
Warranty 10 Years

System Configuration Options

Model Battery Modules Total Energy Rated Power
G25 Pro 5 modules 25.6 kWh 25.6 kW
G40 Pro 8 modules 40.96 kWh 40.96 kW
G60 Pro 12 modules 61.44 kWh 61.44 kW
G80 Pro 16 modules 81.92 kWh 81.92 kW

Battery System Features

  • Modular Rack-Mounted Design (19-inch Standard Rack)
  • High Voltage Scalable Architecture
  • Intelligent BMS with CAN/RS485 Communication
  • Long Cycle Life ≥6000 Cycles
  • High Safety LiFePO4 Chemistry
  • Compatible with DEYE Hybrid Inverters
  • Stable Performance for Industrial Applications
  • Easy Expansion and Maintenance

System Features

  • Integrated 30KW Three-Phase Hybrid Solar Solution
  • High-Efficiency Energy Conversion (Up to 98.5%)
  • Scalable Energy Storage Up to 81.92kWh
  • Smart Energy Management System (EMS Ready)
  • Wide PV Input Range for Flexible Solar Design
  • Grid-Tied and Off-Grid Operation Capability
  • Intelligent Cooling and High Protection Design
  • Remote Monitoring via Wi-Fi / 4G / LAN
  • Industrial-Grade Reliability for Long-Term Operation
