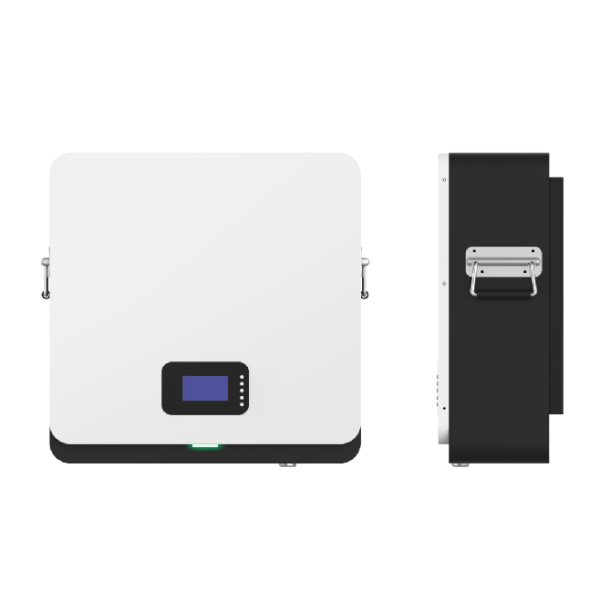

G-5000A 51.2V 100AH Home Solar Energy Storage System 5.12kWh Wall Mounted
G-5000A 51.2V 100AH Home Solar Energy Storage System 5.12kWh Wall Mounted
Specifications
Payment Terms :
T/T
Parallel Capability :
Recommended 6 units, up to 16 units supported
Brand Name :
SunPhoton
Place of Origin :
China
Delivery Time :
5-30 workingdays
Communication Interface :
RS485 / CAN / RS232
Certification :
UN38.3
Cycle Life :
≥6000 cycles (80% DOD, 25°C)
Remote Monitoring :
Bluetooth (optional) / Wi-Fi
MOQ :
RFQ on MOQ
Model Number :
G-5000A 51.2V 100AH
Price :
RFQ on MOQ
Supply Ability :
10,000 Pieces
Description

YIFEI Home Storage Battery G-5000A 51.2V 100AH

Product Description

The YIFEI Home Storage Battery G-5000A 51.2V 100Ah is a compact wall-mounted lithium iron phosphate (LiFePO4) energy storage battery designed for residential and small commercial solar energy systems. With a usable energy capacity of 5.12kWh, it provides reliable backup power and efficient energy storage for home solar applications.

This system features a high-performance BMS, strong compatibility with mainstream inverter brands, and flexible parallel expansion capability, making it ideal for scalable residential energy storage solutions.

Product Specifications

Item Specification
Product Name YIFEI Home Storage Battery G-5000A 51.2V 100Ah
Battery Capacity 5.12 kWh (51.2V, 100Ah)
Rated Capacity 100Ah
Cell Configuration 16S1P
BMS Configuration 16S100A
Rated Voltage 51.2V
Operating Voltage Range 44.8V – 58.4V
Rated Charge/Discharge Current 50A
Peak Current 100A continuous @ 105A for 10 seconds
Rated Charge/Discharge Power 2.56 kW
Peak Power 5.12 kW (continuous) / 5.38 kW peak
Cycle Life ≥6000 cycles (80% DOD, 25°C)
Communication Interface RS485 / CAN / RS232
Remote Monitoring Bluetooth (optional) / Wi-Fi
Parallel Capability Recommended 6 units, up to 16 units supported
Mounting Method Wall-mounted
Protection Rating IP21
Operating Temperature Charge: 0°C to 50°C / Discharge: -10°C to 60°C
Storage Temperature <3 months: -10°C to 25°C / <1 year: 0°C to 25°C
Humidity Range 0% – 95%
Max Operating Altitude 2000 m
Supported Inverter Brands SMA / Growatt / TBB / Deye / GOODWE / PYLON / Luxpowertek / Victron Energy / SOFAR / INVT
Dimensions (L×W×H) 450 × 455 × 181 mm
Net Weight 46 kg
Carton Gross Weight 49.2 kg
Crate Gross Weight 55.5 kg
Carton Size 500 × 505 × 245 mm
Crate Size 515 × 510 × 340 mm
20ft Container Capacity 240 units (carton) / 264 units (wooden crate)
40ft Container Capacity 528 units (carton) / 490 units (wooden crate)

Product Features

  • Compact Wall-Mounted Energy Storage Design
  • High-Efficiency 5.12kWh LiFePO4 Battery System
  • Strong Compatibility with Major Inverter Brands
  • Intelligent BMS with RS485 / CAN / RS232 Communication
  • High Safety Performance with Stable Voltage Output
  • Flexible Parallel Expansion (up to 16 units)
  • Optional Bluetooth and Wi-Fi Remote Monitoring
  • Wide Operating Temperature Range for Various Environments
  • Long Cycle Life (≥6000 Cycles) for Extended Durability
  • Lightweight and Easy Installation Design

Applications

  • Residential Solar Energy Storage Systems
  • Home Backup Power Supply
  • Small Commercial Energy Storage Solutions
  • Off-Grid Solar Power Systems
  • Hybrid Solar Inverter Systems
  • Telecom and Communication Backup Power
  • Energy Cost Saving and Peak Shaving
  • Modular Battery Expansion Systems
  • Renewable Energy Integration Projects
