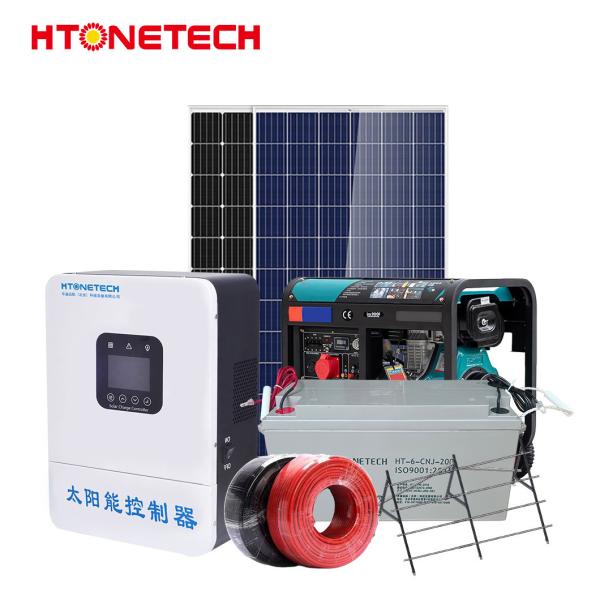

HTONETECH 3Kw 5KW Off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6Kw Diesel Generator Solar Energy System 1Kw
Product Description


System advantages:
HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.
1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.
Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.
- A high-voltage solar system refers to a solar power installation that operates at a higher voltage level than standard residential systems. A 5000W high-voltage solar system indicates a system with a capacity to generate a maximum power output of 5000 watts. Here are some key points about such a system:
- High-Voltage Operation: High-voltage solar systems typically operate at voltages higher than the standard residential systems (which are typically around 240 volts). These systems often use power optimizers or microinverters to convert the DC power generated by the solar panels to AC power at the higher voltage level.
- Capacity: A 5000W solar system can generate up to 5000 watts or 5 kilowatts of electricity under optimal conditions. The actual energy production will depend on factors such as sunlight availability, panel efficiency, and shading.
- Residential Application: A 5000W high-voltage solar system is commonly used for residential applications. It can help offset a significant portion of a home's electricity needs, powering various appliances, lighting, and other electrical devices.
Product Parameters
BLACK MONO SOLAR PANELS
Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)
SOLAX HYBRID INVERTER &DATA LOGGING STICK
Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional
TRIPLE-POWER LITHIUM BATTERY
Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)
PV MOUNTING SYSTEM
Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional Components | SP3KW-HY | SP3.7KW-HY | SP4.6KW-HY | SP5KW-HY |
280W Mono Solar Panel | 12 Piece | 14 Piece | 18 Piece | 20 Piece |
Dc Disconnect Switch | 1 Piece | 1 Piece | 2 Piece | 2 Piece |
Hybrid Inverter | X1-HYBRID-3.0T | X1-HYBRID-3.7T | X1-HYBRID-4.6T | X1-HYBRID-5.0T |
Triple Power Battery | 4.5 kWh | 4.5 kWh | 6.3 kWh | 6.3 kWh |
Dc Cable 4mm2 | 100 meter | 100 meter | 200 meter | 200 meter |
AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | 1 Piece |
MC4 Connector | 10 | 10 | 15 | 15 |
Mounting System | Standards Pitched Roof ( Customized Optional) |
PV Tools | 1 Set |
Detailed Photos











FAQ
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
