Solar photovoltaic (PV) panels have a wide range of applications across various sectors. Here are some common applications of solar PV panels:

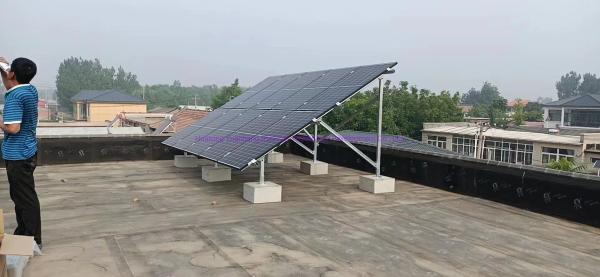

Residential Solar Power: Solar panels are commonly installed on residential rooftops to generate electricity for homes. They can power household appliances, lighting, heating and cooling systems, and other electrical devices. Excess energy can be fed back to the grid or stored in batteries for later use.



Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power | Model | Peak power(WP) | Peak Voltage(V) | Peak Current(A) | Short circuit current (A) | Open circuit voltage (V) | Size |
| HT-S150-24M | 150 | 18 | 8.33 | 8.99 | 22.5 | 1480X670X35 |
| HT-S200-24M | 200 | 36 | 5.56 | 6.01 | 44.8 | 1580X808X35 |
| HT-S250-24M | 250 | 30 | 8.33 | 8.99 | 36.8 | 1640X992X40 |
| HT-S275-24M | 275 | 30 | 9.17 | 9.81 | 37.2 | 1640X992X40 |
| HT-S300-24M | 300 | 30 | 10 | 10.7 | 37.2 | 1650X992X35 |
| HT-S330-24M | 330 | 36 | 9.17 | 9.81 | 44.64 | 1956X992X40 |
| HT-S430-24M | 430 | 40.3 | 10.67 | 11.22 | 48.7 | 2102X1040X35 |
| HT-S450-24M | 450 | 41.0 | 10.98 | 11.53 | 49.6 | 2102X1040X35 |
| Maximum power Pmp temperature coefficient | =-0.35%/ºC | |||||
| The open-circuit voltage Voc | =-0.28%/ºC | |||||
| temperature coefficient Short-circuit current | 0.048%/"ºC | |||||
| Component border | anodic oxidation | |||||
| Junction box | Protection grade IP68 | |||||
| cable | 4.0mm2,900mm | |||||
| working temperature (ºC) | -40~+85 | |||||
| Application level | Class A | |||||
| fire-protection rating | Class C | |||||
| Rated battery working temperature | 45±2ºC | |||||
