Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
Specifications
Brand Name :
Hochiry
Model Number :
GJYXFCH drop fiber optic cable
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100 Roll
Price :
0.07USD/Meter
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-10 days
Packaging Details :

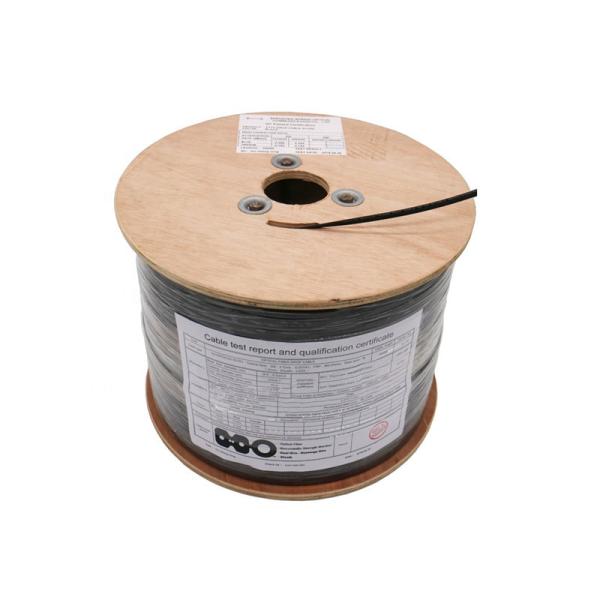

1000M per Wooden Roll
Fiber type :
G652D ,G657A ,G657A2
Cable Structure :
Self-support tight buffer
Strength member :
FRP (Fiber glass reinforced plastic)
Installation tensile :
1200N
Fiber Amount :
1 fiber
Jacket :
PVC LSZH PE
Description

Plywood Drum Fiber Optic FTTH Drop Cable Singlemode Kfrp Strength Member Indoor Fiber Optic Cable

Description:

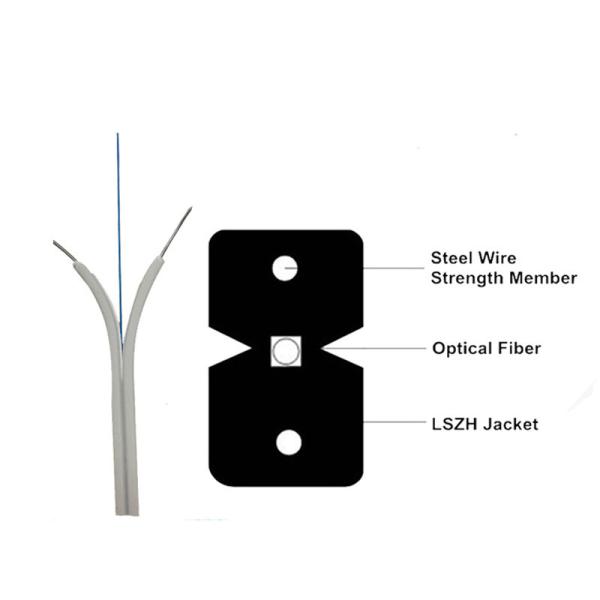

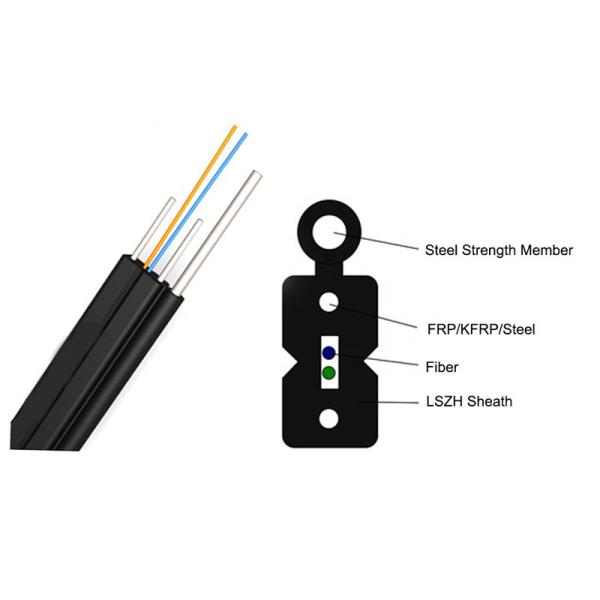

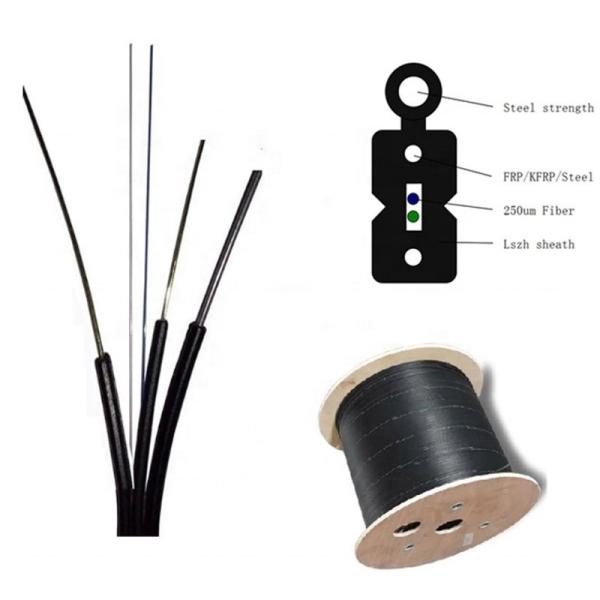

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Features:

​ 1. Special low-bend-sensitivity fiber provides high bandwitch and excellent communication transmission property.

2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3. Single steel wire as the additional strength member ensure good performance of tensile strength.

4.Simple structure, light weight and high practicability.

5. Novel flute design, easily strip and splice, simplify the installation and maintenance.

6. Low smoke, zero halogen and flame retardant sheath.

Application:

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Fibra Optica Drop Cable Specs

Items Unit G.657A1 Specification
Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
Cladding Diameter μm 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error μm ≤0.5
Coating Diameter μm 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0
Cable Cutoff Wavelength nm λcc≤1260
Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Macro-Bending Loss 1turn×10mm radius@1550nm dB ≤0.75
1turn×10mm radius@1550nm dB ≤1.5



Fiber characteristics

Cable code
Fiber Count
Cable size
(mm)
Cable

weight
(KG/KM)
GJYXFCH
1
(2.0+-0.1)X(5.2+-0.1)
19
GJYXFCH
2
(2.0+-0.1)X(5.2+-0.1)
19
GJYXFCH
4
(2.0+-0.1)X(5.2+-0.1)
19
GJYXFCH
8
(2.5+-0.1)X(6.0+-0.1)
27
GJYXFCH
12
(2.5+-0.1)X(6.0+-0.1)
27


Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member

Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member

Plywood Drum FTTH Drop Fiber Optic Cable Singlemode KFRP Strength Member
