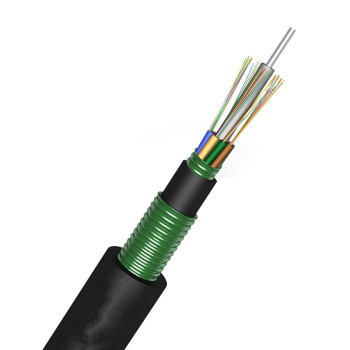

Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Armored Underground Outdoor Fiber Optic Cable Double PE Double Steel Tape Anti Rodent
Specifications
Brand Name :
Hochiry
Model Number :
GYTS53 Optical Fiber Cable
Certification :
CE/ROHS/ISO9001/ANATEL
Place of Origin :
CHINA
MOQ :
10000 meter
Payment Terms :
T/T, Western Union, MoneyGram
Product Name :
Gyts53 Optical Fiber Cable
Fiber Options :
G652D ,G657A,OM1,OM2,OM3,OM4
Strength member: :
FRP or Steel Wire
Fiber Count :
2-288cores
Type :
All-Dielectric Self-Support
Application :
Aerial and Duct
Length :
2km or customized length
Jacket :
PE
Structure :
Loose tube
Fiber type :
G652D
Description

GYTS53 Anti Rodent Double PE Durable Steel Tape Armored Underground Fiber Optic Cable

Description:

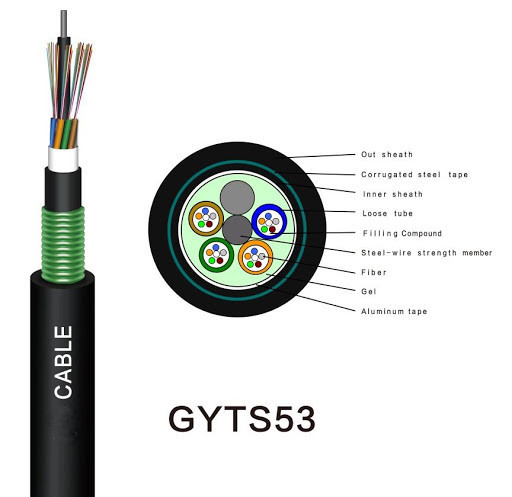

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

Good performance under mechanical stress.
Loose tube gel-filled construction for superior fiber protection.
Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also reinforces the crush resistance of fiber optical cable.
Double PE sheath, UV and waterproof design.

Application:


Long-distance telecom, LAN in high-voltage area or access to telecom network

Aerial & conduit / duct/ direct buried application.


Advantages:


1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm Kg/km N N/100mm mm
GYTS-2~6 2~6 1 4 10.2 116 600/1500 300/1000 10D/20D
GYTS-8~12 8~12 2 3 10.2 116 600/1500 300/1000 10D/20D
GYTS-14~18 14~18 3 2 10.2 116 600/1500 300/1000 10D/20D
GYTS-20~24 20~24 4 1 10.2 116 600/1500 300/1000 10D/20D
GYTS-26~30 26~30 5 0 10.2 116 600/1500 300/1000 10D/20D
GYTS-32~36 32~36 6 0 10.6 129 1000/3000 300/1000 10D/20D
GYTS-38~48 38~48 4 1 11.2 141 1000/3000 300/1000 10D/20D
GYTS-50~60 50~60 5 0 11.2 141 1000/3000 300/1000 10D/20D
GYTS-62~72 62~72 6 0 12 159 1000/3000 300/1000 10D/20D
GYTS-74~84 74~84 7 1 13.6 209 1000/3000 300/1000 10D/20D
GYTS-86~96 86~96 8 0 13.6 209 1000/3000 300/1000 10D/20D
GYTS-98~108 98~108 9 1 15.4 232 1000/3000 300/1000 10D/20D
GYTS-110~120 110~120 10 0 15.4 232 1000/3000 300/1000 10D/20D
GYTS-122~132 122~132 11 1 17.2 280 1000/3000 300/1000 10D/20D
GYTS-134~144 134~144 12 0 17.2 280 1000/3000 300/1000 10D/20D
