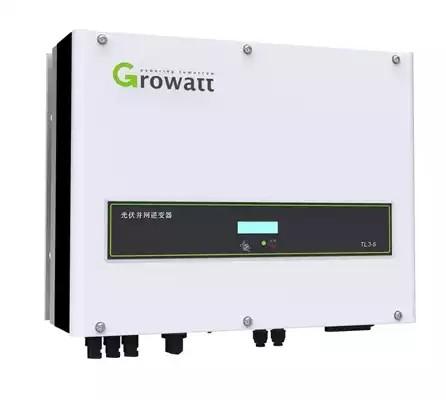

SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
Specifications
Brand Name :
Growatt
Model Number :
SW10000TL3-S
Certification :
TUV
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
20-25 work days
Packaging Details :
27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container
Product name :
Growatt SPH 1000TL Hybrid Solar Inverter
Communication :
WIFI/RS485/LAN
Model Number: :
SW10000TL3-S
Type: :
DC/AC Inverters
Output Type: :
Triple, Multiple
Application :
Hybrid Solar System
MPPT: :
2 MPPTs
Operation phase: :
Three Phase
Input Voltage: :
1000v
Output Voltage: :
230V/400V
Output Current: :
15.2A
Description

Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

Model
8000TL3-S
9000TL3-S
10000TL3-S
11000TL3-S5500M
Max. recommended PV power
(for module STC)
9600W
10800W
12000W
13200W
Max. DC voltage
1000V
1000V
1000V
1000V
PV voltage range
160V-1000V
160V-1000V
160V-1000V
160V-1000V
Nominal voltage
600V
600V
600V
600V
MPP voltage range at Full Power
360V-850V
400V-850V
450V-850V
450V-850V
Max. input current
11.5A/11.5A
11.5A/11.5A
13A/13A
13A/13A
Number of independent MPP trackers/strings per MPP tracker
2/1
2/1
2/1
2/1
Output (AC)
Rated AC output power
8KW
9KW
10Kw
11Kw
Max. AC apparent power
8.8kVA
9.9kVA
11kVA
12.1kVA
Max. output current
13.3A
15A
16.7A
18.3A
AC nominal voltage; range
230V400V: 320-478V
230V400V: 320-478V
230V400V: 320-478V
230V400V: 320-478V
AC grid frequency; range
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
Displacement power factor,
configurable
0.8leading…
0.8lagging
0.8leading…
0.8lagging
0.8leading…
0.8lagging
0.8leading…
0.8lagging
THDi
<3%
<3%
<3%
<3%
AC grid connection type
3W+N+PE
3W+N+PE
3W+N+PE
3W+N+PE

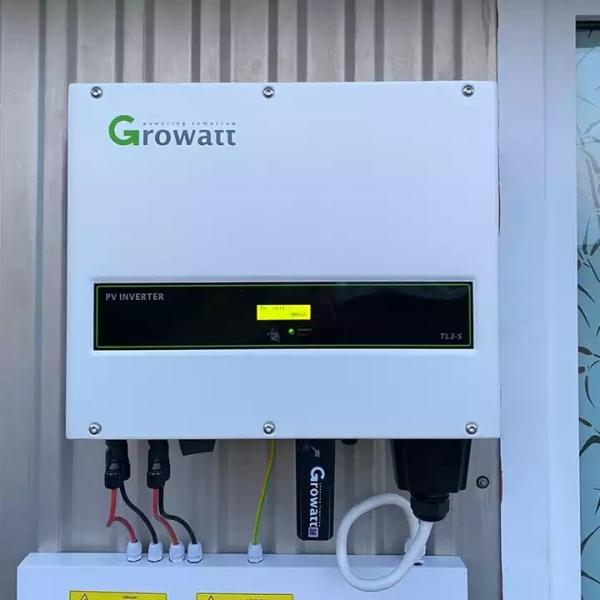

Project Case

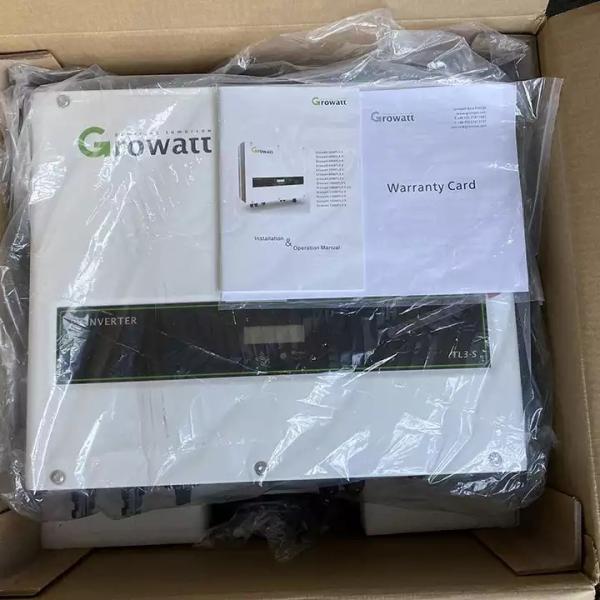

Product Packaging
