Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
Specifications
Brand Name :
Hochiry
Certification :
TUV
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece per week
Delivery Time :
10-15 work days
Packaging Details :
Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
Product name :
Rechargeable 48v 100ah Battery
Battery Type :
LiFePO4
Cycle life :
3000cycle/6000cycle
Protection :
Built-in Smart BMS
Capacity :
50Ah/80ah/100Ah/200Ah
Application :
Solar, Wind, UPS Energy Storage
Communication Port :
RS232, RS485, CAN
Description
Home Solar Energy System Rack Module 48V 400Ah 20Kwh 30Kwh 40Kwh 50Kwh 100Kwh 150Kwh Lithium Ion Battery

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Item HCR48200 Remark
Combination Method 16S34P 48
Rated Capacity 200Ah

Standard discharge after Standard

charge(package)
Factory Voltage 51.2V Mean Operation Voltage
Voltage at end of Discharge 46V Discharge Cut-off Voltage
Charge Voltage 56V Charge Cut-off Voltage
Internal Impedance ≤55.0mΩ

Internal resistance measured at AC

1KHZ after 50% chargeThe measure

must uses the new batteries that within

one week after shipment and cycles less

than 5 times
Standard charge

Constant Current 50A

Constant Voltage see No.5

0.02CA cut-off

 Charge time : Approx 2.5 h
Maximum Continuous Charge Current 100A
Standard Discharge end voltage see NO.4
Maximum Continuous Discharge Current 120A 100A when 0ºC＞T≥-20ºC
Operation Temperature Range Charge: 0~45℃

60±25%R.H.

Bare Cell
Discharge: -20~55℃
Storage Temperature Range Less than 12 months : -10~35℃

60±25%R.H.

at the shipment state
Less than 3 months: -10~45℃
Less than 7 day : -20~65℃
Dimensions 720*480*222.2mm Include Bracket
Weight Approx :102.5 kg
BMS Port CANBUS/RS485
BMS Support 16PCS Parallel connection 160KWH at max

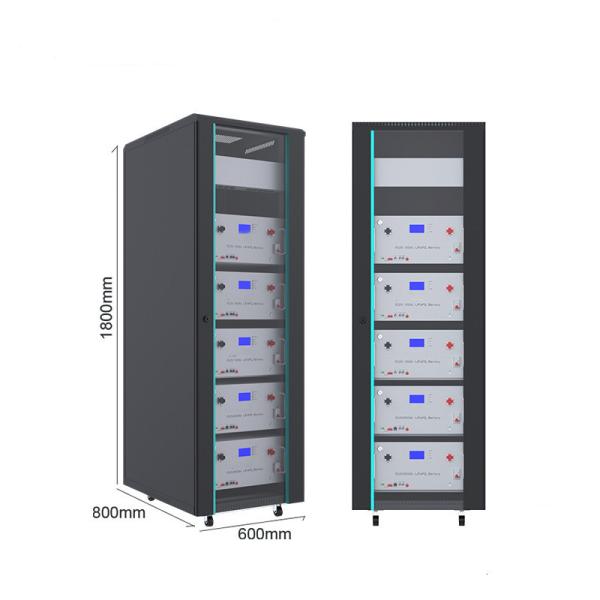

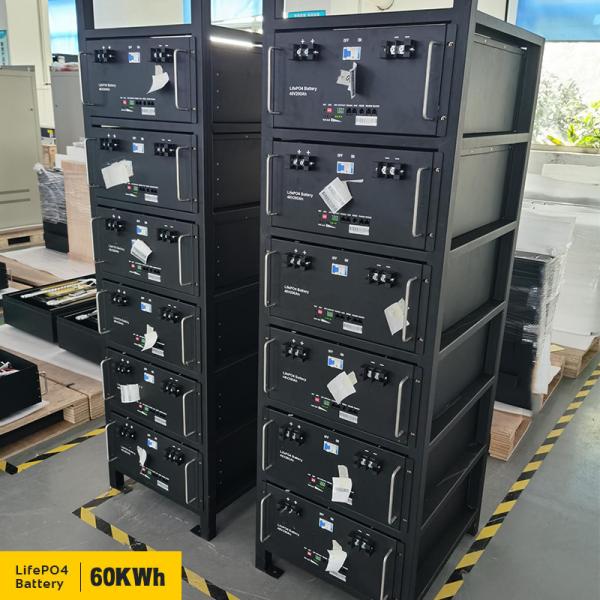

PRODUCTS DISPLAY

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Product Performance

Vertical industry integration ensures more than 6500 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.

PRODUCT ADVANTAGE

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

ON

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.

PACKING

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Good Quality Packs
VS
Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Low Quality Packs

SUPER SAFETY TEST

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

WHY CHOOSE US

◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.

Home Solar Energy System Rack Lifepo4 Battery Module 48V 400Ah 20Kwh 150Kwh
