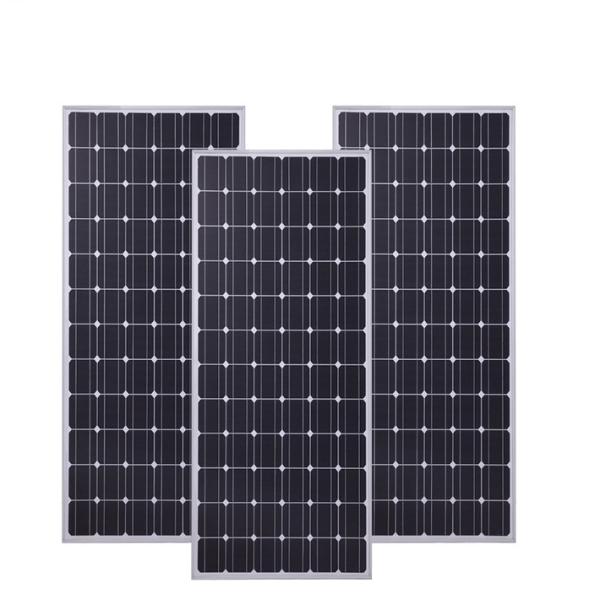

Sun Flower Series Connection Type 360 Watt Monocrystalline Solar Panel
Sunerise 72PCS 360W 48V Monocrystalline Solar Panel
| Maximum Power at STC [Pmax] | 360W |
| Open Circuit Voltage [Voc] | 48.00V |
| Short Circuit Current [Isc] | 9.51A |
| Voltage at Maximum Power Point [Vm] | 39.50 |
| Current at Maximum Power Point [Im] | 9.12 |
| Power Tolerance | 0~+5W |
| Module Efficiency | 18.55 |
| Maximum Power at NOCT [Pmax] | 270 |
| Open Circuit Voltage [Voc] | 46.5 |
| Short Circuit Current [Isc] | 7.61 |
| Voltage at Maximum Power Point [Vm] | 37.7 |
| Current at Maximum Power Point [Im] | 7.17 |
| Values at Standard Test Conditions STC | Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
| NOCT | Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |
Feature
The products are light weight; high efficiency; and conversion rate 18.55%.It can be used in households, camping, RVs, yachts, street lights and solar power stations. Using the latest component packaging technology, thinner, lighter, softer and longer life.
Product details
1. Safe to use with long service life . Environmental protection solar energy.
2. Strictly quality control ensure the stability and reliability .
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
Manufacturing Technique
Antireflective glass
Translucency of normal luminance is increased 2%
Module efficiency is increased 2%
Self-clean function
Service life 25 years
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Solar Cells
* High Efficiency PV Cells, Anti-Pid
* Appearance Consistency
Frame
Stock-size
Silvery
Thickness 30/35/40/50mm
Stress test

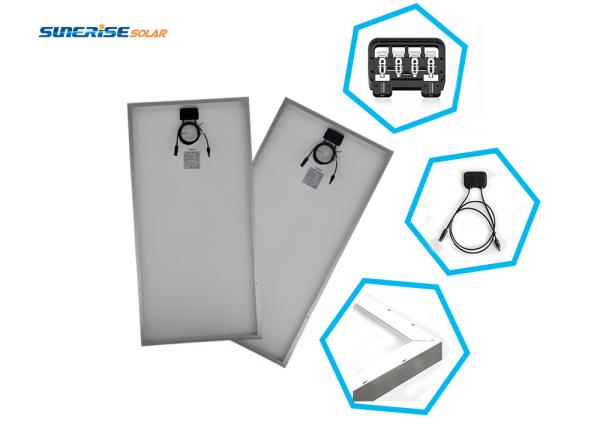

Solar Juction Box
Conventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP68 protection level
Heat dissipation
Long service life
PV Connector
* 4mm2 Qualified cable with PV Connector
* 500N Tensile Strength
Detailed Image
