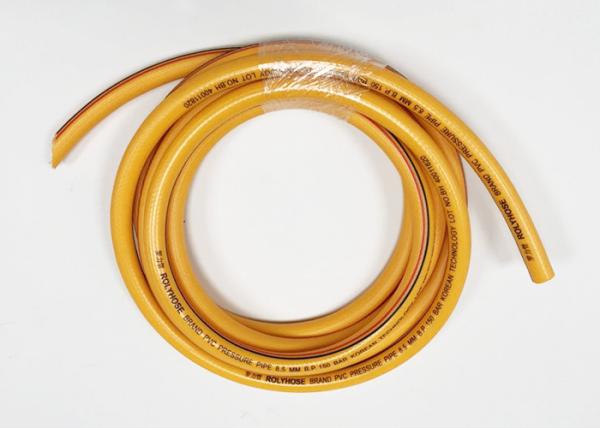

Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Lightweight PVC Spray Hose Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose
Specifications
Brand Name :
ET
Model Number :
PVC Spray Hose
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
Working Temperature :
-5℃ to +65℃
Features :
Lightweight,Abrasion & Chemical Resistant, Weather Resistant
Transporting Medium :
Water, Air,Light Chemical Solution
Inner Diameter :
6.5mm-25mm
Quality Level :
3 Layers 30 Bar, 5 Layers 50 Bar
Bursting Pressure :
60bar-180bar
Description

Plastic PVC Power Hydraulic Fiber Reinforced Braided Water Spray Pipe Hose

size 1/4"-1"
color yellow, orange, red etc.
weight 0.096-0.563kg/m
standard passed the ROHS, PAHS test.
features brightness, Abrasion, weathering, oil, acid and alkali.
application used in high pressure industrial, compressors,

With improved PVC material, life expectancy is ten years
Triple pressure structure
Cold resistant, heat resistant, wear resistant, folding resistant, explosion proof

1. High quality materials
2. The inner wall is smooth and flat
3. Four seasons soft and anti-twist
4. Polyester explosion-proof net pressure explosion-proof
5. Exquisite appearance, quality assurance

Advantage:
High pressure resistance and good flexibility at low temperatures. Flame retardant and wear resistant. Resistant to strong acid and alkali, no cracking, no hardening, safe to use.

Feature:
1. This product is made of high quality PVC and synthetic materials. It is soft and flexible, safe and reliable, with good pressure resistance, good weather resistance and excellent sealing.
2. High-quality raw materials produce no odor, strong bending ability and strong durability.
3. Wide temperature range, no deformation, strong corrosion resistance.
4. Add flame retardant ingredients, self-extinguishing from fire

Temperature ranges –5℃ to 65℃.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6.5 0.452 11.5 0.096 30 450 100 300
6.5 0.493 12.5 0.121 50 750 100 300
5/16 8.5 0.531 13.5 0.117 30 450 100 300
8.5 0.571 14.5 0.146 50 750 100 300
3/8 10 0.629 16 0.166 30 450 100 300
10 0.700 17 0.200 50 750 100 300
1/2 13 0.787 20 0.250 25 375 100 300
13 0.827 21 0.290 50 750 100 300
5/8 16 0.944 24 0.340 20 300 100 300
16 0.985 25 0.391 40 600 100 300
3/4 19 1.102 28 0.450 20 300 100 300
19 1.142 29 0.509 30 450 100 300
1 25 1.339 34 0.563 20 300 100 300
