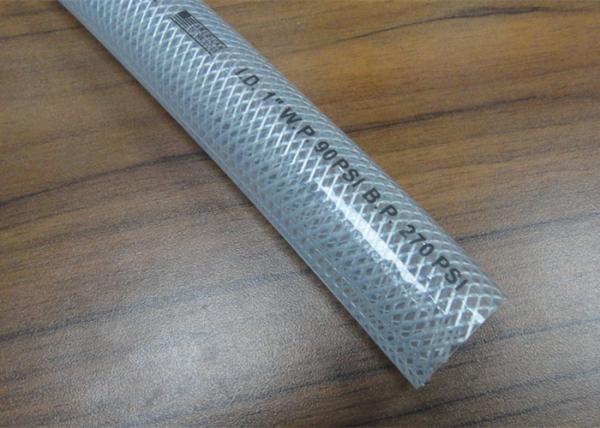

FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
FDA Food Grade PVC Braided Hose / Transparent Fiber Reinforced Braided Net Pipe Tubing
Specifications
Brand Name :
ET
Model Number :
1/8"-3''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
material :
pvc
name :
pvc fiber reinforced hose
size :
1/5'' - 3''
thickness :
2.5mm-8mm
inner diameter :
5mm-76mm
work pressure :
4ba -12bar
Description

FDA food grade drinking water hose / pvc fiber reinforced hose pipe tube

Product features

FDA Grade

Suitable for use with liquids, chemicals and gases

Pneumatic and vacuum line

For use with hose barbs and clamps

Material: PVC and polyester yarn

Inner Diameter: 5mm-76mm; 1/5inch-3inch

Length: standard 150ft, 300ft, or customized

Main Color: Clear

Thickness: 2.5mm-8mm

Product description

This non-toxic, FDA grade, reinforced vinyl tubing is engineered for use and application.

It is suitable for use with a variety of liquids, chemicals, and gases. It is excellent for pneumatic and vacuum lines.

This tubing is flexible and durable; as well as corrosion and abrasion resistant. Sold in a variety of diameters and lengths.

This tubing is packaged on a spool and can be cut to desired length.

It is very flexible and can easily stand up to situations requiring rough handling while maintaining dimensional stability.

Permits installer to make smooth, tight turns. Saves time and labor.

Trimming or cutting is simple and can be clamped using hose, wire or ratcheting clamps using barbed fittings or connectors.

Specification:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/5 5 0.098 2.5 0.076 12 175 100 300
1/4 6 0.098 2.5 0.087 12 175 100 300
5/16 8 0.098 2.5 0.105 10 145 100 300
3/8 10 0.098 2.5 0.130 10 145 100 300
1/2 12 0.118 3 0.185 9 130 100 300
5/8 16 0.118 3 0.230 8 116 100 300
3/4 19 0.118 3 0.270 6 87 100 300
7/8 22 0.118 3 0.305 5 73 100 300
1 25 0.118 3 0.340 4 60 100 300
1-1/4 32 0.157 4 0.590 4 60 100 300
1-1/2 38 0.157 4 0.690 4 60 50 150
1-3/4 45 0.217 5.5 1.140 4 60 50 150
2 50 0.236 6 1.380 4 60 50 150
2-1/2 64 0.276 7 2.030 4 60 50 150
3 76 0.630 8 2.750 4 60 50 150
