Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Good Flexibility PVC Anti Static Wire Reinforced Water Hose For Fuel Petroleum
Specifications
Brand Name :
ET
Model Number :
1/5"-3''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
pvc steel wire hose
size :
1'' to 4''
material :
pvc and steel wire
inner diameter :
25mm-100mm
outer diameter :
33mm-118mm
reinforcement :
zinc-plated steel wire
Description

pvc anti static steel wire reinforced delivery and discharge hose for water fuel petroleum

color transparent, red, green, blue, grey yellow, orange etc.
wall thickness 4mm-9mm
length 20m, 30m, 50m,100m/roll or as consumer's requst
working pressure 3bar to 8bar
features anti-static, non-toxic, soft, light weight etc.
standard ISO; SGS;

PVC Anti-static Steel Wire Reinforced Delivery and Discharge Hose for Fuel and Petroleum, which is also called Anti-static Hose, Steel Wire Hose, Petroleum Delivery Hose, Fuel Discharge Hose, Petroleum Discharge Hose etc. which is specially designed for applications where easily generating static, such as buildings, factories, mine and oil storage.

Application:

The PVC Anti-static Steel Wire Reinforced Hose is specially used for suction or transfer of oils, fuels, gas, powder in factory or plants where easily generating static, such as mining industry, constructions, buildings, oil storages and other applications.

Construction:

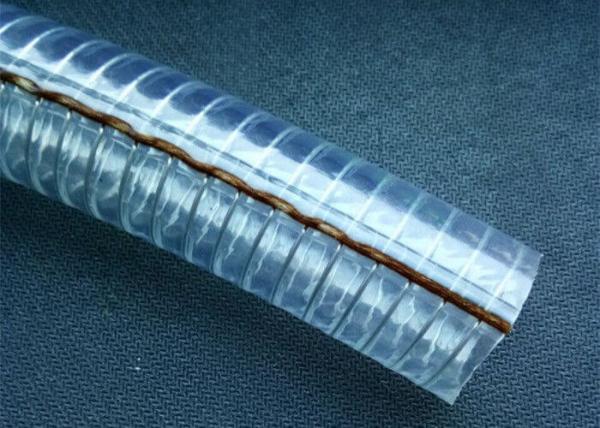

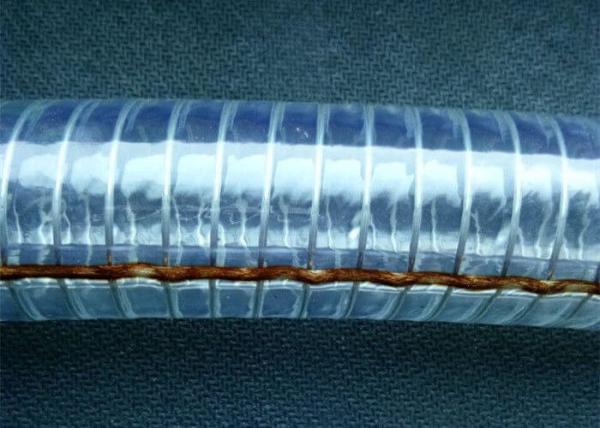

The PVC Anti-static Steel Wire Reinforced Hose is constructed with high quality PVC materials, high strength steel wire is spirally inserted in the tube, copper wire is horizontally inserted in the tube, smooth inner and outer, crystal clear wall.

Features:

The PVC Anti-static Steel Wire Reinforced Hose is special anti-static, transparent with good flexibility, small bending radius, UV and weather resistant, high-negative pressure resistant, high corrosion resistant, non-toxic and long service life, copper wire inserted in the tube to prevent flowing blocked and protect users from electric shock or impingement.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
