Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm
Specifications
Brand Name :
Wellful
Model Number :
M4408
Certification :
CE,ISO
Place of Origin :
Jiangsu,China
MOQ :
1500㎡
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
400000meters per month
Delivery Time :
20-30 days for 20ft container,it is negotiable
Packaging Details :
Wood Pallet(Fumigation Free)+Cartoon
Material :
Vinyl
Surface :
UV Coating
Back :
Dry Back
Size :
6''X36''(152.4mmX914.4mm)
Thickness :
2.0mm/2.5mm/3.0mm
Wear Layer :
0.07mm/0.1mm
Packing :
36pcs/24pcs or as your reqest
Fire resistance :
Bf1 only second to marble
Application :
School/cinema
Warranty :
12months
Description
  • Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm

  • Description of vinyl flooring:
Performance Result
Size stability Good
Overall Thickness 3.0mm/2mm/1.8mm
Piece per box 36pcs
Peeling stength of layers Pass
Shear forces of layers Good
Residual indentation after static load 0.01mm
Color fastness to light ≥6
Fire resistance Bf1
Slip resistance R9

​

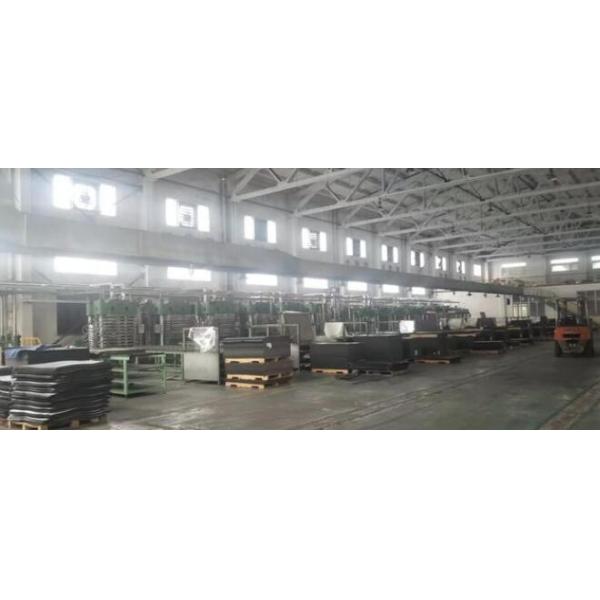

  • Workshop and testing during production

1.Bottom layer workshop: production of PVC floor substrate (main ingredients: PVC, stone powder)

2.Hot pressing workshop: the wear-resistant layer, color film, middle layer,bottom layers are pressed into semi-finished products.

3.Color film workshop: cutting color film and wear-resistant layer into required sizes.

4.Press workshop: PVC floor will be cut into fixed specifications, and packaging.

5.Water cooling and UV coating :release the expansion f the vinyl flooring to make sure size stability and surface wear resistant.

6.Cutting the floor into different sizes:the most popular size:

For plank it is 6''X36'',7''X48'',9''X48''

For tile it is:600mmX600mm,18''X18''

7.Trimming or slotting if needed:

Trimming makes the floor edge smooth,better for installation.

Slotting makes interlock on the edge of the floor,it is automatic operation,improve the efficiency and quality.

8.Quality inspection:Actually,this step is undergoing during basic material workshop,hot pressing workshop,cutting workshop,etc.

9.Packing:normally it is 24pcs for 18''x18'',36pcs for 6''x36'',if you have any requirements,please let us know.

Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm

​

  • Performance result

Performance Standard
Shrinkage(Length change rate) Within 0.25％,(80 centi degree,Keep 6h,Take out and check after 1 hour at least
Curl up Within 0.5mm ,80centi degree,keep 6h,Take out and check after 1 hour at least
Wear abrasion Below 0.015g(cs－7abrasion wheel,weight on noth side 500g,rotary 1000Rev.
Back retention 20minabove(120centi degree,4h,take out after 1h)
Strength 1.5kgf/cm,Universal tensile testing machine,300mm/min,Max. value
Softness Middle material 56-58,basic material58-60,4kg weights on the tester,read the max. Value.
Weight 3.0mm,5100g±10%,2.0mm,3800g±10%,
Frozen ＜0.5mm,Average value of four corner warpage of freezing

  • Advantages of PVC floor:

​1.Waterproof and antiskid,

2.Super wear resistance,

3.Light weight,

4.Convenient construction,

5.Good flexibility,

6.Good thermal conductivity,

7.Easy maintenance,

8.Environmental protection,

9.Fire retardant,

10.Acid and alkali resistance

Wear Resistance PVC Floor Thickness 3.0mm / 2,0mm / 1.8mm

You are welcomed to contact us through email.

sales@wellful-vinyl.com

Whatsapp:+86-13057223323

Wechat:+86-13057223323
