Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
SIEMENS Brand
Contactor :
SIEMENS OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications.
Applications
The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply networks, sewage pipelines, residential decoration, chemical transportation, and gas distribution lines. These pipes feature exceptional strength, structural integrity, chemical resistance, durability, thermal stability, non-toxic safety properties, and cost-effective maintenance.
Production Process
  • PVC powder + additives mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum and cooling tank
  • Spray cooling system
  • Haul-off mechanism
  • Precision cutting
  • Discharge rack or pipe belling
Technical Specifications
Model Pipe Diameter (mm) Extruder Model Motor Power (KW)
LB-32F 16-32 (Four Pipe) SJSZ65/132 37 AC
LB-32E 16-32 (Double Pipe) SJSZ51/105 22 AC
LB-32W 16-32 (Double Pipe) SJSZ65/132 37 AC
LB-40E 16-40 (Double Pipe) SJSZ51/105 22 AC
LB-40W 16-40 (Double Pipe) SJSZ65/132 37 AC
LB-50E 16-50 (Double Pipe) SJSZ51/105 22 AC
LB-50W 16-50 (Double Pipe) SJSZ65/132 37 AC
LB-63W 16-63 (Double Pipe) SJSZ65/132 37 AC
System Components
Mixer Unit
Features specialized mixer design that reduces raw material self-friction, enhancing energy utilization efficiency. Operates with vacuum suction loading, low noise levels, and dust-free working conditions.

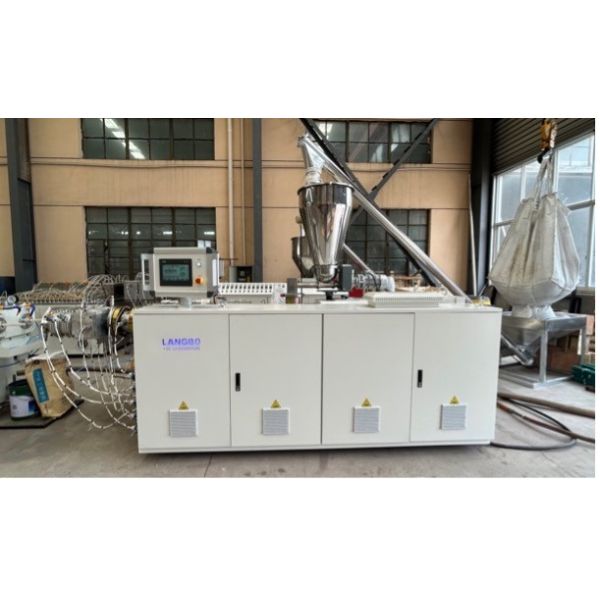

Twin Screw Extruder
Constructed with premium brand components to ensure production stability, efficiency, and machine longevity. The conical twin screw design accommodates raw material characteristics for homogeneous mixing, superior plastification, and optimal conveying efficiency.
Vacuum Calibration & Cooling System
Two-chamber structure comprising vacuum calibration and cooling sections. Both vacuum tank and spray cooling tank utilize stainless 304 steel construction. Advanced vacuum system ensures precise pipe sizing accuracy.
Haul-off Unit
Three-crawler track system maintains stable and steady pipe movement. Haul-off units feature customizable hauling modes adjustable through centralized control for specific production requirements.
Cutting Unit
High-precision encoder guarantees accurate and consistent cutting lengths. PLC control system enables manual operation cutting based on specific application needs.
Technical Features
  • Plastic pulverizer efficiently grinds hard and soft PVC materials into powder
  • Integrated dust collector minimizes environmental pollution
  • Automated main fan discharge reduces operator labor intensity
  • Accessible host door cover facilitates maintenance and cutter replacement
  • Water and wind dual cooling system prevents component overheating
  • Adjustable powder mesh range (15-100 mesh)
  • Simplified installation and maintenance with easy-access cleaning
  • Premium brand components including Siemens motors for extended operational life
  • Comprehensive optional accessories for customized budget and processing solutions
Delivery & Payment Terms
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% advance, 70% balance before delivery
Packing: Standard export wooden cases
Customer Support Services
  • One-year comprehensive machine guarantee
  • 24/7 technical support availability
  • Overseas installation and commissioning by qualified engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training programs
