Plastic Pipe Making Manufacturing Machine Gas Pipe Extrusion Production Line PPR Water Pipe Extrusion Machine

Introduction:

The Germany Technology 315mm PPR Pipe Machine is a high-performance water and gas pipe production line designed for manufacturing durable PPR (Polypropylene Random Copolymer) pipes used in agricultural irrigation, plumbing, and gas distribution. This advanced extrusion machine incorporates German engineering precision, ensuring superior pipe quality, high production efficiency, and long-term reliability.

Equipped with state-of-the-art extrusion technology, automatic cutting, and stacking systems, this production line delivers smooth, uniform, and defect-free PPR pipes in various diameters (up to 315mm). It is ideal for industrial and agricultural applications, providing leak-proof, corrosion-resistant, and high-pressure-resistant piping solutions.

Extrusion line details:

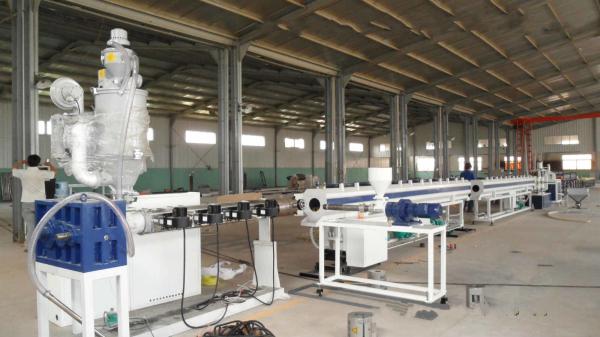

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

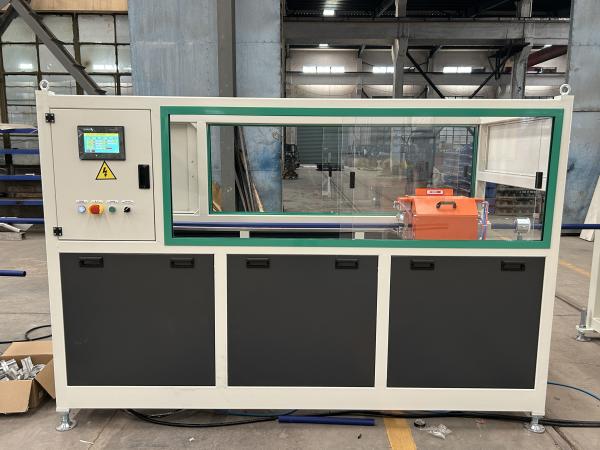

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

German Engineering Excellence

Precision manufacturing with high-quality components ensures stable performance and long service life.

High Production Efficiency

Fully automated extrusion, cooling, cutting, and stacking systems maximize output with minimal manual intervention.

Superior Pipe Quality

Produces smooth, bubble-free, and uniform PPR pipes with excellent pressure resistance and durability.

Energy-Saving & Eco-Friendly

Advanced extrusion technology reduces power consumption while maintaining high productivity.

Wide Application Range

Suitable for agricultural irrigation, water supply, gas pipelines, and industrial fluid transport.

User-Friendly Operation

PLC control system with touch-screen interface for easy adjustment and monitoring.

Low Maintenance & High Reliability

Robust construction with minimal downtime, reducing operational costs.
