Plastic PPR Water Electric Conduit Pipe Tube Extrusion Production Line / PPR Single Wall Corrugated Pipe Making Machine

Introduction:

The Plastic PPR Water Electric Conduit Pipe Tube Extrusion Production Line / PPR Single Wall Corrugated Pipe Making Machine is a high-efficiency manufacturing solution designed for producing durable PPR (Polypropylene Random Copolymer) pipes, widely used in water supply, electrical conduits, and drainage systems. This advanced extrusion line specializes in creating both smooth and single-wall corrugated PPR pipes with excellent dimensional accuracy, pressure resistance, and corrosion resistance. Equipped with precision temperature control, automatic cutting, and molding systems, it ensures consistent quality and high output, meeting international standards for plumbing and electrical applications.

Extrusion line details:

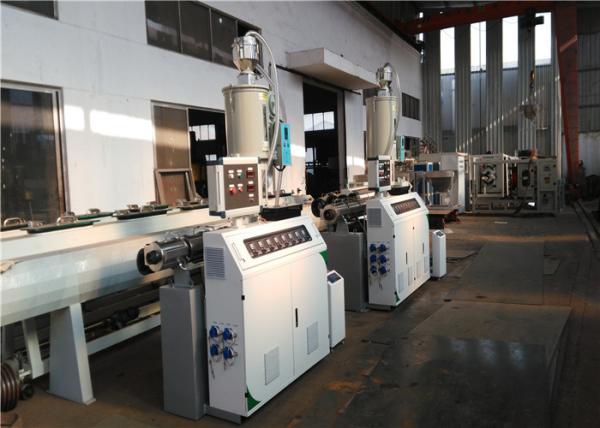

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

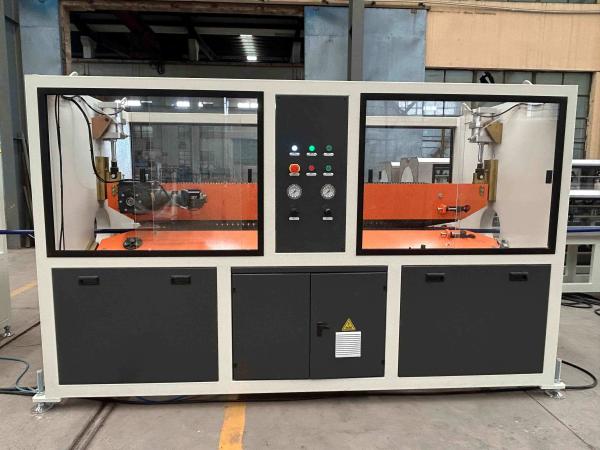

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High Efficiency & Output – Automated extrusion and cutting systems enable fast, continuous production, maximizing productivity.

Superior Pipe Quality – Produces PPR pipes with uniform wall thickness, high strength, and smooth/corrugated surfaces for versatile applications.

Energy-Saving Design – Advanced heating and cooling mechanisms reduce power consumption while maintaining stable performance.

Durability & Corrosion Resistance – PPR material ensures long service life, resisting chemicals, scaling, and abrasion.

User-Friendly Operation – PLC control system with touchscreen interface allows easy adjustment and monitoring of production parameters.

Low Maintenance – Robust construction and high-quality components minimize downtime and operational costs.

Ideal for manufacturers seeking reliable, cost-effective solutions for PPR pipe production!
