Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine
Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
SIEMENS Brand
Contactor :
SIEMENS OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description

Plastic PVC Gas Water Supply PVC Pipe Extruder Making Machine

Short desciption

PVC series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc. This machine consists of vacuum calibration tank, haul off unit, cutting unit, stacker etc. The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device, both vacum pump and driving motor apply famous brand. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type etc. Dust fre cutting machine, saw blade cutting machine or planetary cutting machine can be applied, the property of machine group is reliable. The production efficiency is high with special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe. It can also produce PP/PE/ABS/PPR/PEX/Silicon core pipe etc. The planetary cutting machine is controlled automatically with computer, it has such advantages of simple operation, reliable performance etc. It has reached international advanced level.

Tech Features & Advantages

Plumbing and Water Supply Systems (potable water distribution, drainage).
Sewer and Wastewater Systems (municipal sewer networks, underground drainage).
Electrical Conduits (protecting cables and wiring in construction).
Agricultural Irrigation (water transport for crop fields and greenhouses).
Industrial Piping (chemical transport, ventilation, and compressed air systems).

Producting process

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Specifications:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC

Product detail

1. Raw Material Mixing & Feeding

PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.

- The blended material is fed into the hopper of the extruder.

2. Extrusion & Pipe Forming

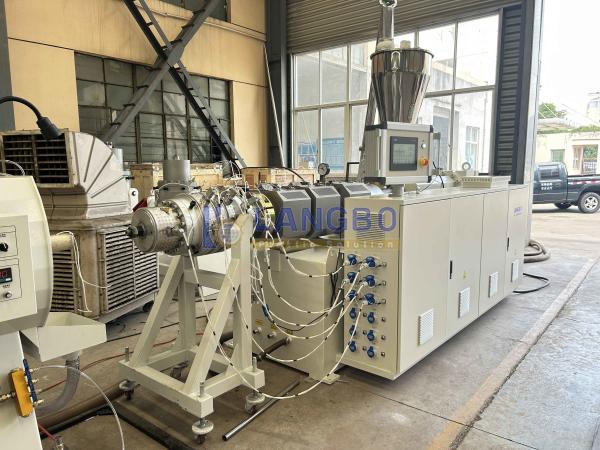

- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.

- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.

3. Vacuum Sizing & Cooling

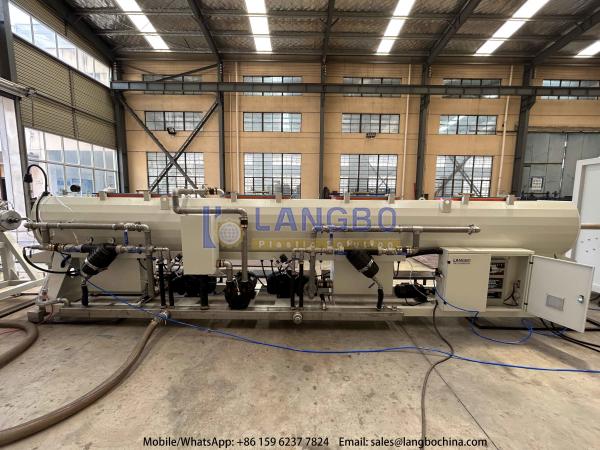

- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.

- It then enters a cooling water tank to solidify the structure and maintain shape stability.

4. Hauling & Cutting

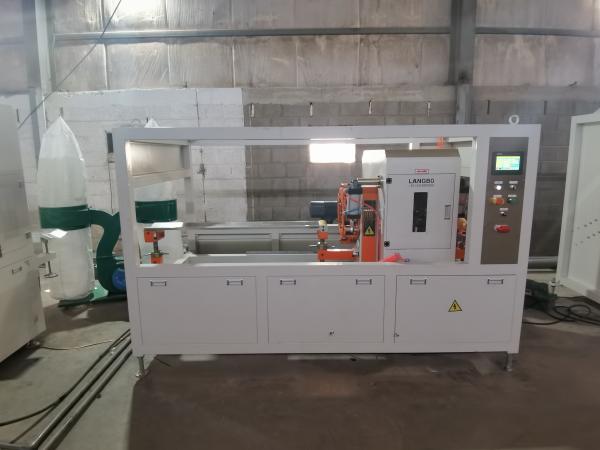

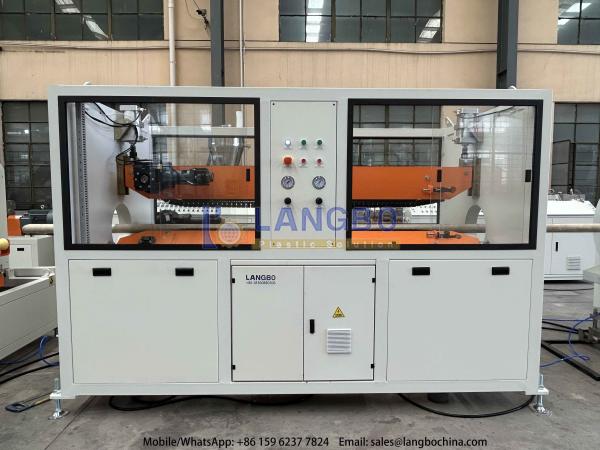

- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging

- The finished pipes are automatically stacked and packed for storage or shipment.

Technical Features:
PVC drainage pipe with various diameters and thick walls for agricultural water supply and drainage, building water supply and drainage.

PVC drainage pipe extrusion line consists mixer, feeder, twin screw extruder, extruding mould 50-200mm, shaper, vacuum tank, three jaw haul- off, planetary cutter, roll over table and crusher. The machine unit is reliable and has high production efficiency.
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
