Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line
Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
SIEMENS Brand
Contactor :
SIEMENS OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description

Plastic PVC Drainage Pipe Extruder Machine Production Line

Short desciption

PVC pipe production line typically includes material mixing, extrusion, cooling, cutting, and packaging. Key equipment involves a twin-screw extruder, vacuum calibrator, cooling tank, haul-off machine, and cutter. The process starts with blending PVC resin, stabilizers, and additives, then extruding molten material through a die to form pipes. Precise cooling ensures dimensional stability, followed by automated cutting to specified lengths. Designed for efficiency, the line produces durable, corrosion-resistant pipes widely used in construction, irrigation, and industrial systems. Advanced controls ensure consistent quality and customization for varying diameters and pressure ratings.

Tech Features & Advantages

Plumbing and Water Supply Systems (potable water distribution, drainage).
Sewer and Wastewater Systems (municipal sewer networks, underground drainage).
Electrical Conduits (protecting cables and wiring in construction).
Agricultural Irrigation (water transport for crop fields and greenhouses).
Industrial Piping (chemical transport, ventilation, and compressed air systems).

Producting process

PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

Specifications:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC

Product detail

1. Raw Material Mixing & Feeding

PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.

- The blended material is fed into the hopper of the extruder.

2. Extrusion & Pipe Forming

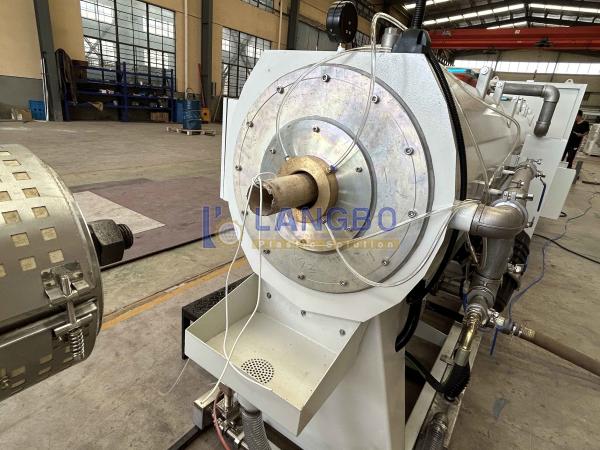

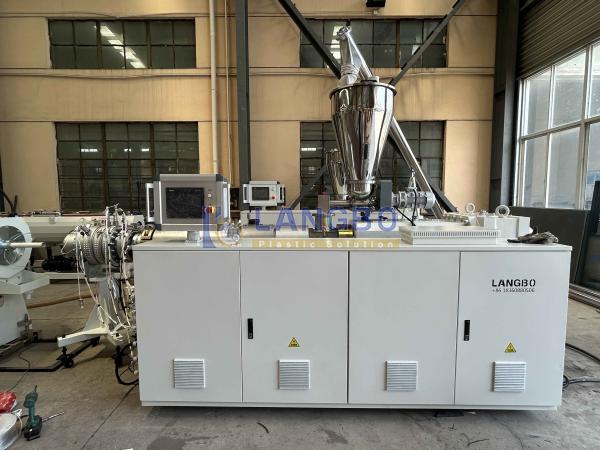

- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.

- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.

3. Vacuum Sizing & Cooling

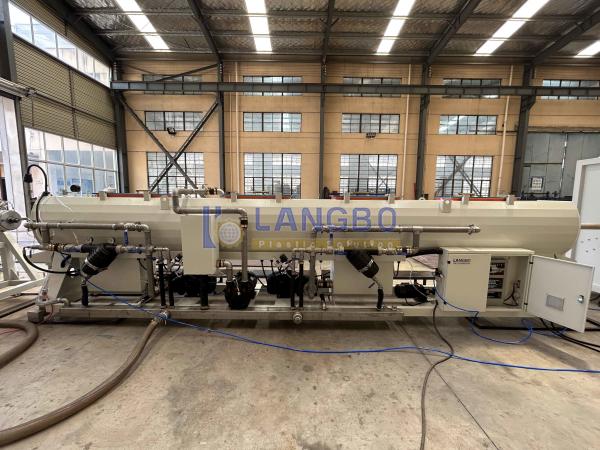

- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.

- It then enters a cooling water tank to solidify the structure and maintain shape stability.

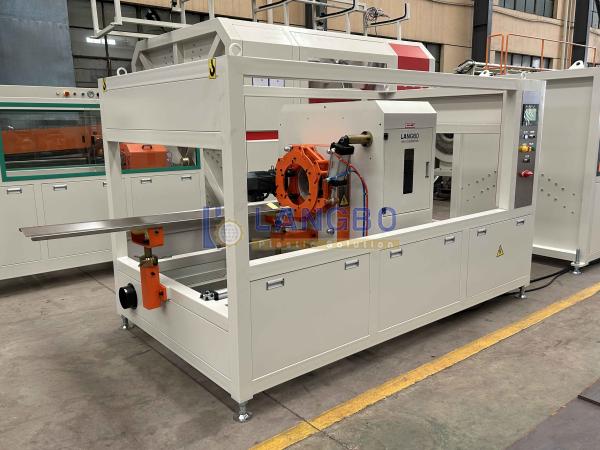

4. Hauling & Cutting

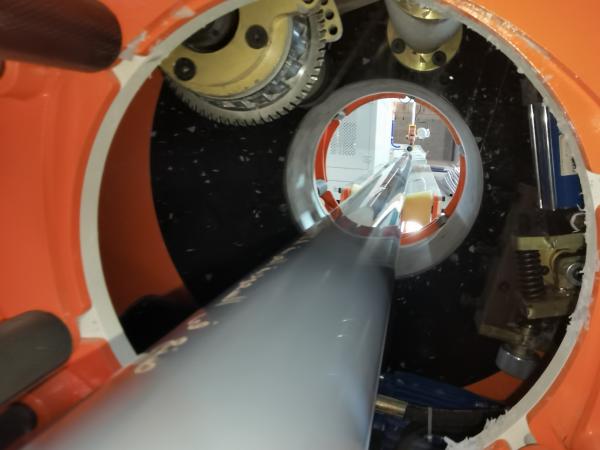

- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging

- The finished pipes are automatically stacked and packed for storage or shipment.

Technical Features:
1. THe plastic pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labor intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing, and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
Plastic PVC Drainage Pipe Extruder Machine Production Line Plastic PVC Drainage Pipe Extruder Machine Production LinePlastic PVC Drainage Pipe Extruder Machine Production Line Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line Plastic PVC Drainage Pipe Extruder Machine Production Line
Plastic PVC Drainage Pipe Extruder Machine Production Line Plastic PVC Drainage Pipe Extruder Machine Production Line
Our factroy
Plastic PVC Drainage Pipe Extruder Machine Production Line
Our Exhibition
Plastic PVC Drainage Pipe Extruder Machine Production Line
Our Goods Shipping
Plastic PVC Drainage Pipe Extruder Machine Production Line
