Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
SIEMENS Brand
Contactor :
SIEMENS OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description

Plastic PVC Electric Conduit Drainage Water Gas Suppy Tube Extrusion Production Line Making Machine
Short desciption

1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.
2. Saw cutter and planetary cutter for choice.
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Coincal twin screw extruder and parallel twin screw extruder for choice
5. Double-strand for four-strand for choice for small pipes


Tech Features & Advantages

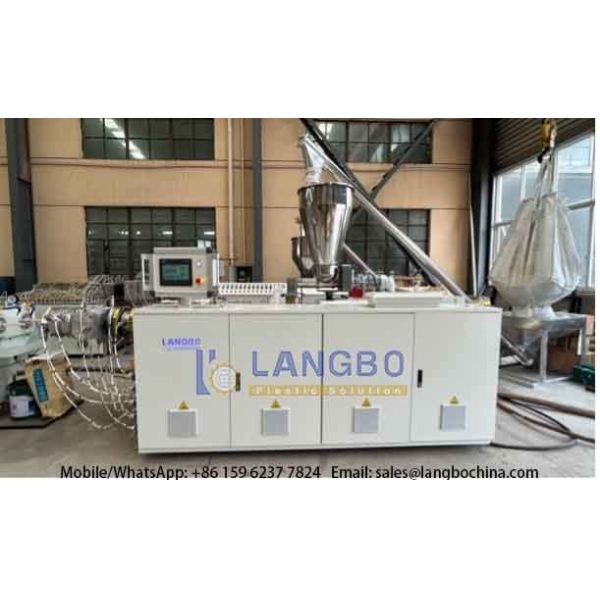

It can process various soft and rigid PVC, especially process powder directly into pipe shape. It consists conical twin-screw extruder, vacuum calibration tank, haul-off unit, stacker or belling machine, etc.
The screw extruder and haul-off unit adopt AC inverters. All electric parts are international well-known brand products, which guarantee quality of machine. The PLC and big true-color screen panel make control system with high automation.

Producting process
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration

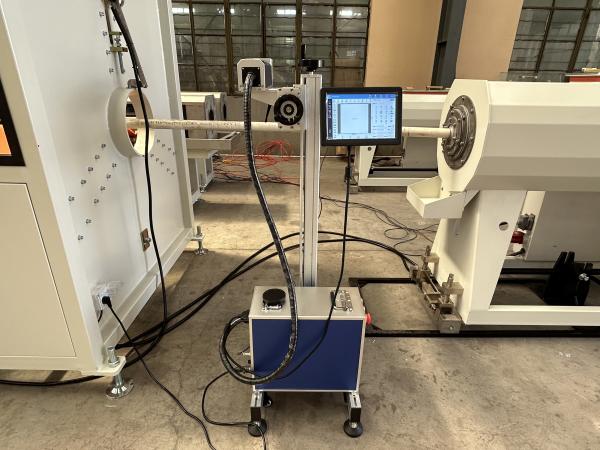

Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker

Specifications:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC

Product detail

1. Raw Material Preparation
- PVC compound (resin + additives) is mixed in a high-speed mixer to ensure homogeneity.
- The mixture is cooled and fed into the extrusion hopper.

2. Extrusion Process
- Single/Dual-Screw Extruder melts and compresses the PVC mix at controlled temperatures (160°C–200°C).
- The molten PVC is forced through a die head, shaping it into a pipe.

3. Sizing & Calibration
- The hot pipe passes through a vacuum calibrator to achieve precise diameter and wall thickness.
- Cooling tanks (spray or water bath) solidify the pipe.

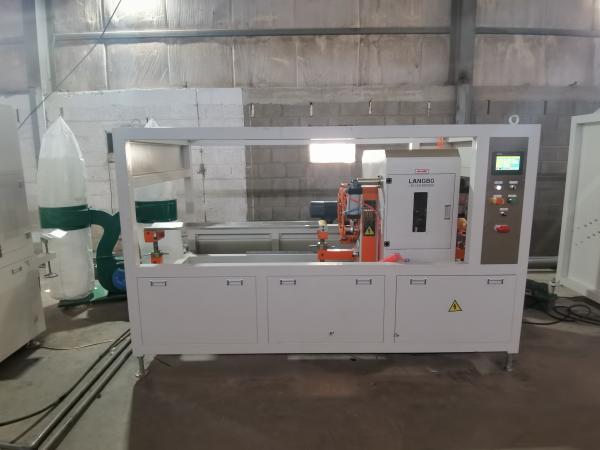

4. Pulling & Cutting
- A haul-off unit pulls the pipe at a synchronized speed.
- An automatic cutter** trims pipes to required lengths (e.g., 4m or 6m).

5. Stacking & Packaging
- Pipes are stacked by a conveyor system or robotic arm.
- Bundled and labeled for shipment.

Technical Features:
- High Output Efficiency – Continuous extrusion for mass production.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
