PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine
Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
SIEMENS Brand
Contactor :
SIEMENS OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description

PVC Plastic Pipe Manufacturing Extruder Machine

Short desciption

The PVC Plastic Pipe Manufacturing Extruder Machine is a high-performance industrial machine designed for the continuous production of PVC (Polyvinyl Chloride) pipes used in plumbing, irrigation, drainage, and electrical conduits. This machine ensures precision, efficiency, and durability in manufacturing pipes of various diameters and thicknesses.

Equipped with advanced extrusion technology, the machine features a robust screw and barrel system, precise temperature control, and a high-speed vacuum calibration system to ensure smooth production with consistent quality. It is suitable for both rigid and flexible PVC pipe manufacturing, offering customizable options for different industry requirements.


Tech Features & Advantages
Construction: Drainage, sewerage, and ventilation systems.
Agriculture: Irrigation pipes, greenhouse frameworks.
Utilities: Potable water distribution, electrical conduits.
Industrial: Chemical-resistant piping, cable protection.

Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

Specifications:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC

Product detail
Raw Material Feeding
PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

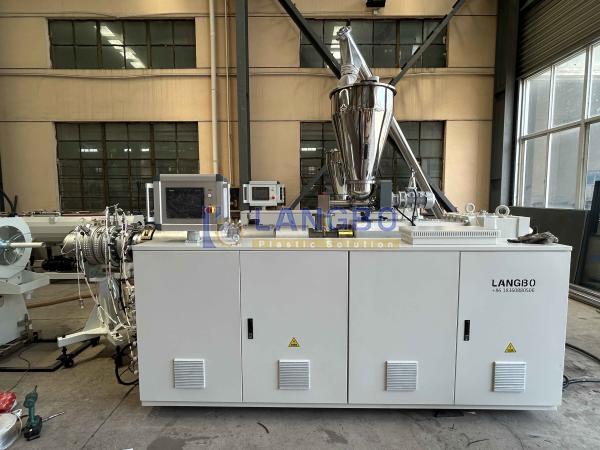

Twin screw extruder machine

The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

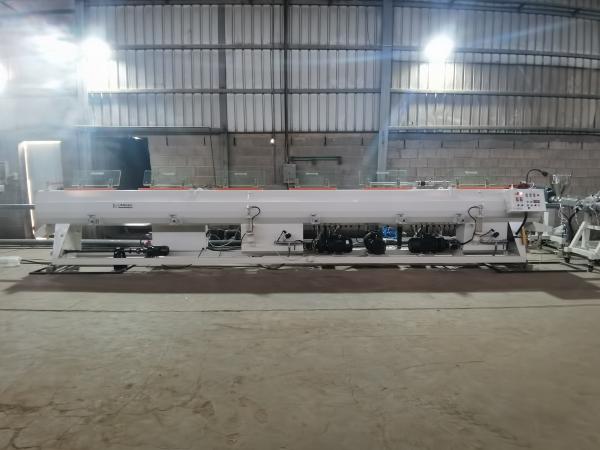

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.


Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

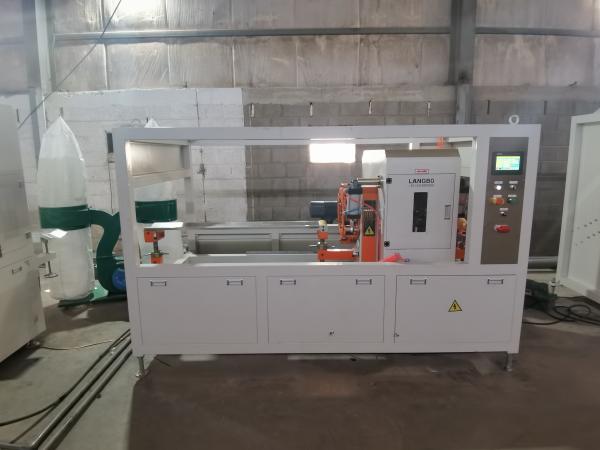

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.

Technical Features:
- High Output Efficiency – Continuous extrusion for mass production.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
PVC Plastic Pipe Manufacturing Extruder Machine PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine PVC Plastic Pipe Manufacturing Extruder Machine
PVC Plastic Pipe Manufacturing Extruder Machine PVC Plastic Pipe Manufacturing Extruder Machine
Our factroy
PVC Plastic Pipe Manufacturing Extruder Machine
Our Exhibition
PVC Plastic Pipe Manufacturing Extruder Machine
Our Goods Shipping
PVC Plastic Pipe Manufacturing Extruder Machine
