PE Pipe Production Machine Extrusion Line Making Machine Water Gas Oil Supply Pipe

APPLICATION:

PE (polyethylene) pipe production line is an automated system for manufacturing high-quality thermoplastic pipes. The line typically comprises material feeding units, single/twin-screw extruders, precision dies, vacuum cooling tanks, haul-off machines, cutting devices, and stackers. Advanced computerized control systems ensure stable extrusion, uniform wall thickness, and precise diameter tolerances. Key advantages include energy-efficient operation, high output, and adaptability to produce various pipe types in multiple diameters. The equipment's modular design enables quick mold changes and minimal downtime. Produced pipes exhibit exceptional corrosion resistance, flexibility, and durability, making them ideal for water supply, gas distribution, agricultural irrigation, and industrial fluid transport while meeting ISO/EN standards.

PE PIPE PRODUCTION SPECIFICATIONS:

PE solid-wall pipes applications:

Potable Water Supply Systems - Widely used for safe drinking water distribution due to their corrosion resistance and non-toxic properties.

Natural Gas and Fuel Transportation - Ideal for underground gas pipelines owing to high pressure resistance and leak-proof joints.

Industrial Fluid Transfer - Transports chemicals, acids, and abrasive liquids in factories, leveraging PE's chemical inertness.

Agricultural Sprinkler Networks - Supports pressurized irrigation systems with UV-stabilized pipes for long-term outdoor use.

Mining and Slurry Conveyance - Handles abrasive slurry transport in mining operations with wear-resistant PE formulations.

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Material Preparation

PE (Polyethylene) & Carbon Fiber Mixing: High-density polyethylene (HDPE) and carbon fiber materials are prepared and mixed to enhance strength and durability.

Extrusion Process

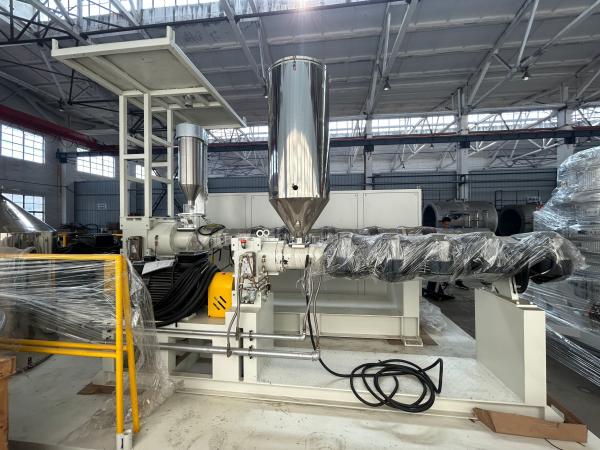

Single/Dual Screw Extrusion: The PE-carbon composite is melted and extruded through a screw extruder to form a continuous pipe profile.

Spiral Winding & Reinforcement

Helical Winding Mechanism: The extruded pipe is wound in a spiral pattern using a rotating mandrel or winding machine to enhance rigidity.

Cutting & Length Adjustment

Automatic Cutting: A servo-driven cutter trims the pipe to specified lengths.

Inspection & Quality Control

Dimensional Checks: Laser sensors measure diameter, thickness, and roundness.

Advantages

Automated Control: PLC system for precision in extrusion, winding, and cutting.

Energy-Efficient: Optimized heating and cooling systems reduce power consumption.

Customizable: Adjustable for different pipe diameters (e.g., 100mm–3000mm) and reinforcement levels.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

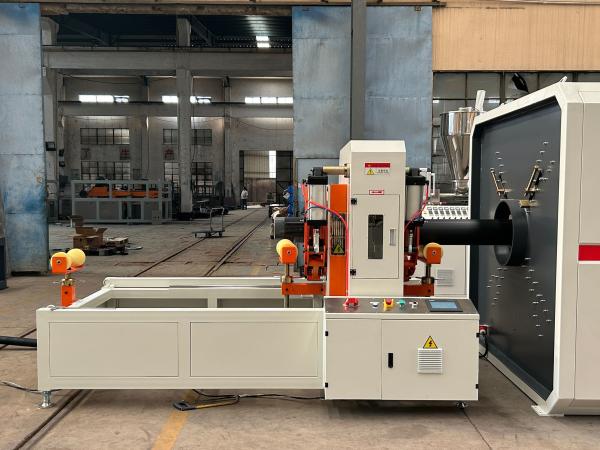

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
