Specifications
Voltage :
Customer demand
Automatic grade :
Full-automatic
Color :
Customised
Certification :
CE / ISO
LD Ratio :
33:1
Warranty :
1 Year
Packaging Details :
NORMAL PACKAGE
Processing type :
Extrusion Machine
Screw design :
Single-screw
Brand Name :
LB
Model Number :
LB
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C,T/T,
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Control :
PLC+Touch Screen
Material :
PE
Screw Diameter :
65mm
Description
16-630 mm PE Conduit Pipe Hose Twin/Single Screw Extruder Making Machine
This high-performance production line is designed for manufacturing polyethylene (PE) conduit pipes and hoses with diameters ranging from 16 mm to 630 mm. Widely used in electrical, telecommunications, and construction industries for producing durable, corrosion-resistant, and flexible conduit pipes.
16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine
PE Pipe Production Specifications
Model Pipe Diameter Extruder Extruder Power Capacity
LB-6320-63SJ65/3355AC150
LB-11020-110SJ65/3355AC150
LB-16075-160SJ75/3390AC280
LB-25090-250SJ75/33110DC350
LB-315110-315SJ90/33160DC450
LB-450160-450SJ90/33160DC450
LB-630315-630SJ120/33280DC850
LB-800500-800SJ150/33315DC1100
LB-1200710-1200SJ150/34400DC1350
Production Process Description
Raw material + master batches → mixing → vacuum feeder → material dryer → single screw extruder (small CO-extruder) → mould → vacuum calibration tank → spray cooling tank (water tank) → haul-off unit → cutting machine → stacker

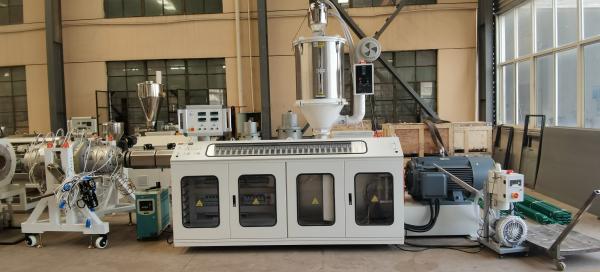

Single screw extruder with auto feeding machine. Extruder size according to different requirements of pipe diameter.
Pipe forming machine with forming mould. The forming machine can make vacuum type and normal type. Vacuum type is suitable for making corrugated pipe with joints, such as washing machine pipes and shisha hookah hoses.

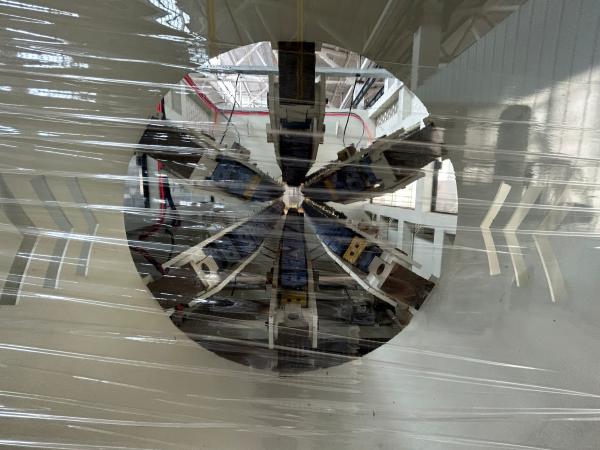

Haul Off (Puller) Machine: Pulls fresh pipe from the extruder through the vacuum and cooling tank.

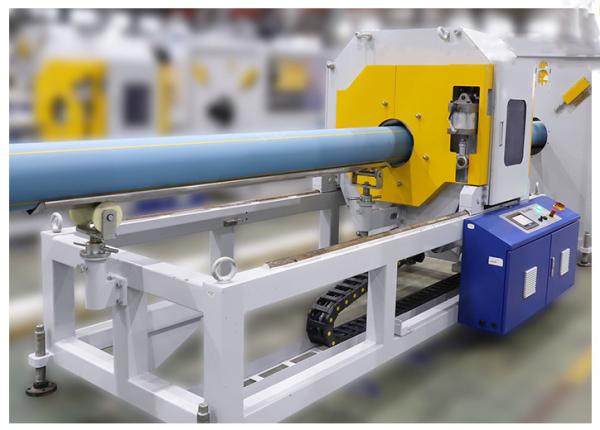

Cutter Machine: Cuts PE pipe to desired length programmed into the HMI.
Accumulator Machine: Maintains buffer between change over of coils.
Coiler Machine: Allows coiling pipe for sale and distribution.
Key Features
  • Extrusion System: Twin or single-screw extruder for uniform melting and high output
  • Diameter Range: 16 mm to 630 mm (adjustable based on molds)
  • Vacuum Calibration: Ensures smooth surface and precise dimensions
16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine 16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine 16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine 16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine 16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine 16-630 Mm PE Conduit Pipe Hose Twin Single Screw Extruder Making Machine
Pre- and After-Sale Services
  • Extensive industry experience and consistent focus on highest quality
  • Complete twin pipe vacuum sizing system
  • Controlled independently unitary structure twin pipe hauling mechanism
  • Synchronous cutting device with optional length set
  • Accurate adaption stacker
  • Highly motivated team with sophisticated process technology
  • Customized solutions for specific requirements
  • Lifetime spare parts at cost prices
