APPLICATION:

PE feed pipe is special polyethylene as raw material with a plastic extruder extrusion molding, applied to urban water supply pipe network, the irrigation water diversion project and agricultural irrigation project, especially suitable for acid and alkali corrosion environment, the plastic tubing.Because of using PE pipe hot melt, hot melt connection to realize the integration of the interface and pipe, and can effectively resist the pressure of hoop stress and axial stress, the impact of heavy metals and PE pipes don't add salt stabilizers, material of non-toxic, not scaling, do not breed bacteria, to avoid the secondary pollution of drinking water.PE feed pipe is special polyethylene as raw material with a plastic extruder extrusion molding, applied to urban water supply pipe network, the irrigation water diversion project and agricultural irrigation project, especially suitable for acid and alkali corrosion environment, the plastic tubing.Because of using PE pipe hot melt, hot melt connection to realize the integration of the interface and pipe, and can effectively resist the pressure of hoop stress and axial stress, the impact of heavy metals and PE pipes don't add salt stabilizers, material of non-toxic, not scaling, do not breed bacteria, to avoid the secondary pollution of drinking water.

PE PIPE PRODUCTION SPECIFICATIONS:

Production Flow:

Raw material+Color master batch---Vacuum Loader---Hopper Dryer---Single Screw Extruder---Color line Co extruder---Vacuum calibration Tank---Water Cooling Tank---Words Printer---Haul off---Cutting machine---Stacker/Winding machine.

Single Screw Extruder Machine

PE (Polyethylene) & Carbon Fiber Mixing: High-density polyethylene (HDPE) and carbon fiber materials are prepared and mixed to enhance strength and durability.

Extrusion Compound Preparation: The mixture is processed into a uniform compound for extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

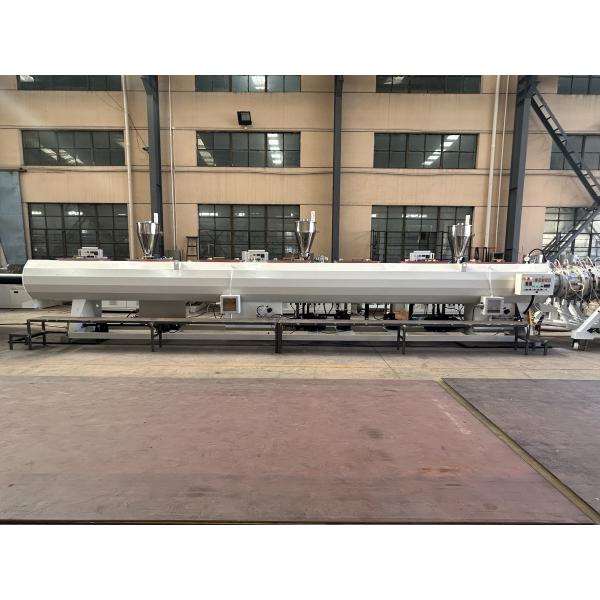

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

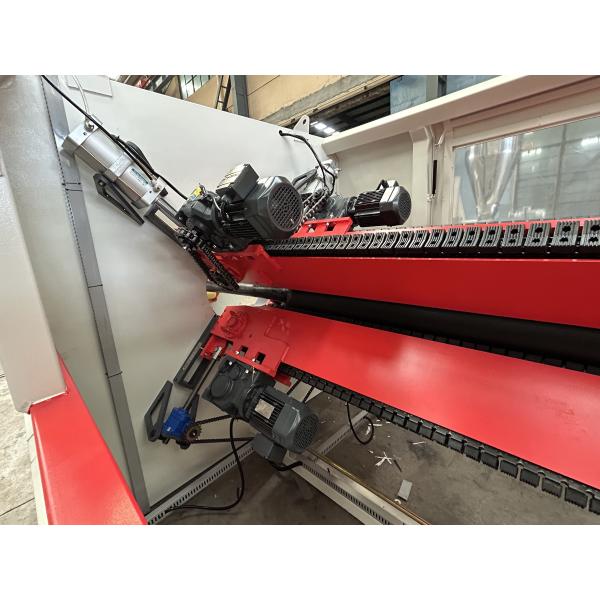

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

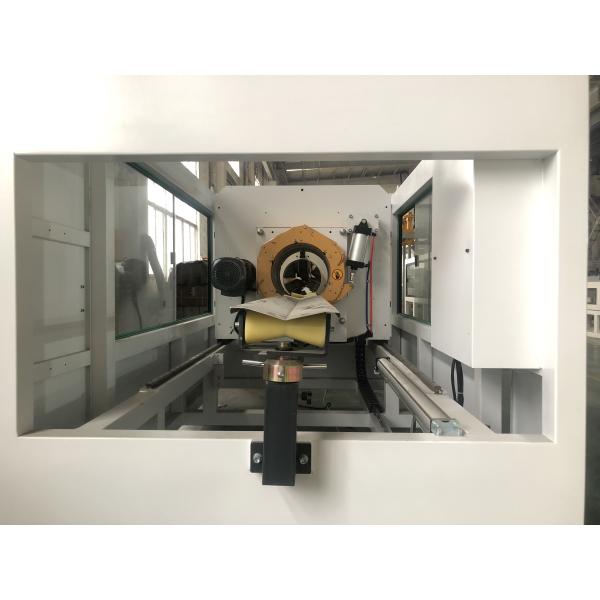

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Feature and Function of the machines:
The screw of the extruder is equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head for PE large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of cavity,and stable production.
Special design for sizing and cooling system by using film and water ring to PE material,which can fit for the requirement of PE.And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall.

Special design vacuum sizing tank can ensure the stability of size and roundness.Speed controllers are used in extruder,haul-off to offer stability and precision.
The whole line adopts PLC control system and large liquid crystal screen,which makes the operation very convenient.The line can be equipped with another extruder used for extruding the mark line.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
