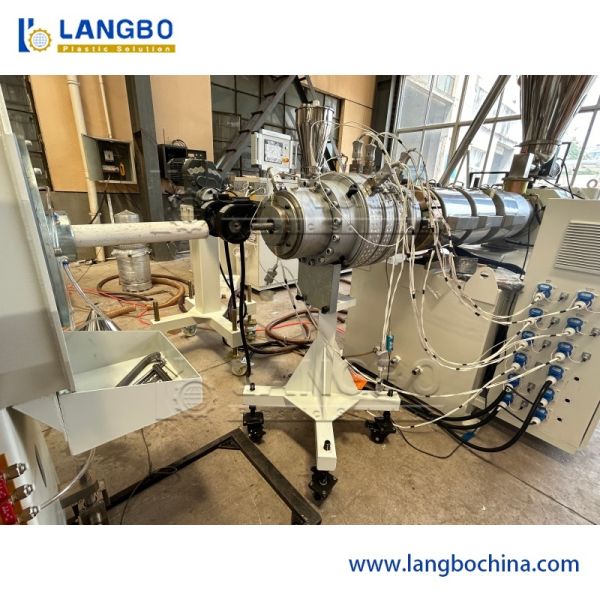

PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
Specifications
Brand Name :
LB
Model Number :
LB-110
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
PIPE DIAMETER :
75-250
EXTRUDER'S POWER :
55KW
COLOUR :
CUSTOMIZED
PIPE UMBERS :
SINGLE PIPE
RAW MATERIAL :
PVC POWDER & ADDITIVES
APPLICATION :
WATER SUPPLY PIPE
Voltage :
380V 50Hz or customized
Automatic grade :
Full-automatically
Screw design :
Twin screw and barrel
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Warranty :
18 months
Inverter :
ABB
Color :
Customizable
Raw material :
PVC Powder
Motor :
Brand
Contactor :
OR SCHNIDER
Screw and barrel :
Conical twin screw extruder
Screw diameter :
65/132
Pipe Application :
Water Supply
Packages :
Film and boxes
Payment :
T/T, L/C, Western Union
Delivery time :
60 days
Description
Our machinery supplies full ranges of PVC pipe making machines, which apply for U-PVC, C-PVC, M-PVC, O-PVC material. The PVC pipe extrusion line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 16mm to 630mm, with wall thickness range of 1-30mm.
Technical Features & Advantages
  • Special screw structure for efficient plasticization of different formula types
  • Flexible use of conical and parallel extruders for pipes with varying pressure levels and CaCO3 conditions
  • Spiral type die reduces melt seam on pipes, ensuring high density and excellent mechanical properties
  • Efficient single or double chambers vacuum and cooling tank system
  • Servo/frequency speed controlling with independent multi-track haul-off for even pulling and no deformation
  • Planetary cutter uses mechanical and hydraulic feeding for synchronous cutting and chamfering
Production Process
PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine.
Specifications
MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC
Component Details
Mixer: Specially designed to reduce raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.
Twin Screw Extruder: Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.
Vacuum Calibration & Cooling: Two-chamber structure with vacuum calibration and cooling parts. Both vacuum tank and spraying cooling tank use stainless 304 steel. Excellent vacuum system ensures precise pipe sizing.
Haul-off Unit: Three crawler track design ensures stable pipe running. Adjustable hauling model based on specific production requirements through general control.
Cutting Unit: High accuracy encoder ensures precise and stable cutting length. PLC control system allows manual operation for specific applications.
Additional Technical Features
  • Plastic pulverizer easily grinds all types of Hard & Soft PVC into powder
  • Dust collector effectively reduces dust pollution
  • Main fan discharging reduces operator labor intensity
  • Host door cover opens for convenient maintenance and cutter replacement
  • Water and wind double cooling system prevents overheating of bearings and components
  • Adjustable powder mesh (15-100mesh)
  • Easy installation and maintenance with accessible cleaning
  • Well-known brand accessories including motors for long-term operation
  • Wide range of optional accessories for customized solutions based on budget and requirements
Delivery Information
  • Delivery: 30 days after order
  • Warranty: 12 months
  • Payment: T/T 30% in advance, T/T 70% before delivery
  • Packing: Standard export wooden case
Our Service
  • One year guarantee for whole machine
  • 24 hours technical support
  • Overseas installation & commission service by our engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Training service for operators
Product Images
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
Our Factory
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
Our Exhibition
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
Our Goods Shipping
PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
