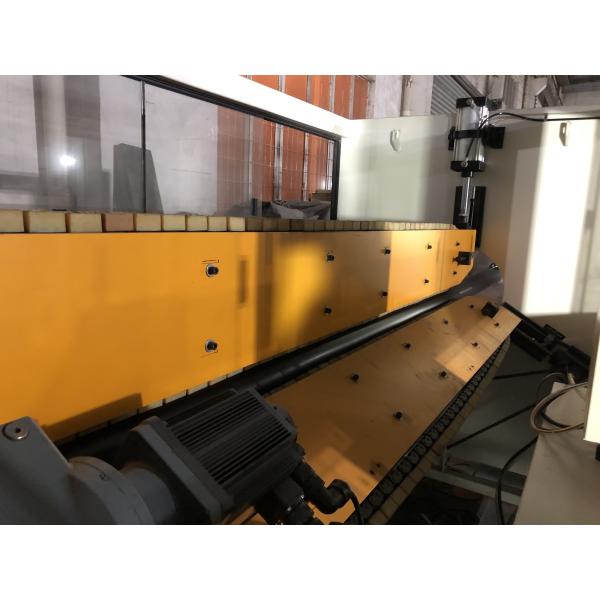

Plastic PE Single Wall Conduit Pipe Extrusion Machine Shirnking Hose Shisha Hookah Pipe Hose Making Machine

APPLICATION:

Plastic Shrinkage Hose Pipe

1.Introduce of PE Single Wall Corrugated Pipe production line.

(1)Single wall corrugated pipe equipment production line diameter form 9mm up to 110mm.

(2)Used for: Bellows is widely used in instrumentation. Its main purpose is to be used as a measuring component of pressure measuring instruments to convert pressure into displacement or force. The wall of the bellows is thinner and has a high sensitivity. The measuring range is from tens of Pa to tens of MPa. Its open end is fixed, the sealed end is free, and the auxiliary coil spring or reed is used to increase the elasticity.

(3)This machine also can produce:shisha hose,shirnking hose,magic telescopic hose,flexible corrugated pipe.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Optional

Extrusion Die Heads

An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.

Key Advantages of PE Pipe Extrusion Line

Advantages:

All parts are high standard for exporting..use domestic and foreign well known brands Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw we will according to your pipe diameter and speed match suitable motor to save energy ect.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
