Multi Application PE Pipe Extrusion Machine Conduit Pipe Making Machine

APPLICATION:

Our Multi Application PE Pipe Extrusion Machine is a state-of-the-art system designed for manufacturing high-quality PE pipes and conduit pipes with precision and efficiency. Suitable for a wide range of applications, including water supply, gas distribution, electrical conduits, and telecommunications, this machine ensures consistent output with excellent durability and dimensional accuracy.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Pipe Extrusion Line Process Flow

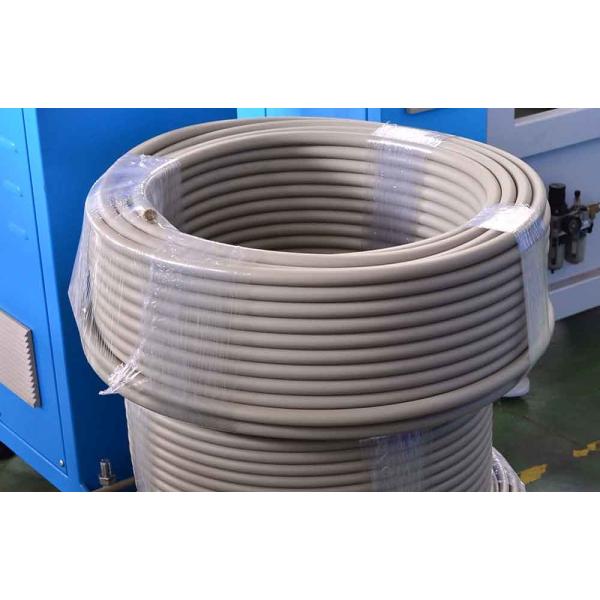

SINGLE-SCREW EXTRUDER---DIE HEAD & MOULD---VACUUM WATER COOLING TANK---WATER COOLING TANK---TRACTION---CUTTING MACHINE---AUTOMATIC UNLOADING RACK---SINGLE POSITION WINDER

Extrusion

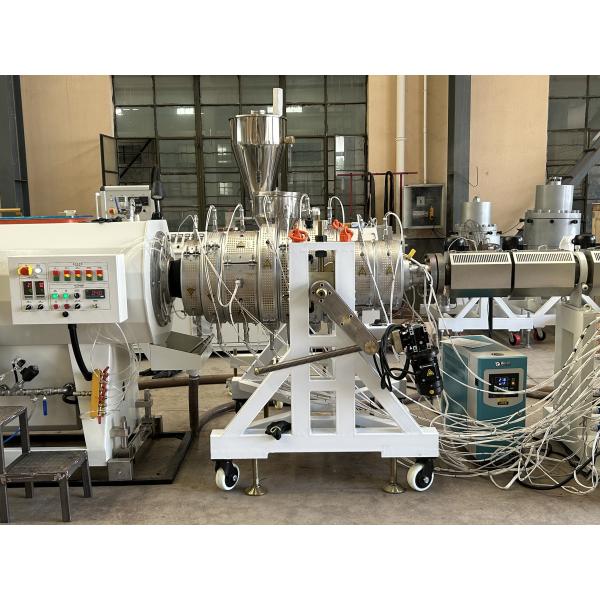

Melting & Plasticizing: Resin is fed into the extruder barrel, where a rotating screw melts and homogenizes the material

Pipe Sizing & Calibration

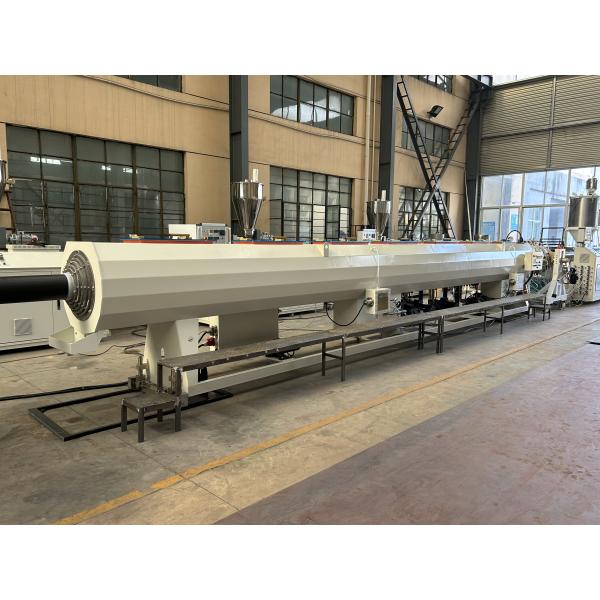

Vacuum Sizing Tank: The hot pipe enters a vacuum tank to solidify its outer diameter (OD) and ensure dimensional accuracy.

Pulling & Haul-Off

Haul-Off Unit: Motorized crawler track tracks pull the pipe at a controlled speed, synchronizing with extrusion output.

Cutting & Stacking

Cutting Saw: An automatic cutter slices the pipe to specified lengths (e.g., 6m, 12m).

Quality Control

Wall Thickness Monitoring: Ultrasonic/laser sensors verify uniformity.

Key Advantages of PE Pipe Extrusion Line

1.Automated systems minimize downtime and maximize productivity.

2.Optimized heating/cooling systems reduce energy consumption.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
