Specifications
MARK LINE :
YES
Voltage :
380V 50HZ 3Phase(Customized)
Haul-off :
Four haul-offs
PIPE DIAMETER :
16-63MM
Cutter :
Plenetary cutter
Screw design :
Single screw
Warranty :
12 months
Motor power :
75KW
SCREW DIAMETER :
65/33
Color :
Customised
Certification :
CE / ISO
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Extruder power (kw) :
75KW
Automatic grade :
Full-automatic
Brand Name :
LB
Model Number :
LB-400
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
USD, RMB, EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Control :
PLC+Touch Screen
COLOUR :
CUSTOMIZED
APPLICATION :
WATER SUPPLY CONDUIT
Description
16-63mm HDPE Pipe Extrusion Line With 65/33 Extruder With 55kw Motor
Product Overview

The 16-63mm HDPE pipe extrusion line with 65/33 extruder and 75kw motor is engineered for high-performance production of HDPE pipes widely used in industrial, chemical, and decorative applications.

Key Advantages
  • High production capacity up to 300-350kg/h
  • ABB inverter frequency control system
  • Premium quality screw and barrel components
  • Chinese famous brand gearbox
  • Schneider electrical components
  • Comprehensive installation, commissioning, and training services
  • Lifelong after-sales support
Processing Process

PE granules → Material feeder → Single screw extruder → Mould and calibrator → Vacuum forming machine → Two-staged spraying cooling machine → Haul-off machine → Knife cutter → Stacker

Technical Specifications
Model LB110 LB250 LB315 LB400
Pipe Range 20-110mm 75-250mm 110-315mm 180-400mm
Screw Model SJ65 SJ75 SJ75 SJ75
Motor Power 55KW 90KW 132KW 160KW
Output 150kg 220kg 400kg 600kg
Component Details
Single Screw Extruder Machine

Crafted with top brand components to ensure production stability, efficiency, and machine durability. Features international standard single screw and barrel with strong rigidity for long service life and superior plasticizing effect.

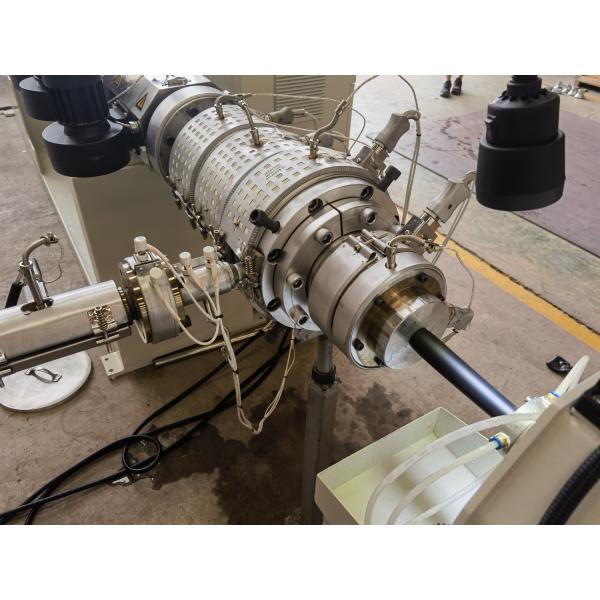

Mould

Spacious flow channel design guarantees high extrusion capacity and optimal melting effect. Manufactured and inspected by experienced professionals with optimized temperature control and flow channel design for precise melt temperature management.

Vacuum and Cooling Tank

Constructed from stainless 304 steel with an excellent vacuum system for precise pipe sizing. The holder in the first step ensures proper pipe shaping and provides additional power for pipe movement.

Haul-off Unit

Ten crawler track system ensures stable and steady pipe movement. Unique mechanism prevents pipe ovality while specialized belt design assures proper pulling without slippage.

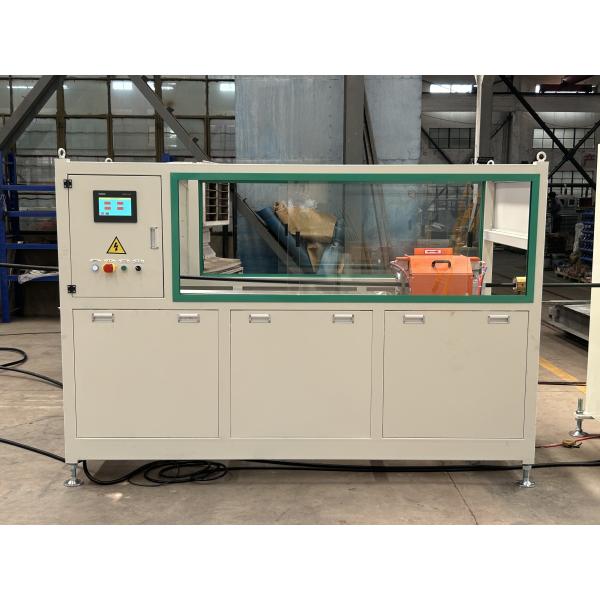

Cutting Unit

Offers two cutting methods including rapid cutter and planetary cutter. Cutting method can be switched randomly according to produced pipe material requirements.

Tipping Table

Manufactured from 304 quality stainless material with iron structure, featuring sturdy construction and heavy load bearing capacity. Rubber wheels securely hold pipe products without risk of scratching.

Product Images
16-63mm HDPE Pipe Extrusion Line with 65/33 Extruder and 75KW Motor for High Production Capacity 16-63mm HDPE Pipe Extrusion Line with 65/33 Extruder and 75KW Motor for High Production Capacity 16-63mm HDPE Pipe Extrusion Line with 65/33 Extruder and 75KW Motor for High Production Capacity 16-63mm HDPE Pipe Extrusion Line with 65/33 Extruder and 75KW Motor for High Production Capacity 16-63mm HDPE Pipe Extrusion Line with 65/33 Extruder and 75KW Motor for High Production Capacity
