Specifications
Brand Name :
LANGBO
Model Number :
LB
Certification :
CE, ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
USD, EUR
Payment Terms :
L/C,T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
60 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Condition :
New
Automatic Grade :
automatic
Capacity :
400kg/h
Plastic Processed :
TPU, EVA, TPEE, PP, PE, PVC, ABS
Screw Design :
Double-screw
INVERTER :
ABB
Warranty :
2 years
Electrical components :
or Schnider
Packing method :
Wooden and film packages
Delivery time :
45 days
Description

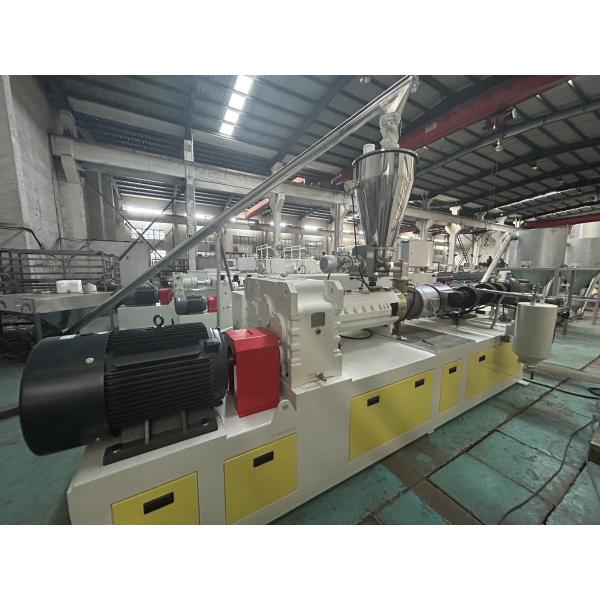

Hot Cutting Plastic Pelletizing Machine
PVC Hot Cutting Pelletizing Line / Plastic Granulating Machine
Applications
With different screw designs, this machine can granulate recycled materials including rigid PVC, soft PVC, and waste PVC. It enables continuous, stopless production and features pneumatic conversion with strong-wind blowing. The system includes an adjustable stainless steel storage container and operates at high speeds for extended periods while maintaining stable extrusion.
Key Features
  • Advanced equipment with precise pelletizing and high production capacity
  • Conical double-screw extruder, ideal for processing PVC powder efficiently

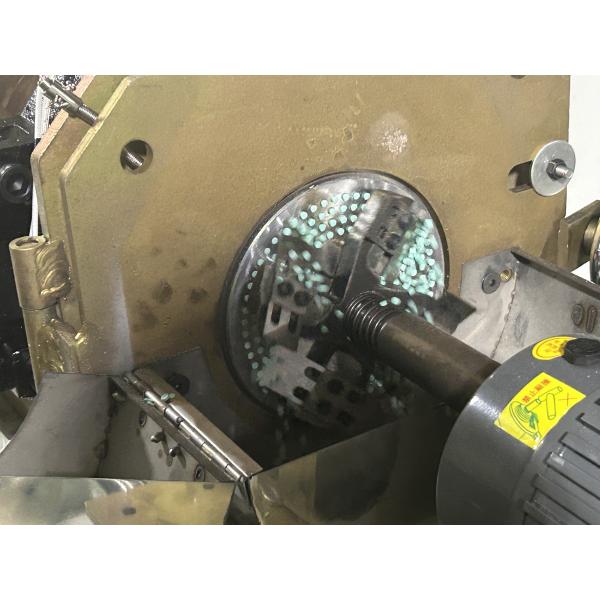

  • Hot-cutting on mold face ensures even cutting and consistent pellet shape

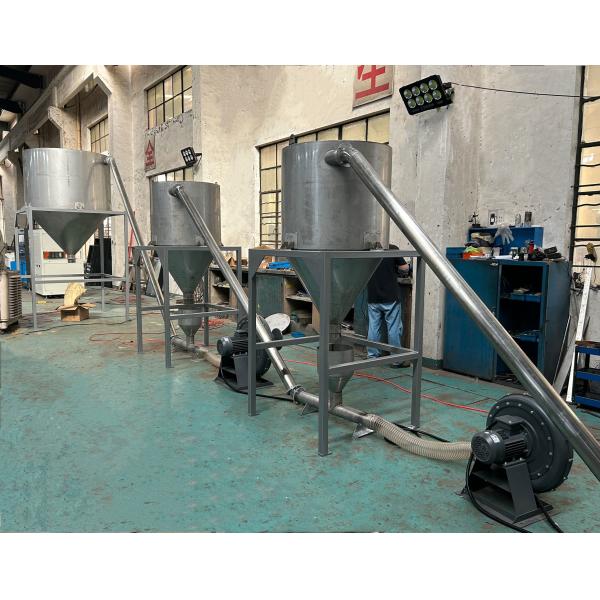

  • Complete auxiliary system including pellets cooling and classifying
Process Flow
Raw material + additive → Mixing → Conveying feeding → Hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technical Specifications
Model Number Screw Diameter (mm) Rotational Speed (rpm) Pellet Size (mm) Main Motor Power (kw) Heating Power (kw) Production Capacity (kg/h) Central Height (mm) Net Weight Overall Size (mm)
SJSZ45 45/90 1-45 3-4 15 9.6 70-80 1000 2800 3300*1200*2000
SJSZ51 51/105 1-45.5 3-4 22 11.5 80-120 1000 3000 3360*1290*2100
SJSZ55 55/110 1-40 3-4 22 18 150-180 1000 3500 3620*1350*2200
SJSZ65 65/132 1-38 3-4 37 24 250-300 1000 4000 4235*1520*2450
SJSZ80 80/156 1-36.9 3-4 55 36 320-450 1000 5000 4750*1550*2460
SJSZ92 92/188 1-34.7 3-4 110 88 650-800 1000 5500 6000*1600*2500
Product Images
Hot Cutting Plastic Pelletizing Machine Hot Cutting Plastic Pelletizing Machine Hot Cutting Plastic Pelletizing Machine Hot Cutting Plastic Pelletizing Machine Hot Cutting Plastic Pelletizing Machine
