Specifications
Brand Name :
LB
Model Number :
LB-630
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG, JIANGSU, CHINA
MOQ :
1 SET
Price :
Negotiable（USD EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Output Capacity :
400KG/H
Forming :
Vacuum Forming
Extruder Type :
Twin screw extruder
Center Height :
1000mm
Relay :
Schneider
Pipe Diameter :
160-315mm
Screw And Barrel :
Conical twin screw extruder
Pvc Pipe :
Squar pipe, and round pipe
Description
PVC Pipe Extrusion Line | High-Speed Production Customizable Pipe Sizes
Application

The belling machine is integrated with pipe extrusion production to manufacture socket ends for pipes in "U", "R", and rectangular configurations. The belling process occurs within a specialized belling room, utilizing vacuum shaping inside the core of the belling mold and external water cooling of the pipe to achieve precise socket dimensions.

Production Process Flow

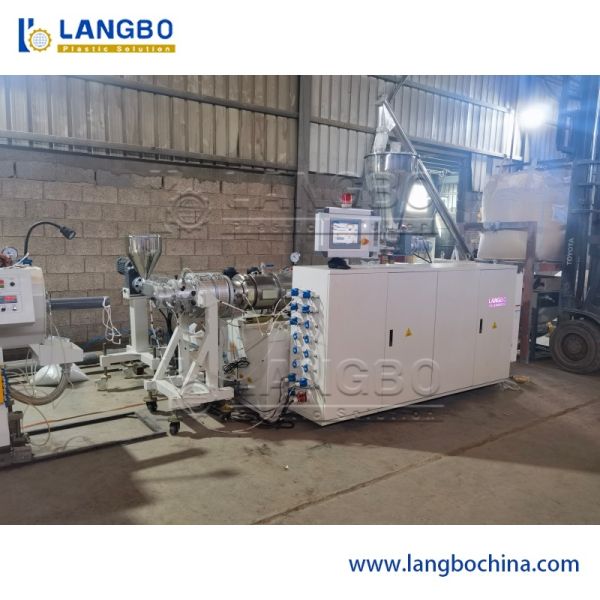

The pipe manufacturing process begins with raw material preparation. Customers can mix PVC powder with various additives according to their specifications. This mixture is then fed into the extruder, where it undergoes plasticization before being extruded into the mold.

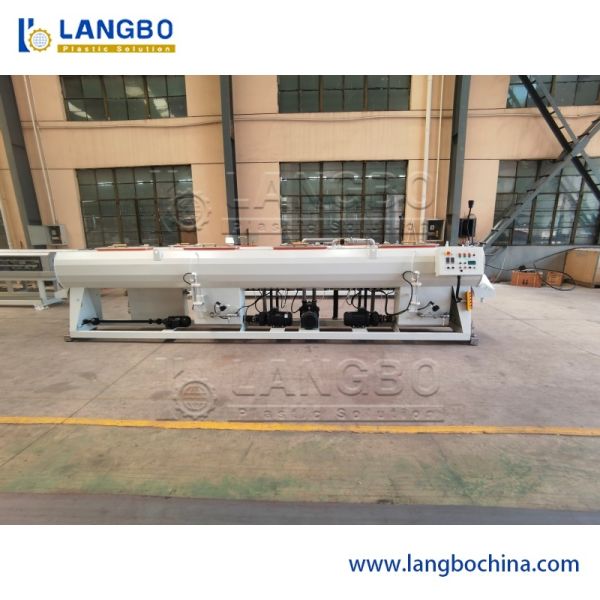

Within the mold, the material takes shape and emerges with the characteristic pipe form. The freshly extruded pipe remains hot and pliable, requiring stabilization through vacuum calibration in the vacuum sleeve calibration tank. Following this initial shaping, the pipe proceeds to the cooling tank for further temperature reduction.

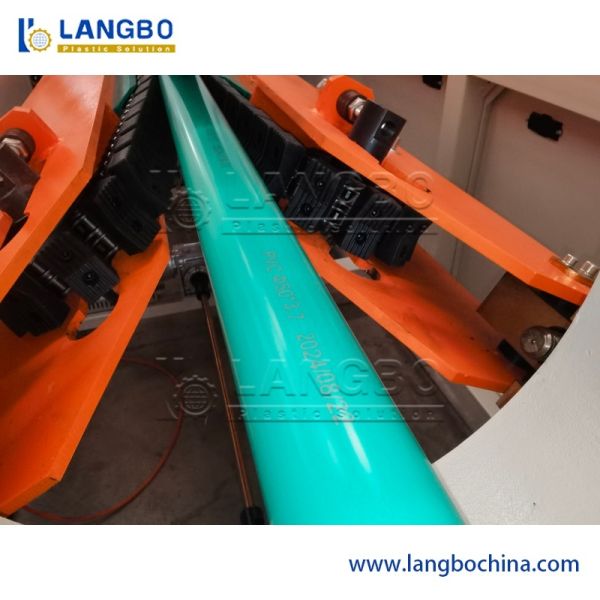

A haul-off unit positioned adjacent to the cooling tank continuously draws the pipe away from the extruder. Finally, the pipe is cut to specified lengths and prepared for packaging and transportation.

Key Advantages of PVC Pipe
  • Exceptional corrosion resistance
  • Self-extinguishing and flame retardant properties
  • Superior anti-aging characteristics
  • Lightweight construction with easy flaring, bonding, bending, and welding capabilities
  • Reduced installation workload and processing costs compared to metal pipes
  • Excellent electrical resistance properties
  • Fully recyclable and environmentally friendly
Product Images
PVC Pipe Extrusion Line | High-Speed Production Customizable Pipe Sizes PVC Pipe Extrusion Line | High-Speed Production Customizable Pipe Sizes PVC Pipe Extrusion Line | High-Speed Production Customizable Pipe Sizes PVC Pipe Extrusion Line | High-Speed Production Customizable Pipe Sizes
