HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
Specifications
Brand Name :
LB
Model Number :
LB-80/156
Certification :
CE / ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
negotiation（USD,EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Extrudertype :
Single Screw Extruder
Cutter :
Planetary cutter
Type :
SJ-65 SJ-90 SJ-65/33,Extrusion
Coolingmethod :
Water Cooling Tank
Pipe Diameter :
16-160MM
Screwdiameter :
45mm - 120mm
Production Speed :
1-10m/min
Heatingzones :
4 - 6 zones
Dragger :
crawling traction
Automatic Grade :
Full-automatic
Description
HDPE Pipe Extrusion Line | Uniform Wall Thickness Large Diameter

Our HDPE Pipe Extrusion Line specializes in producing multi-layer pipes with uniform wall thickness for large diameter applications. This advanced production line utilizes co-extrusion technology to create pipes with functional features while optimizing raw material costs.

Technical Overview

Multi-layer pipes are manufactured using co-extrusion pipe line technology. This specialized process enables significant raw material cost savings while producing pipes with enhanced functional characteristics.

  • Cost-effective production using recycled materials as middle layers for PE thick wall pipes
  • Versatile layer configurations including PP-R layers and structural enhancements like glass fiber reinforcement
  • Ideal for hot water supply pipes requiring specialized material properties
Application Scenarios

PE pipe extrusion lines are engineered for diverse applications including:

  • Water supply systems
  • Gas distribution networks
  • Agricultural irrigation
  • Drainage systems
  • Cable conduits
  • Industrial piping applications

These lines process PE100/PE80 materials with diameters ranging from 16-1200mm, offering excellent chemical resistance, high strength, and consistent quality. All systems comply with ISO and ASTM standards, making them suitable for various infrastructure and industrial applications.

Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kW) Capacity (kg/hr)
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350

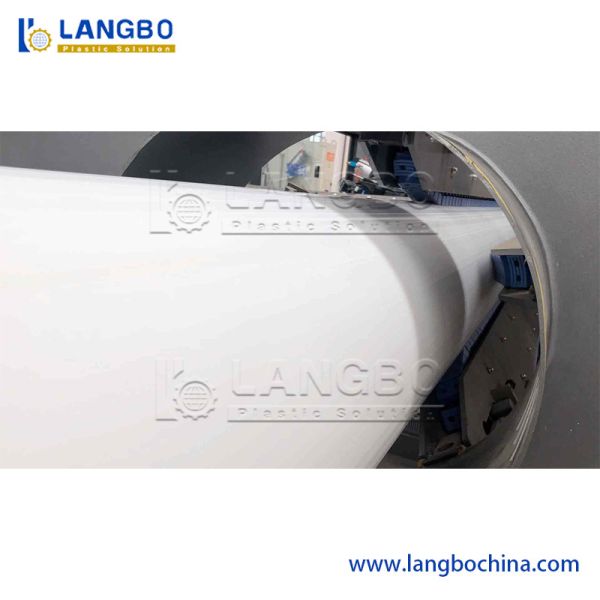

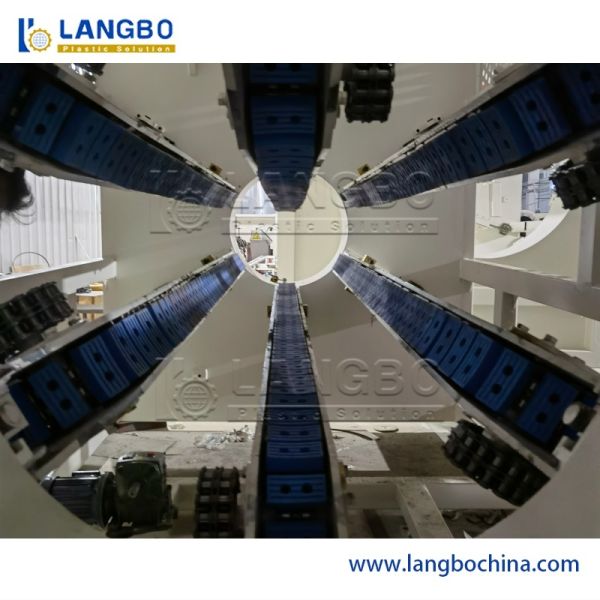

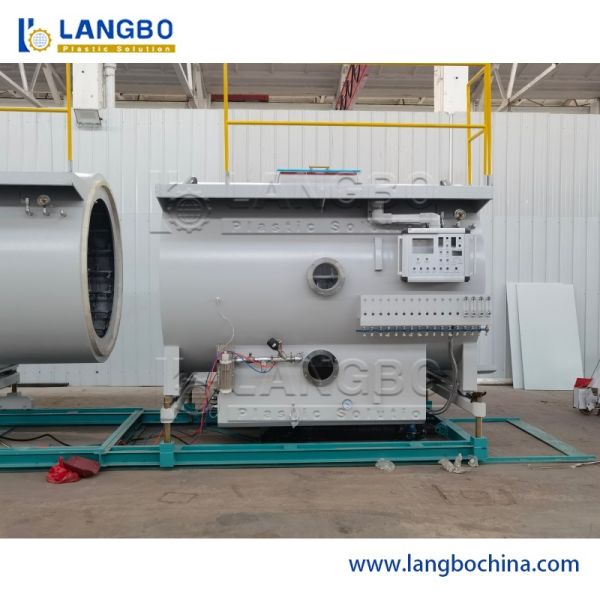

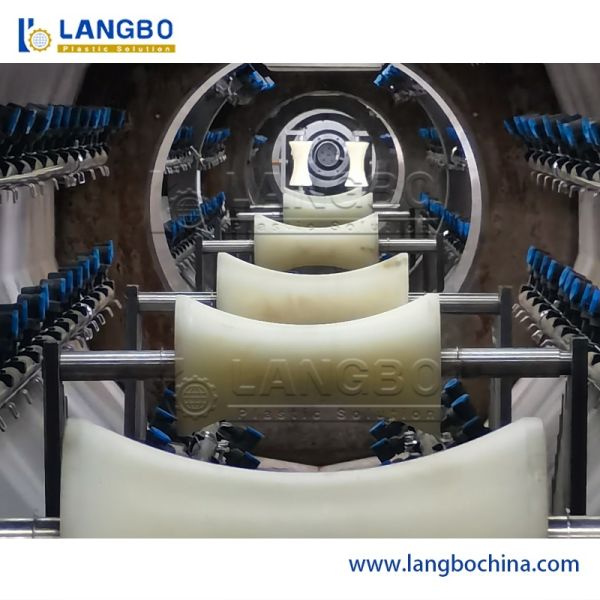

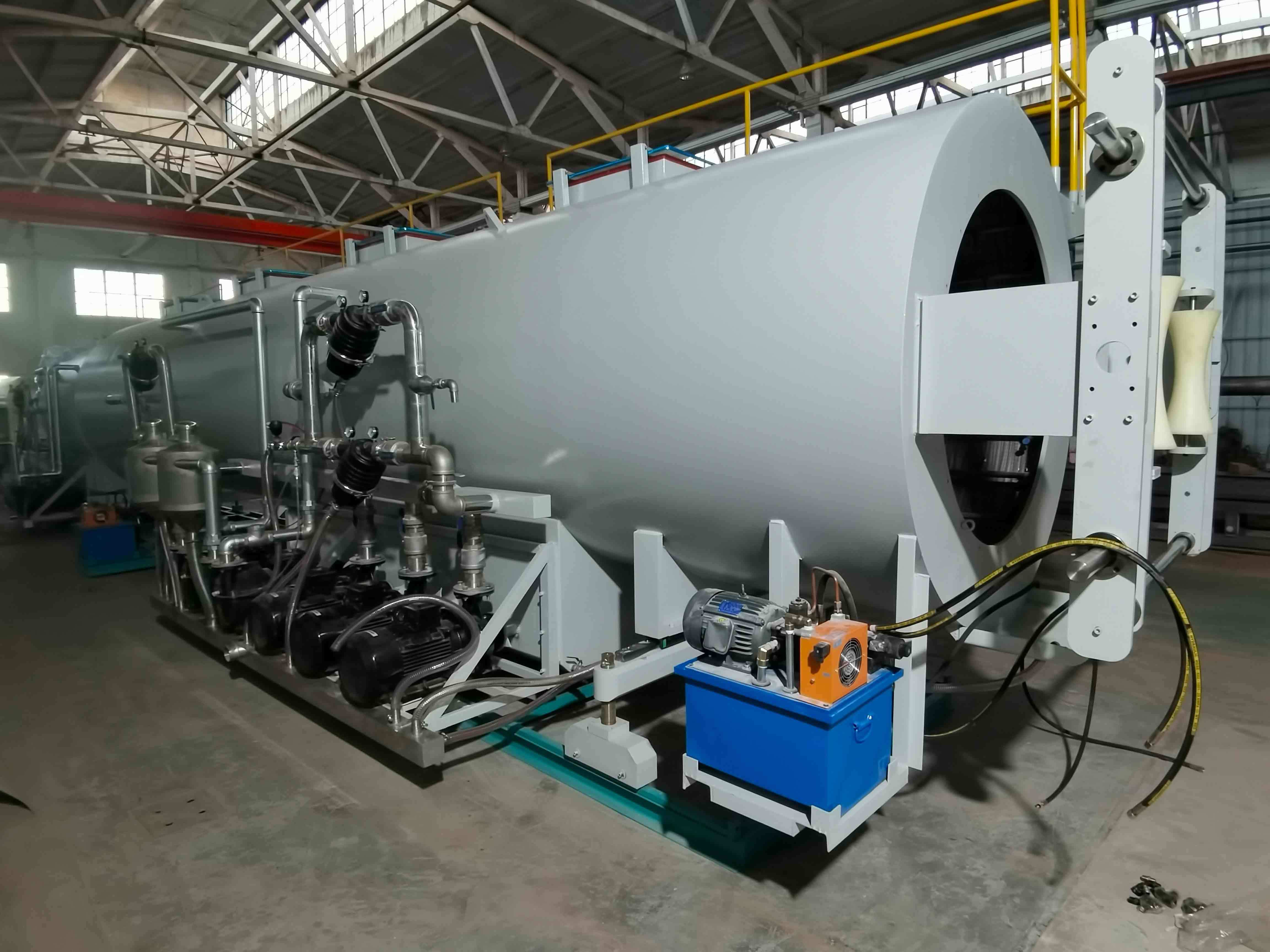

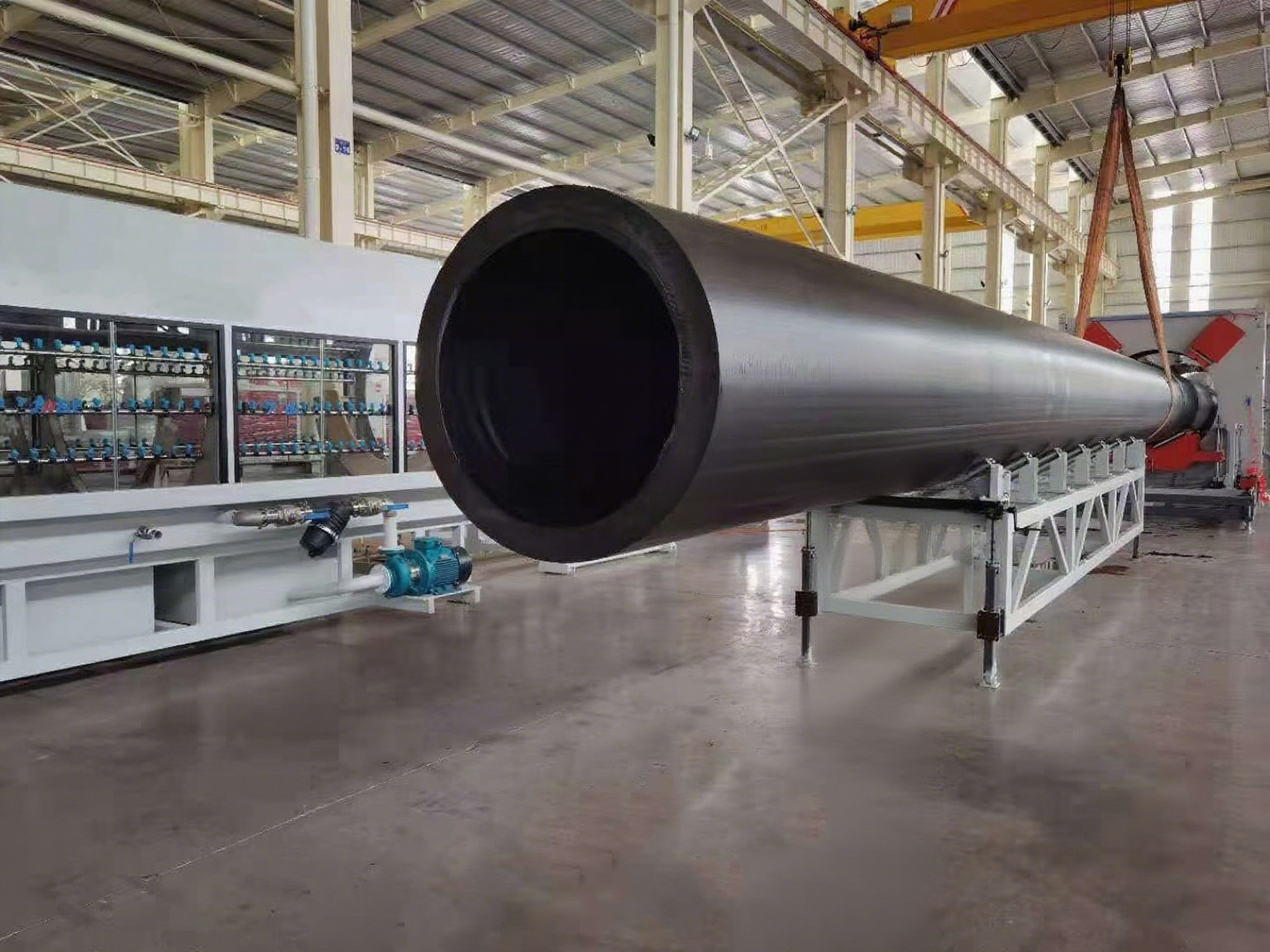

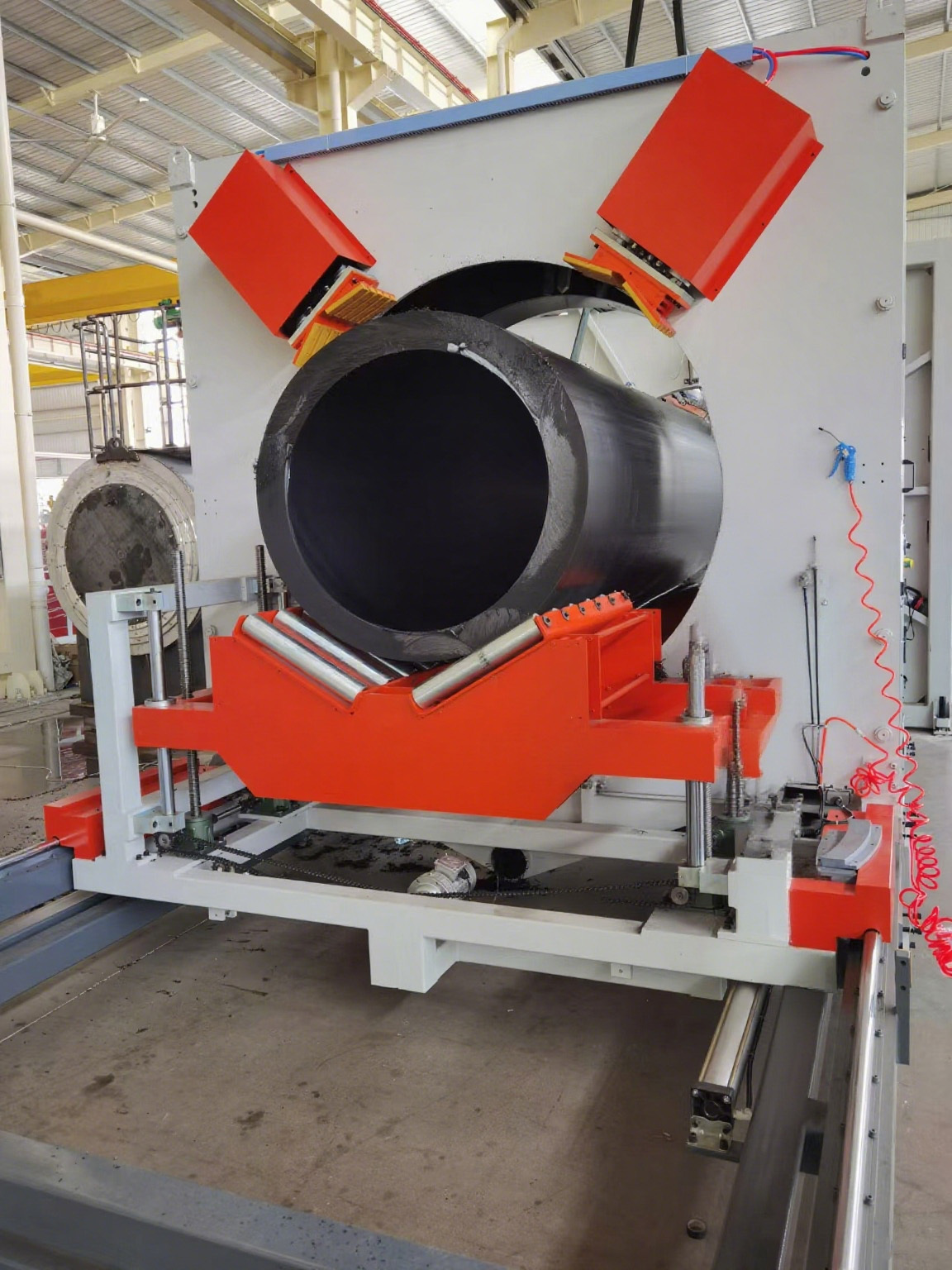

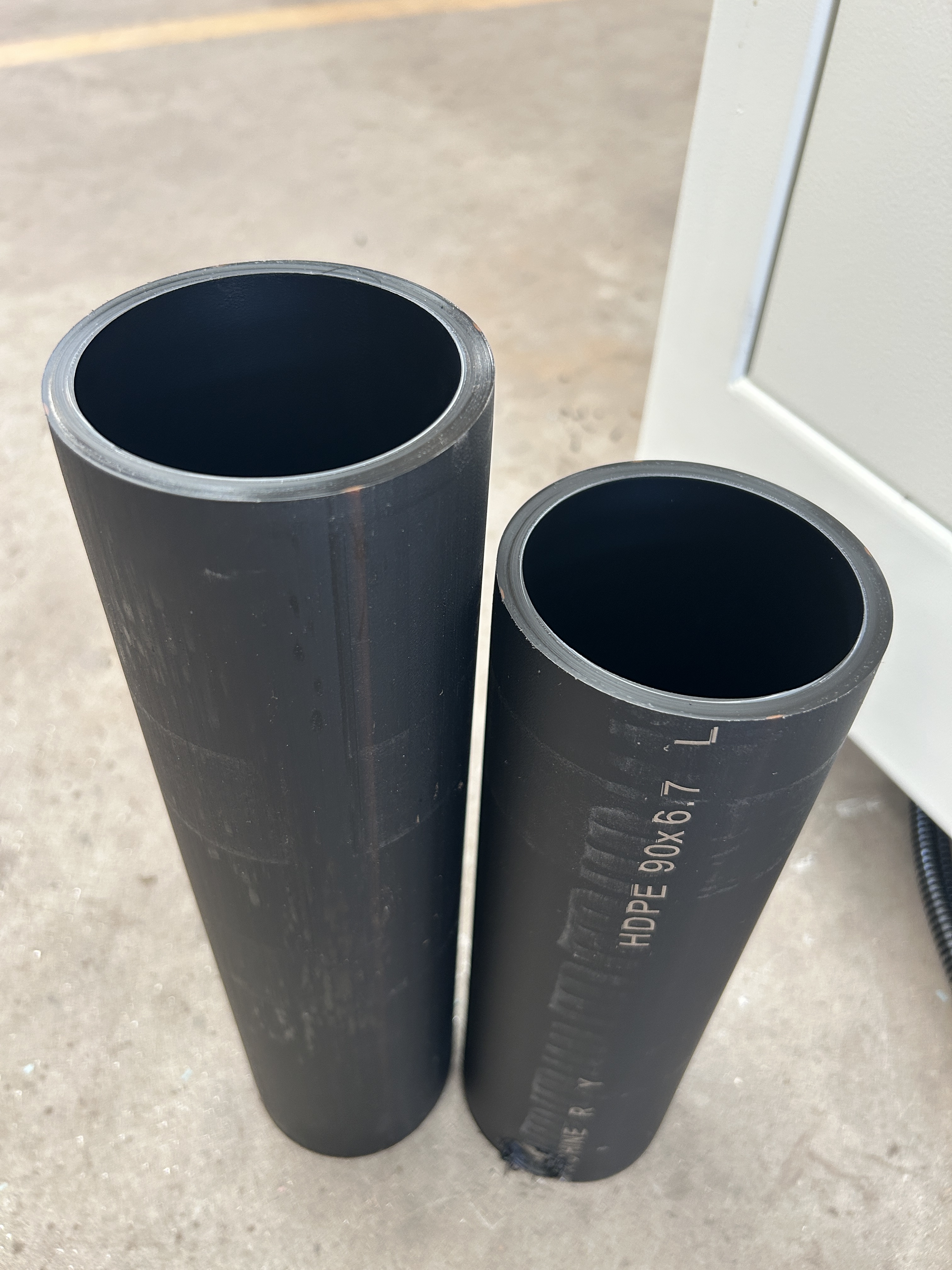

Product Images
HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter HDPE Pipe Extrusion Line| Uniform Wall Thickness Large Diameter
