PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
Specifications
Brand Name :
LB
Model Number :
LB-32
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 SET
Price :
Negotiable（USD EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
30 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Extruder Type :
Conical twin screw extrusion machine
Center Height :
1000mm
Product Type :
PVC/PE Pipe
Motor Power :
75 Kw
Warranty :
18 months since the machine shipped
Packages :
Film and boxes
Colour :
CUSTOMIZED
Screw No :
Twin-screw
Usage :
extrusion line
Machinery Test Report :
Provided
Screw Speed :
0-60rpm
Automation :
Automatic
Description
PVC/PE Threading Machine | Customizable Thread Pitch Suitable For Various Pipe Specifications

This machine is specialized equipment designed for cutting external threads on pre-extruded PVC, PE, or PP pipes. It is typically used after the extrusion process, providing precise and clean thread profiles for pipe connections, couplings, and fittings.

With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.

Technical Features
  • High Precision Threading Cutting - Special thread-cutting tools provide uniform and accurate threads with clean edges
  • CNC / PLC Control System - Intelligent control for adjustable speed, pitch, and cutting depth ensures consistent results
  • Universal Pipe Clamping System - Adaptable to various pipe diameters and materials without frequent adjustments
  • Automatic Centering and Feeding - Servo-driven feeding ensures stable rotation and precise positioning during threading
  • Durable and Low-Noise Operation - Heavy-duty base and vibration-damping structure enhance machining stability
  • User-Friendly Interface - Touch screen operation with multiple preset thread standards
Specifications
Parameter Specification
Pipe Diameter Range 16-160 mm (customizable)
Applicable Materials PVC, PE, PP
Thread Type Metric, BSP, NPT, Custom
Max. Thread Length 20-100 mm
Spindle Speed 200-1200 rpm (adjustable)
Clamping System Pneumatic / Mechanical adjustable chuck
Feeding System Servo motor controlled feed
Machine Composition

Main Machine Base: Rigid welded structure for stable operation

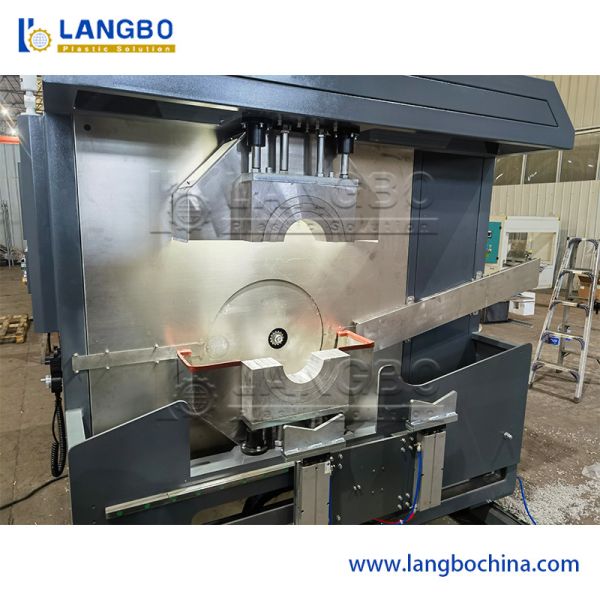

Pipe Clamping Device: Automatically centers and holds pipes securely

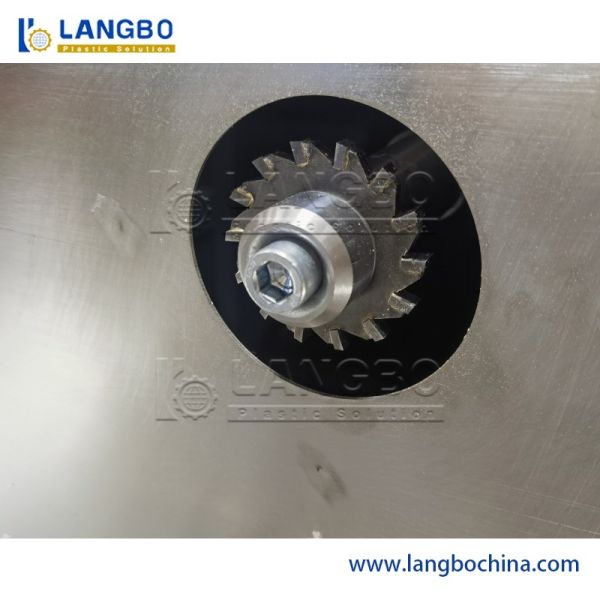

CNC Thread Cutting Head: Precisely cuts external threads according to set pitch and depth

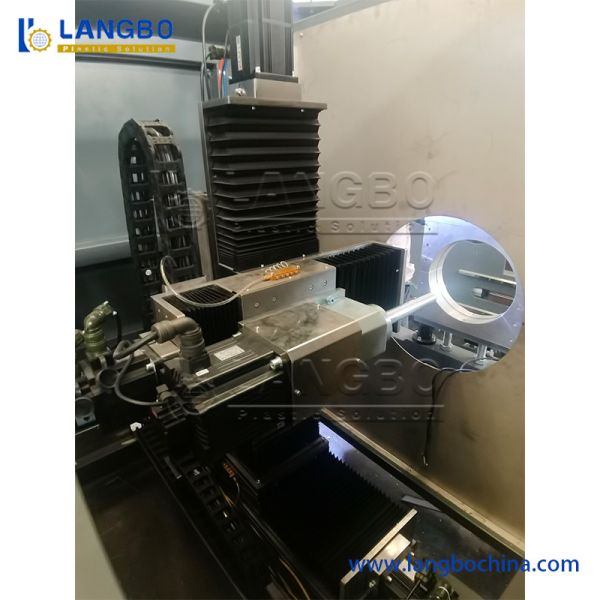

Servo Feeding Unit: Controls the linear feed of the cutting tool

Cooling / Lubrication System: Extends tool life and ensures smooth cutting

Control Panel: Touch screen or CNC system for full parameter adjustment

Our Advantages
  • Precise Thread Forming - CNC-controlled cutting head guarantees accurate thread pitch, depth, and alignment, ensuring perfect fit between pipe and fittings
  • Wide Material Compatibility - Suitable for various thermoplastics such as PVC, PE, and PP, with adjustable cutting parameters to match different material hardness and wall thickness
  • Stable and Durable Structure - Heavy-duty machine bed and vibration-resistant frame ensure stable operation even under long-term continuous use
  • Low Maintenance Requirement - Robust mechanical components and automatic lubrication reduce wear and simplify routine service
Product Images

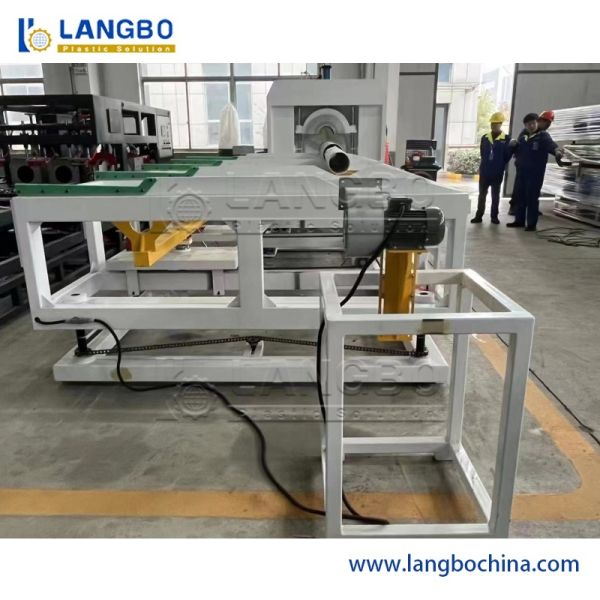

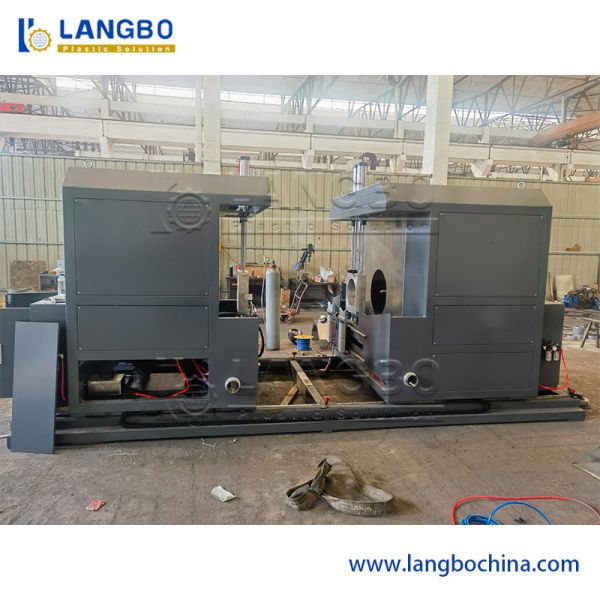

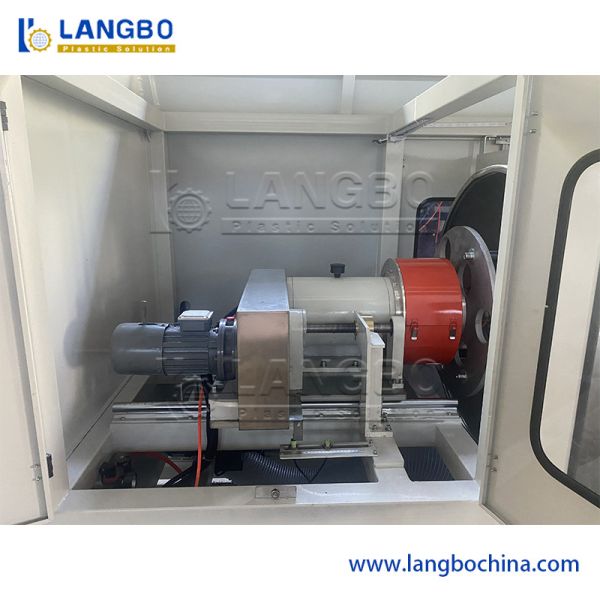

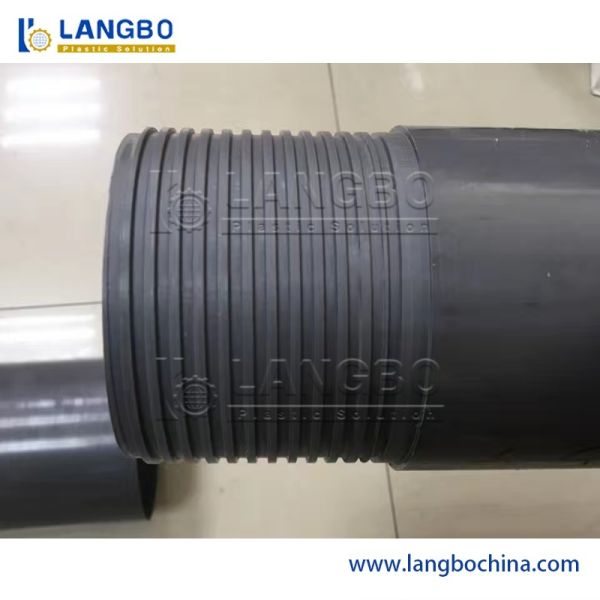

PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
